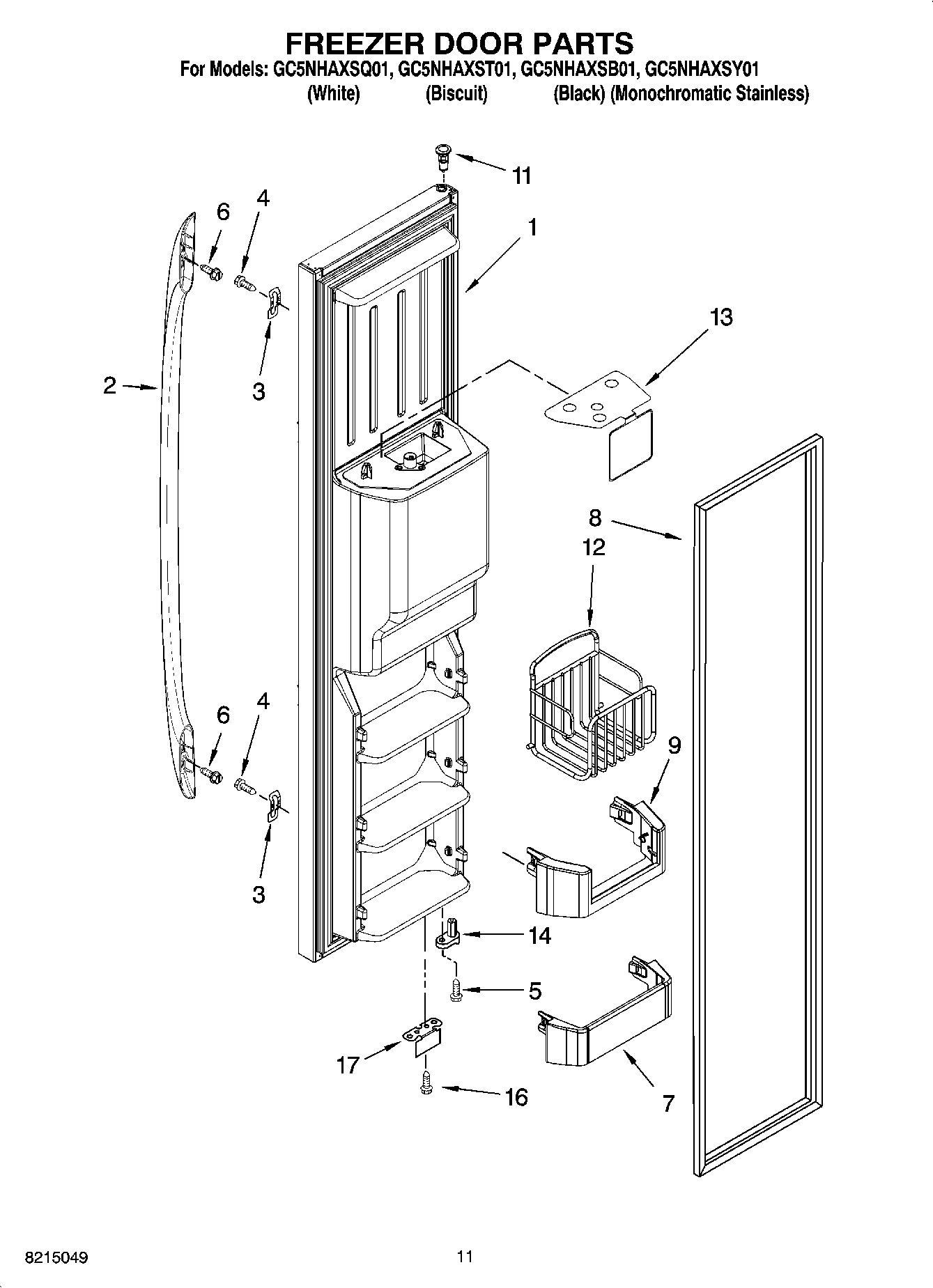

GC5NHAXSY01 07 – FREEZER DOOR PARTS

Products

Position	Product
	Bracket, Door Stop Following Parts Not Illustrated (Wire Assembly, Freezer Door)
	Bracket, Door Stop Following Parts Not Illustrated (Tube, Door)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2	Handle (White)
2	Handle (Universal Silver)
2	Handle (Biscuit)
2	Handle (Black)
3	WP2255411 Whirlpool Refrigerator Clip
4	WP489491 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	SCREW
7	WP2171157 Whirlpool Shelf Trim
8	Door Gasket, Magnetic (Mist Beige)
8	2306995 Whirlpool Refrigerator Door Gasket
9	TRIVET, TILT-OUT
11	Thimble, Top (For Stainless Steel Models)
12	Basket, Tilt Out
13	Safety Barrier
14	Door Closer, Upper Cam
16	WP489483 Whirlpool Screw
17	2306940 Whirlpool Refrigerator Bracket
17	2306940B Whirlpool Refrigerator Bracket
