GC5NHAXSY02 07 – FREEZER DOOR PARTS
Written by
in

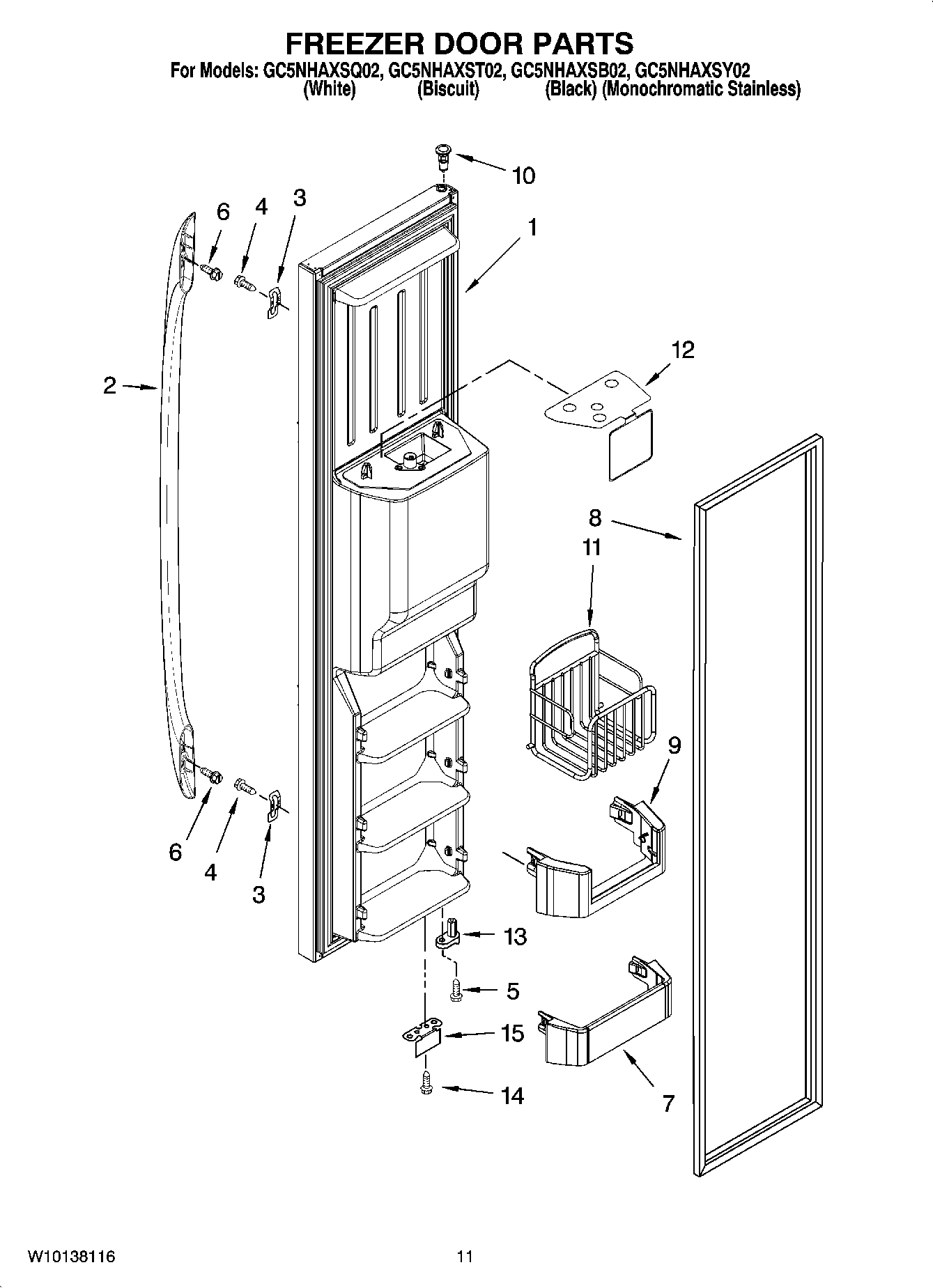

GC5NHAXSY02 07 – FREEZER DOOR PARTS
Products
Position
Product
Bracket, Door Stop Following Parts Not Illustrated (Wire Assembly, Freezer Door)
Following Parts Not Illustrated
Bracket, Door Stop Following Parts Not Illustrated (Tube, Door)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1
Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2
Handle (White)
2
Handle (Universal Silver)
2
Handle (Biscuit)
2
Handle (Black)
3
WP2255411 Whirlpool Refrigerator Clip
4
WP489491 Whirlpool Refrigerator Screw
5
WP3400012 Whirlpool Refrigerator Screw
6
SCREW
7
WP2171157 Whirlpool Shelf Trim
8
Door Gasket, Magnetic (Apollo Grey)
8
2306995 Whirlpool Refrigerator Door Gasket
8
Door Gasket, Magnetic (Mist Beige)
9
TRIVET, TILT-OUT
10
Thimble, Top (For Stainless Steel Models)
11
Basket, Tilt Out
12
Safety Barrier
13
Door Closer, Upper Cam
14
WP489483 Whirlpool Screw
15
2306940 Whirlpool Refrigerator Bracket
15
2306940B Whirlpool Refrigerator Bracket
←
