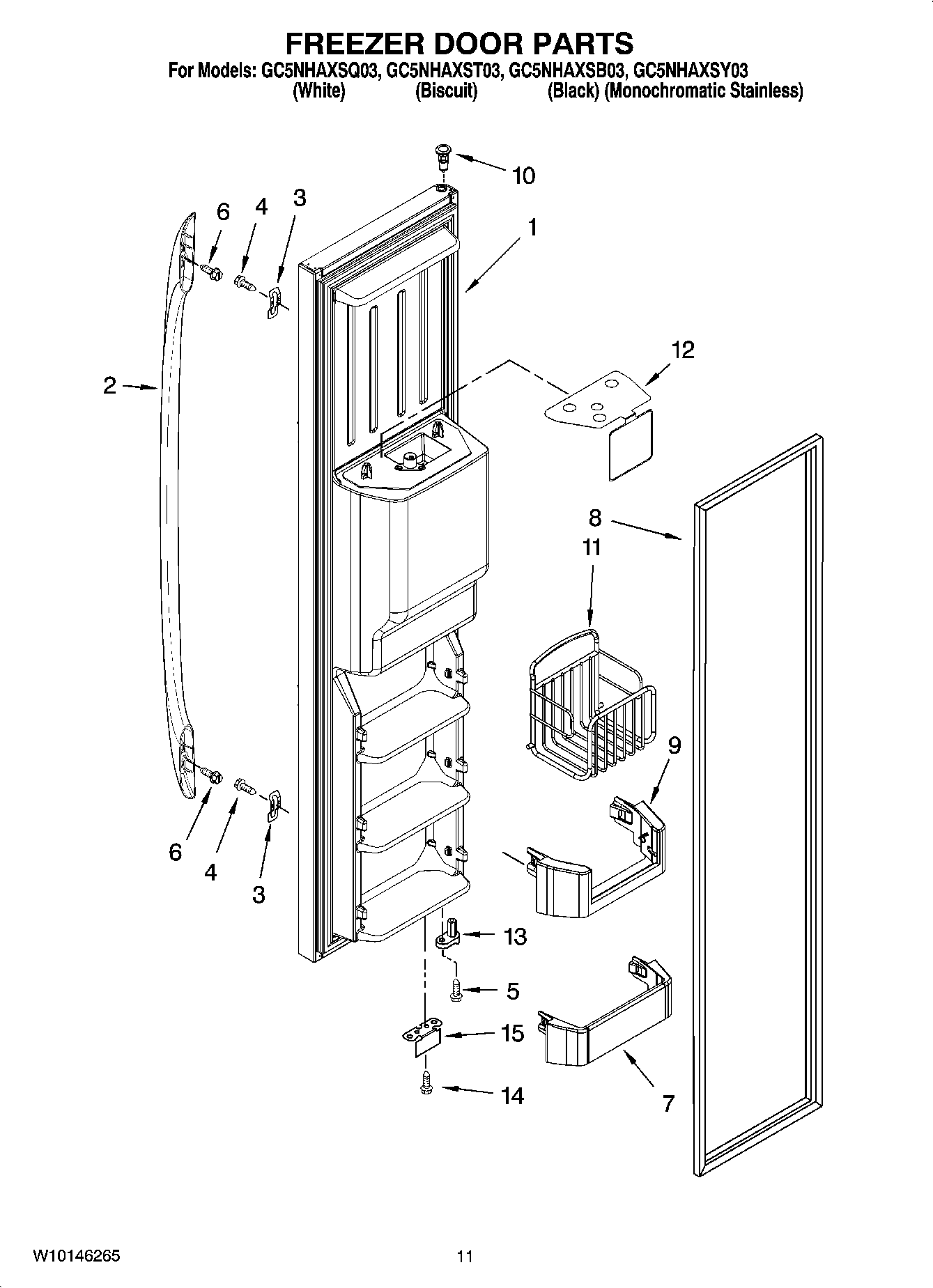

GC5NHAXSY03 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
2	Handle (Universal Silver)
2	Handle (Biscuit)
2	Handle (Black)
2	Handle (White)
3	WP2255411 Whirlpool Refrigerator Clip
4	WP489491 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	SCREW
7	WP2171157 Whirlpool Shelf Trim
8	Door Gasket, Magnetic (Mist Beige)
8	Door Gasket, Magnetic (Apollo Grey)
8	2306995 Whirlpool Refrigerator Door Gasket
9	TRIVET, TILT-OUT
10	Thimble, Top (For Stainless Steel Models)
11	Basket, Tilt Out
12	Safety Barrier
13	Door Closer, Upper Cam
14	WP489483 Whirlpool Screw
15	2306940B Whirlpool Refrigerator Bracket
15	2306940 Whirlpool Refrigerator Bracket
15	Bracket, Door Stop Following Parts Not Illustrated (Wire Assembly, Freezer Door)
15	Bracket, Door Stop Following Parts Not Illustrated (Tube, Door)
