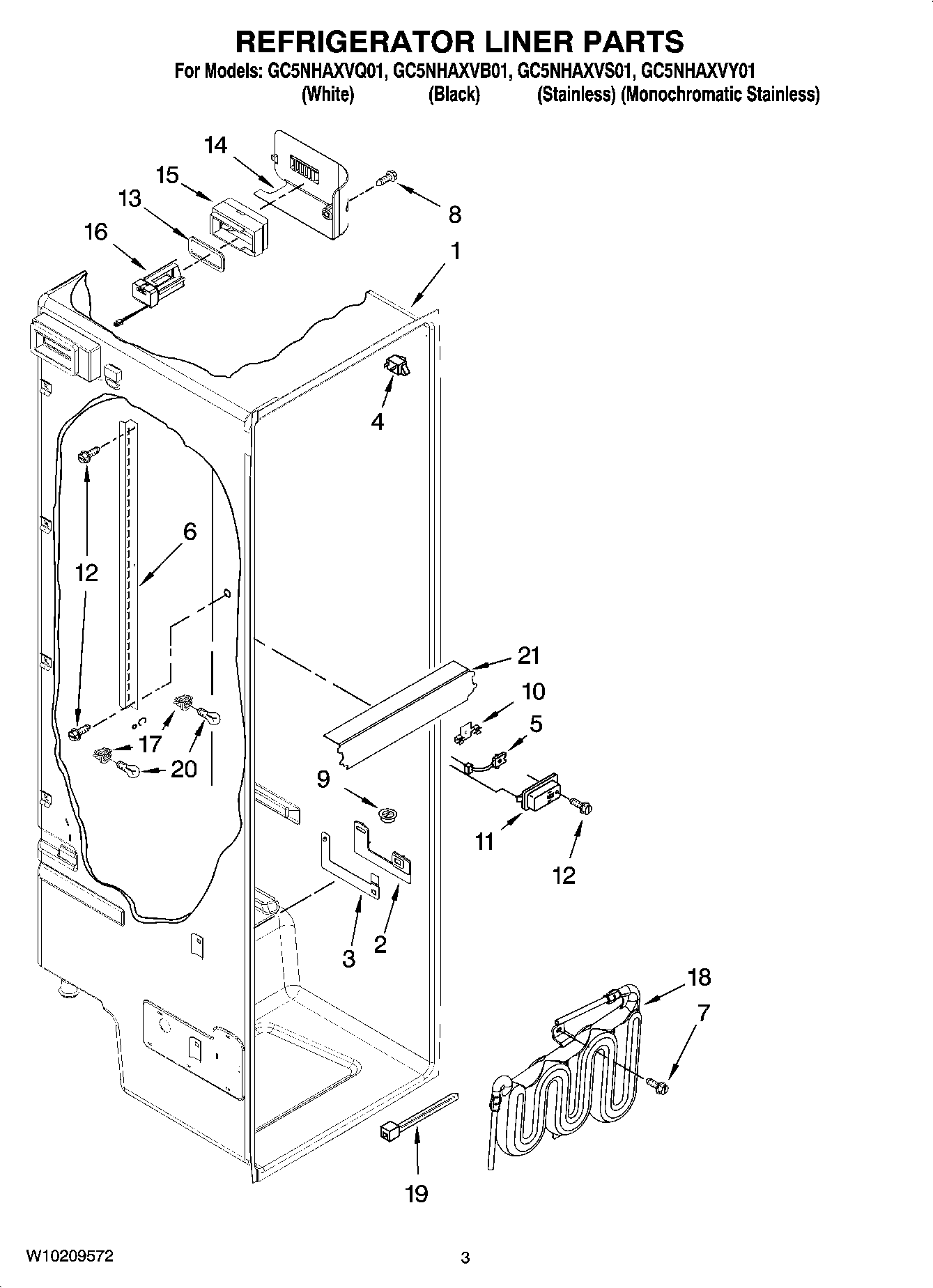

GC5NHAXVQ01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
4	W11384469 Whirlpool Door Switch
5	WP2188820 Whirlpool Refrigerator Thermistor
6	Ladder, Shelf (2)
7	Screw (2)
9	2171846 Whirlpool Refrigerator Release Valve
10	Clip, Thermistor
11	1116793 Whirlpool Refrigerator Cover
12	WP489478 Whirlpool Refrigerator Screw
13	Gasket, Air Baffle
14	COVER, AIR DIFFUSER
15	ASSEMBLY, AIR DIFFUSER
16	WP2220377 Whirlpool Refrigerator Air Baffle
17	4387478 Whirlpool Refrigerator Light Socket
18	RESERVOIR
19	WP2205813 Whirlpool Refrigerator Wire Tie
20	RANGE ONLY 40W 120V APPL BULB
21	LENS, LIGHT
