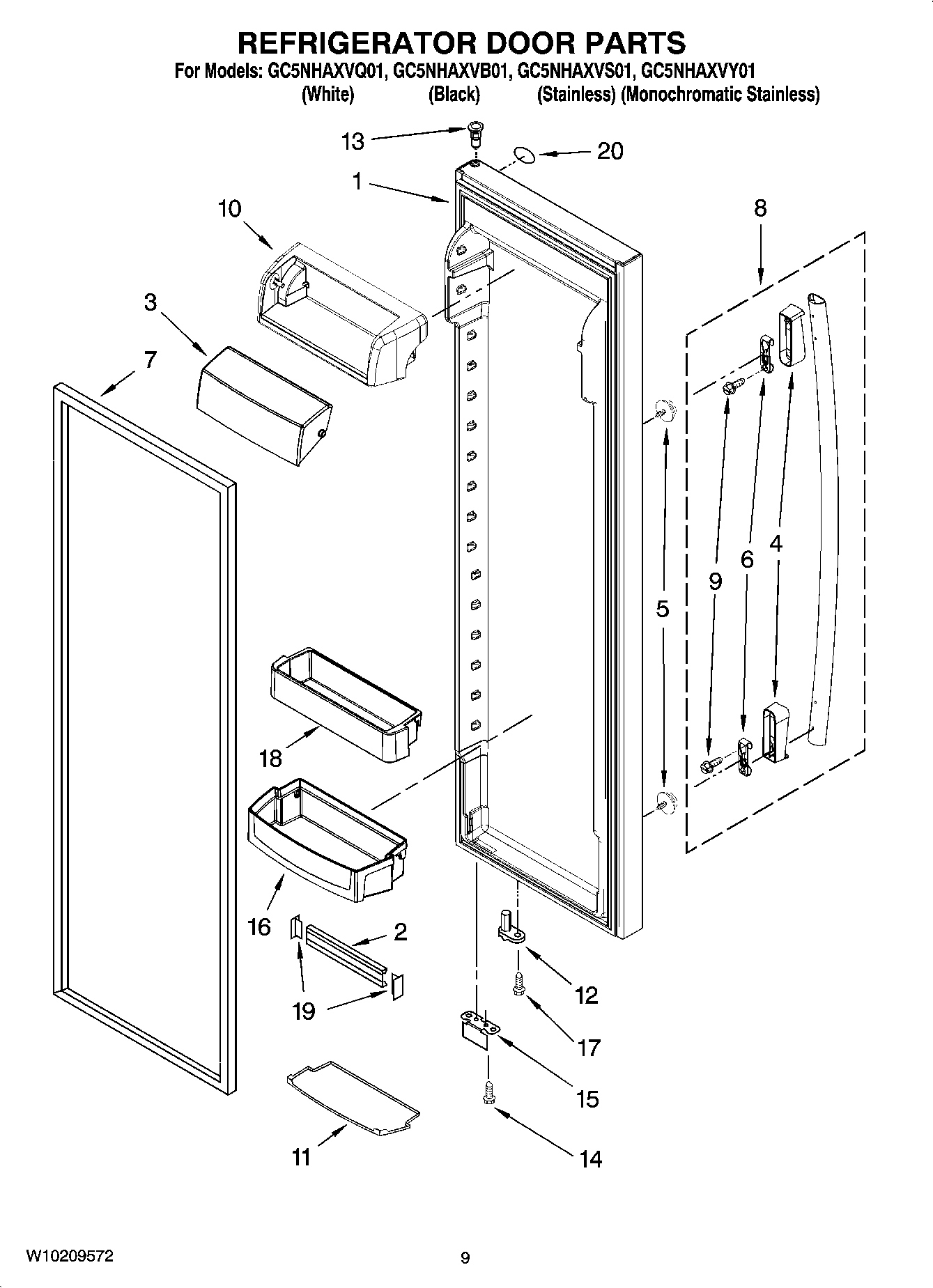

GC5NHAXVQ01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (STAINLESS)
1	DOOR, REFRIGERATOR (WHITE)
1	DOOR, REFRIGERATOR (BLACK)
1	DOOR, REFRIGERATOR (MONO STAINLESS)
2	Trim, Shelf
3	Dairy Door
4	W10127813 Whirlpool Refrigerator Handle Endcap
4	Handle, Endcap (Stainless, All)
4	Handle, Endcap (Black)
5	WPW10288153 Whirlpool Refrigerator Screw
6	WP2255411 Whirlpool Refrigerator Clip
7	2306992 Whirlpool Refrigerator FIP Gasket
7	2306996 Whirlpool Refrigerator Door Gasket
7	W10136737 Whirlpool Refrigerator FIP Gasket
8	W10273556 Whirlpool Refrigerator Handle
8	W10210943A Whirlpool Refrigerator Handle
8	W10210942A Whirlpool Refrigerator Handle
9	WP8533988 Whirlpool Screw Fastener
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	Mat, Bin (2)
12	CLOSER, DOOR
13	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	2306940B Whirlpool Refrigerator Bracket
15	2306940 Whirlpool Refrigerator Bracket
16	Door Bin (3)
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
19	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
20	Nameplate
