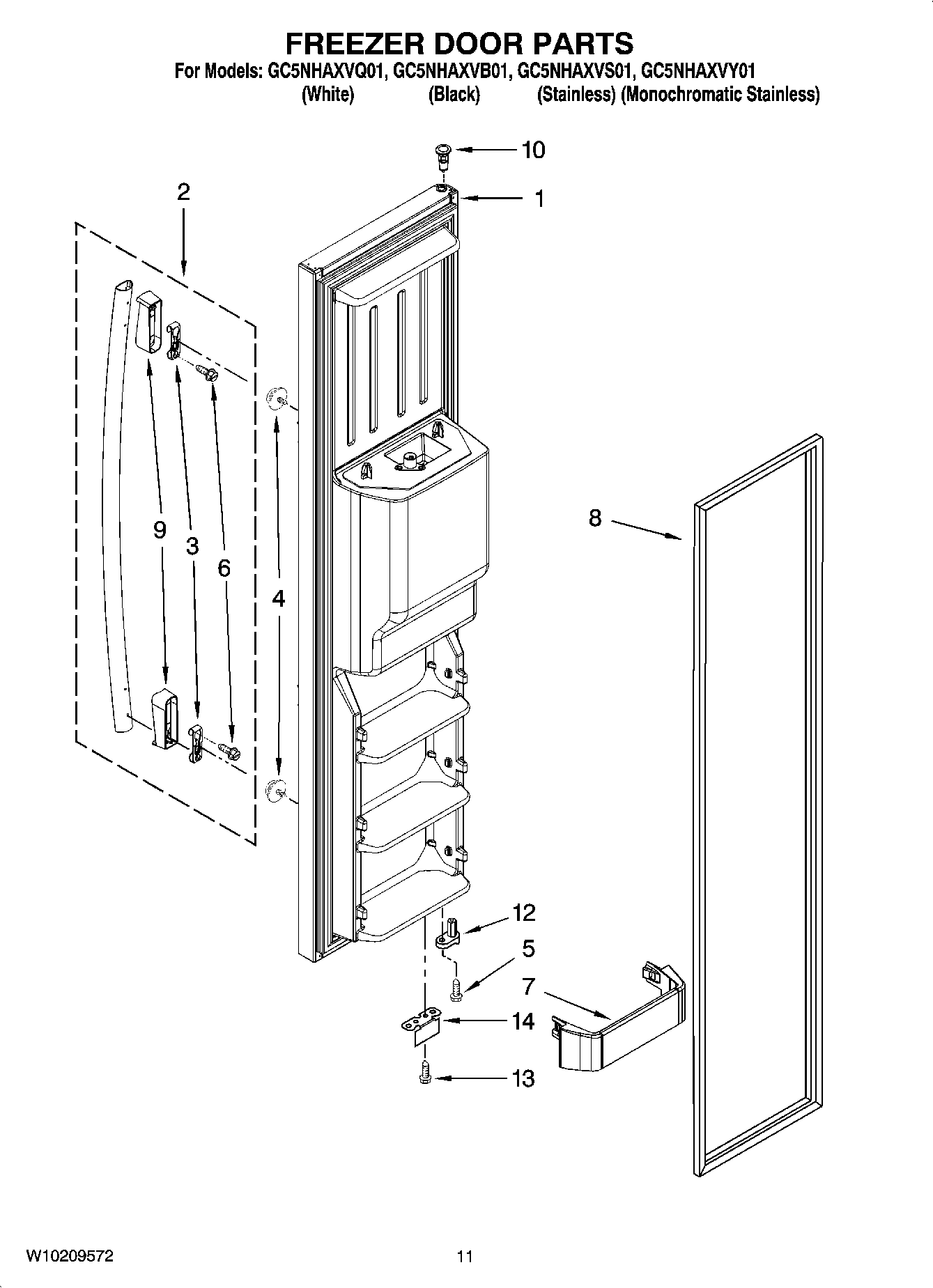

GC5NHAXVQ01 07 – FREEZER DOOR PARTS

Products

Position	Product
	Bracket, Door Stop Following Parts Not Illustrated (Tube, Door)
	Bracket, Door Stop Following Parts Not Illustrated (Wire Assembly, Freezer Door)
	Following Parts Not Illustrated
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
2	W10273556 Whirlpool Refrigerator Handle
2	W10210943A Whirlpool Refrigerator Handle
2	W10210942A Whirlpool Refrigerator Handle
3	WP2255411 Whirlpool Refrigerator Clip
4	WPW10288153 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WP8533988 Whirlpool Screw Fastener
7	WP2171157 Whirlpool Shelf Trim
8	Door Gasket, Magnetic (Apollo Grey)
8	Door Gasket, Magnetic (Mist Beige)
8	2306995 Whirlpool Refrigerator Door Gasket
9	W10127813 Whirlpool Refrigerator Handle Endcap
9	Handle, Endcap (Black)
9	Handle, Endcap (Stainless, All)
10	WP2182181 Whirlpool Refrigerator Thimble
12	Door Closer, Upper Cam
13	WP489483 Whirlpool Screw
14	2306940 Whirlpool Refrigerator Bracket
14	2306940B Whirlpool Refrigerator Bracket
