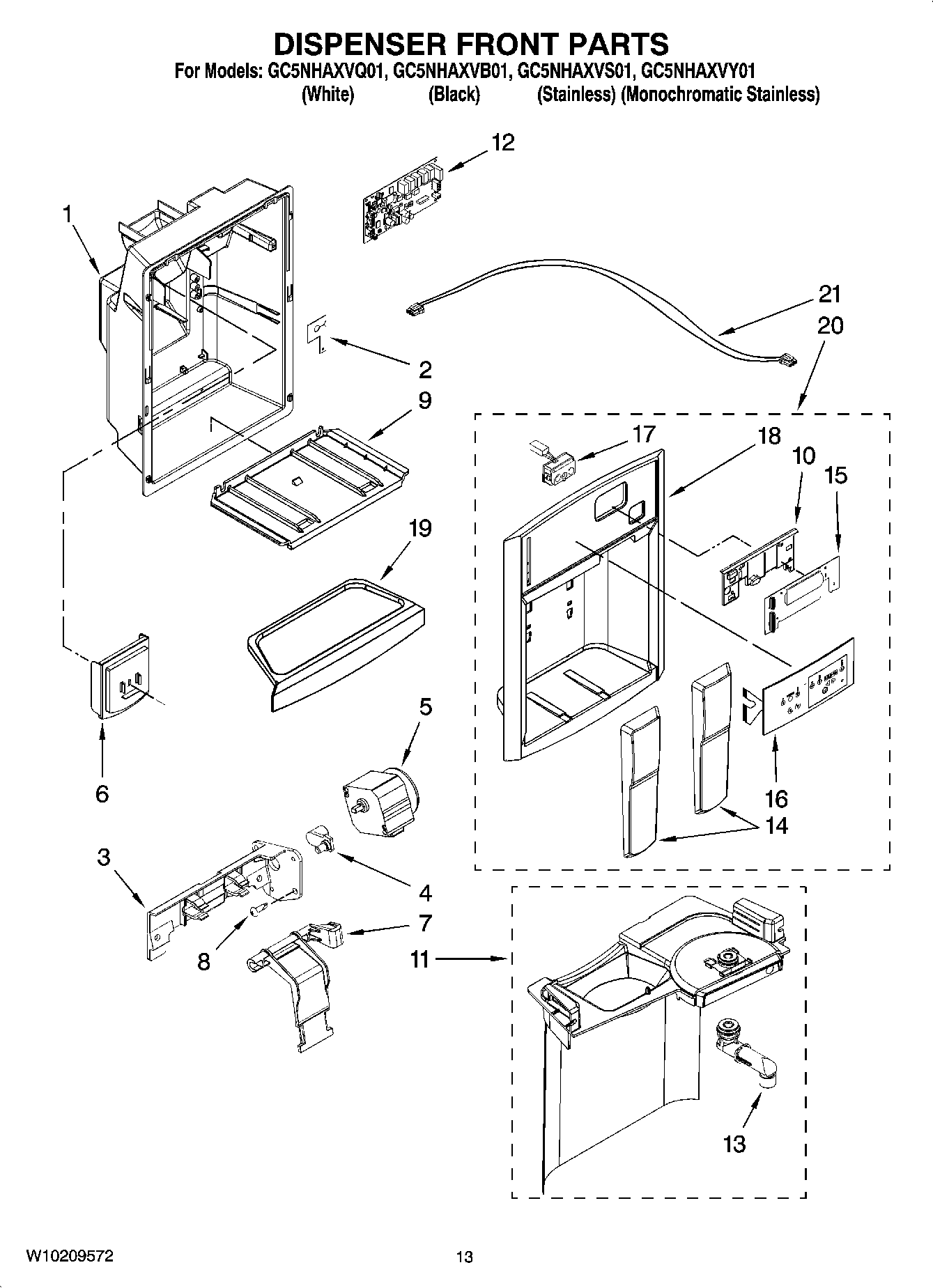

GC5NHAXVQ01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	2305447 Whirlpool Refrigerator Clip
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Apollo Gray)
9	Grille, Slide (Black)
9	Grille, Slide (White)
10	2305219 Whirlpool Refrigerator Cover
11	Separator Assembly (Nickel Alloy)
11	Separator Assembly (White)
11	Separator Assembly (Black)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	WP2305235 Whirlpool Refrigerator Spigot
14	Pad, Ice & Water (For White Model)
14	Pad, Ice & Water (For Black Model)
14	Pad, Ice & Water (For Monochromatic Stainless Model)
15	Cover Assembly, Electronic Control
16	Overlay, Front Cover (Not Available, Order 20)
17	LED Assembly
18	Front Cover, Housing (Not Available, Order 20)
19	Tray, Housing (White)
19	Tray, Housing (Nickel One)
19	Tray, Housing (Black)
20	Front Cover Assembly (Includes Items 17, 18, 19, 20 & 21) (Black)
20	Front Cover Assembly
20	Front Cover Assembly (Includes Items 14, 15, 16, 17 & 18) (Nickel One)
21	W10178851 Whirlpool Refrigerator Jumper Wire
