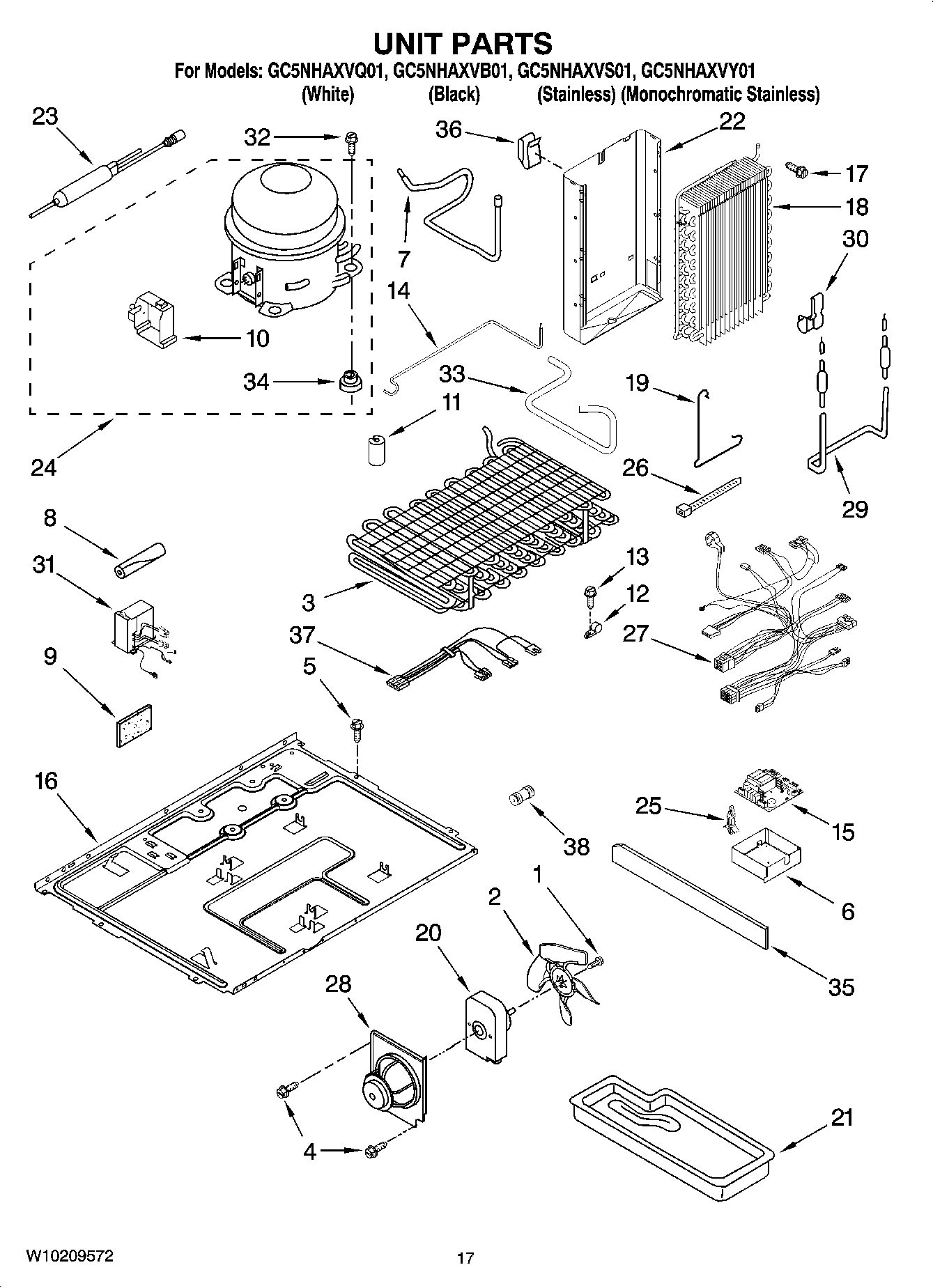

GC5NHAXVQ01 11 – UNIT PARTS

GC5NHAXVQ01 11 – UNIT PARTS

Written by

in

GC5NHAXVQ01 11 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	WPW10171469 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	2215676 Whirlpool Refrigerator Terminal Cover
11	W10852725 Whirlpool Refrigerator Grommet
12	WPL 2305373
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	W10858105 Whirlpool Refrigerator Tube
15	W10219463 Whirlpool Control Board + Core
16	Baseplate
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	Tray, Evaporator
22	SHIELD, HEAT
23	WPW10143759 Whirlpool Dryer Filter
24	W10276644 Whirlpool Refrigerator Compressor
25	2223800 Whirlpool Refrigerator Spacer
26	WPW10339879 Whirlpool Wire Tie
27	WP2310122 Whirlpool Refrigerator Wire Harness
28	BRACKET, FAN MOUNTING
29	Heater, Defrost
30	W11623163 Whirlpool Refrigerator Clip
33	WPW10154805 Whirlpool Refrigerator Inverter Box
34	876811 Whirlpool Grommet
34	Grommet (4) (Service)
35	2223394 Whirlpool Extension
36	Clip, Heat Shield
37	2310121 Whirlpool Refrigerator Wire Harness
38	WP2300868 Whirlpool Refrigerator Fitting
