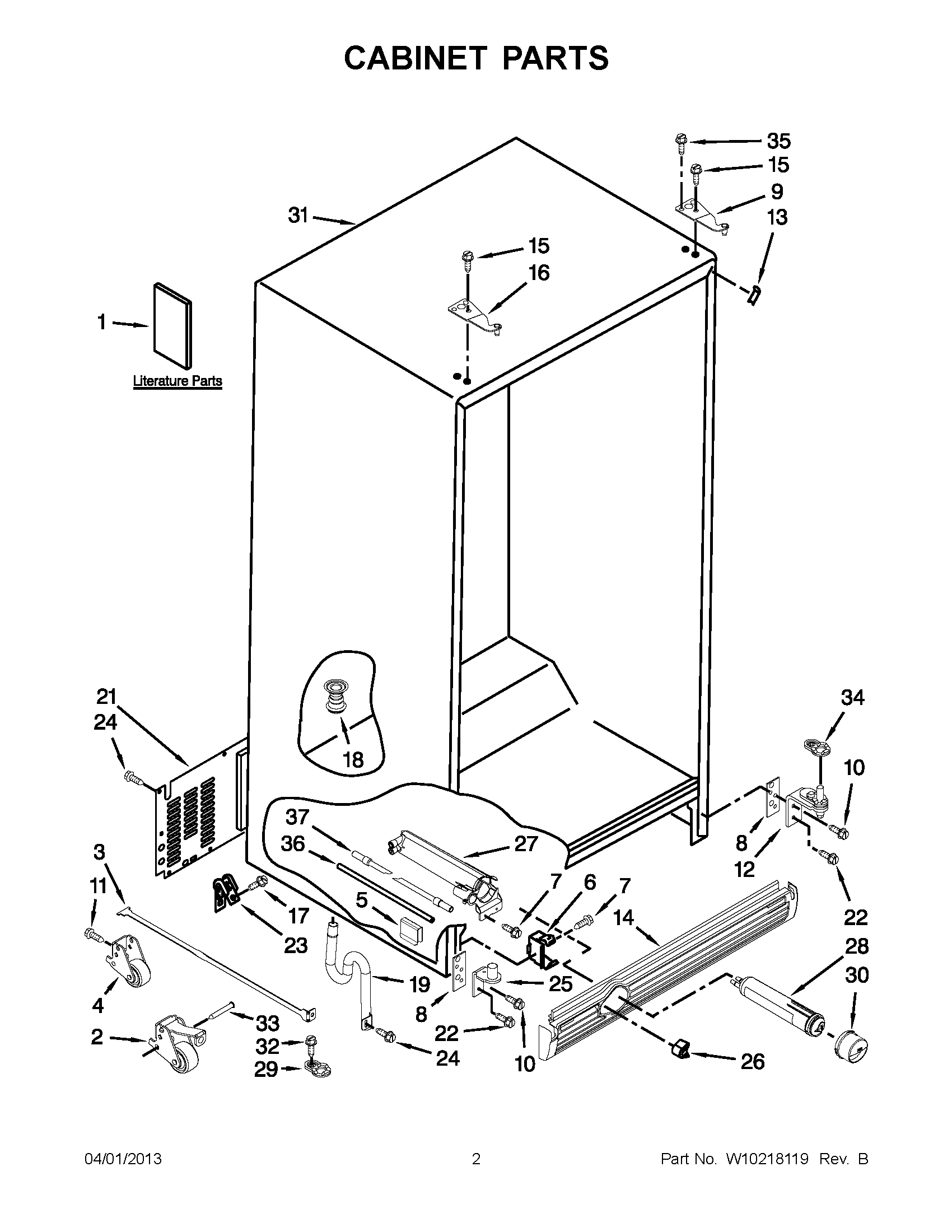

GC5SHAXVA00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE AND WIRING SHEET ENERGY GUIDE
1	Energy Guide
1	Installation Instructions
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	ASSEMBLY, FRONT ROLLER (RIGHT HAND)
2	ASSEMBLY, FRONT ROLLER (LEFT HAND)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008AP Whirlpool Refrigerator Hinge
9	2307008B Whirlpool Refrigerator Butt Hinge
9	2307008T Whirlpool Refrigerator Butt Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	2223893AP Whirlpool Refrigerator Filler
13	2223893W Whirlpool Refrigerator Filler
13	Filler, Wrapper (Black)
13	Filler, Wrapper (Biscuit)
14	Grille (Black)
14	Grille (White)
14	Grille (Midnight Grey)
14	Grille (Biscuit)
15	3400108 Whirlpool Refrigerator Screw
16	2307007AP Whirlpool Refrigerator Hinge
16	2307007T Whirlpool Refrigerator Butt Hinge
16	2307007B Whirlpool Refrigerator Butt Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Tube, Extension
21	Cover, Unit
23	549193 Whirlpool Refrigerator Power Clamp
25	Hinge Assembly, Bottom-FC
26	2260503W Whirlpool Refrigerator Button
26	WP2260503B Whirlpool Refrigerator Button
26	2260503MG Whirlpool Refrigerator Button
27	WPW10121140 Whirlpool Refrigerator Housing
28	FILTER 3-SINGLE TEAL
29	Door Closer, FC
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	Cap, Water Filter (Biscuit)
30	WP2260518MG Whirlpool Water Filter Cap
31	CABINET (NOT A SERVICEABLE PART)
32	WP489483 Whirlpool Screw
33	PIN, ROLLER
34	WPL 2307049
35	W10853301 Whirlpool Refrigerator Screw
36	W11496481 Whirlpool Refrigerator Water Tube
37	TUBE, FILTER INLET
