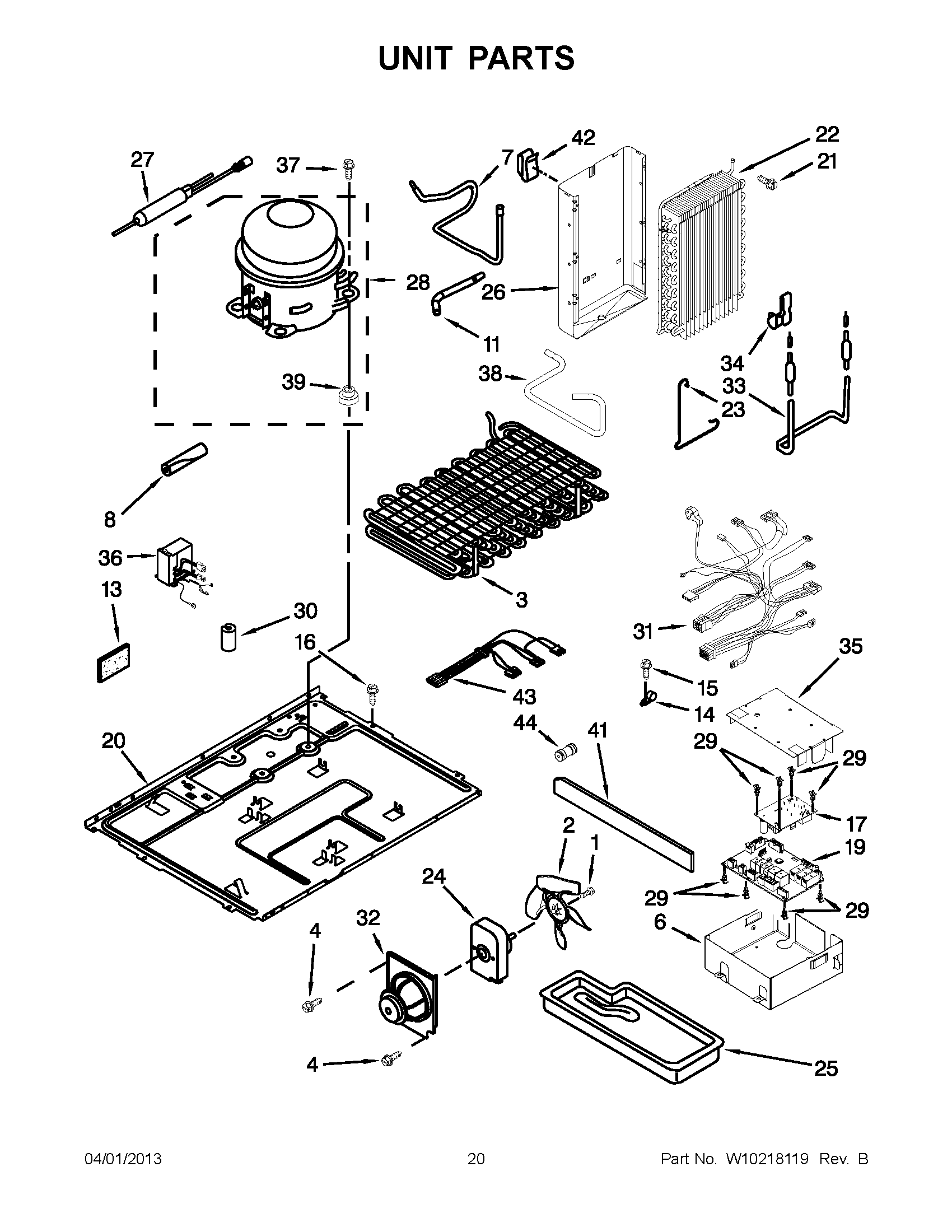

GC5SHAXVS00 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	WPW10171469 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
11	W10858105 Whirlpool Refrigerator Tube
13	W11553819 Whirlpool Refrigerator Insulation
14	WP1115374 Whirlpool Refrigerator Clip
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
16	3400524 Whirlpool Refrigerator Screw
17	WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
19	WPW10209635-includeCORE Whirlpool WPW10209635 Refrigerator Electronic Control Board + Core
20	Baseplate
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	SHIELD, HEAT
27	WPW10143759 Whirlpool Dryer Filter
28	W10276644 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
30	W10852725 Whirlpool Refrigerator Grommet
31	Harness, Main Control
32	BRACKET, FAN MOUNTING
33	Heater, Defrost
34	W11623163 Whirlpool Refrigerator Clip
35	COVER, CONTROL BOX
36	W10893917 Whirlpool Refrigerator Inverter Box
37	876811 Whirlpool Grommet
38	WP4387558 Whirlpool Refrigerator Compressor Grommet
38	Tube, Discharge
41	2223394 Whirlpool Extension
42	Clip, Heat Shield
43	2187737 Whirlpool Refrigerator Wire Harness
44	WPW10334458 Whirlpool Refrigerator Connector
