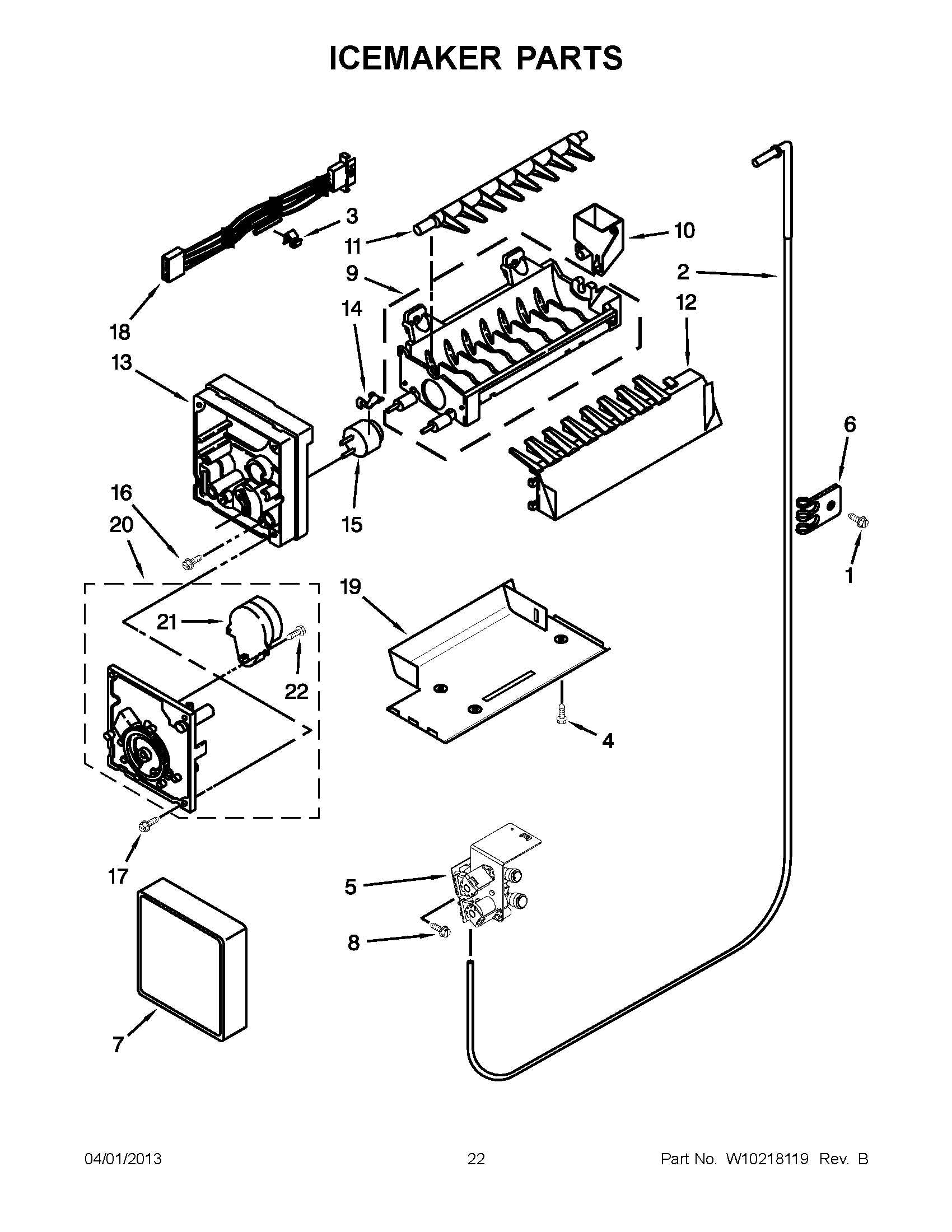

GC5SHAXVS00 11 – ICEMAKER PARTS

GC5SHAXVS00 11 – ICEMAKER PARTS

Written by

in

GC5SHAXVS00 11 – ICEMAKER PARTS

Products

PositionProduct
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5W10247725 Whirlpool Water Inlet Valve
6WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12W10297244 Whirlpool Refrigerator Arm Strip
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18WP2187467 Whirlpool Refrigerator Wire Harness
19BRACKET, ICEMAKER MOUNTING
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
