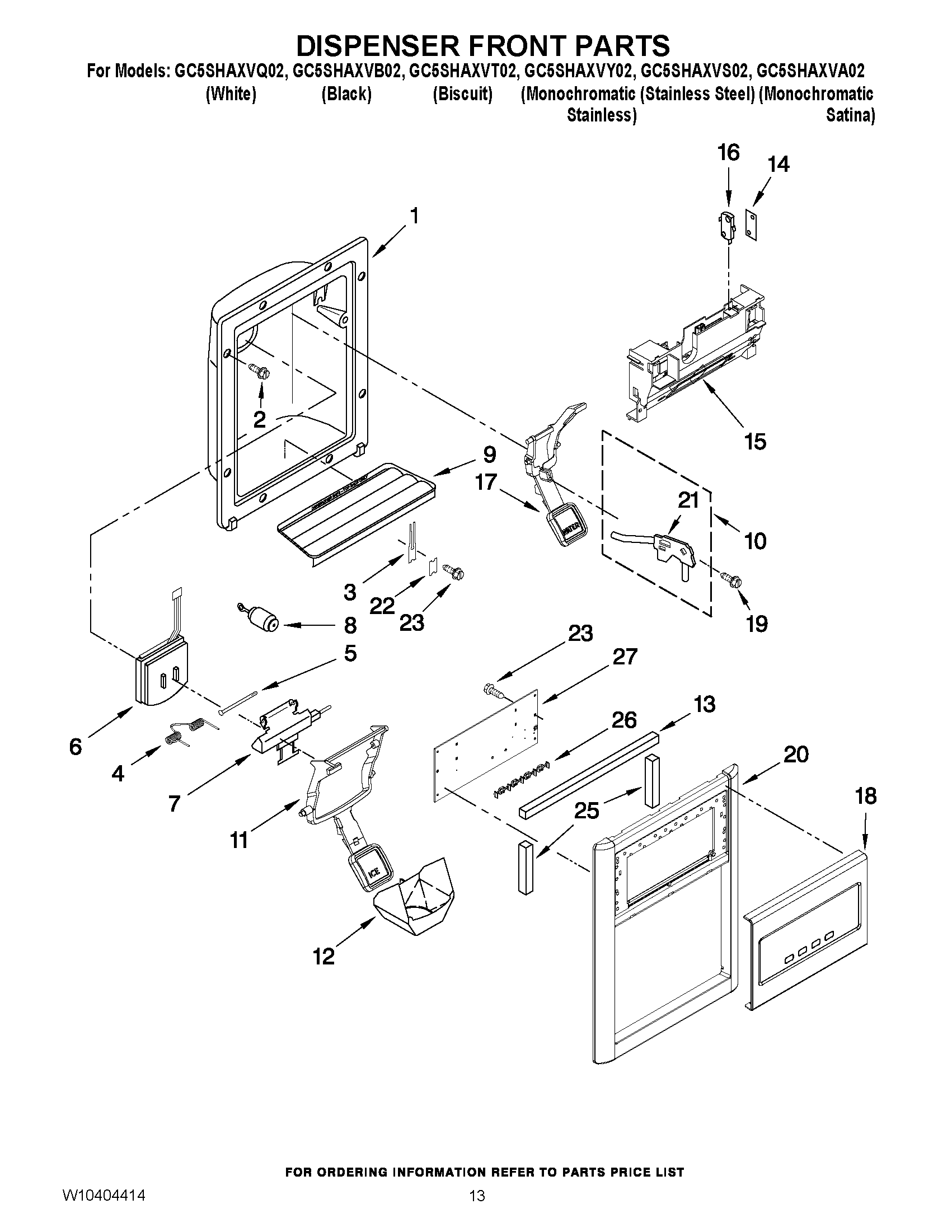

GC5SHAXVT02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	W10152855 Whirlpool Refrigerator Dispenser Arm
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
14	Spacer, Switch (2)
15	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
16	WP2162361 Whirlpool Switch
17	WPW10152859 Whirlpool Refrigerator Dispenser Arm
17	W10152860 Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Apollo Grey)
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
18	Fascia, Disp (Mono Stainless)
18	Fascia, Disp (Mono Satina)
18	Fascia, Disp (White)
18	W10139748 Whirlpool Escutcheon
18	Fascia, Disp (Black)
19	WP3400906 Whirlpool Refrigerator Screw
20	W10136850 Whirlpool Refrigerator Front Cover
20	W10171988 Whirlpool Refrigerator Front Cover
20	Bezel, Disp (Mono Satina (SS))
20	Bezel, Disp (Black)
20	W10136852 Whirlpool Front Cover
21	WP2304673 Whirlpool Refrigerator Bracket
22	WP2195051 Whirlpool Refrigerator Clip
23	2006254 Whirlpool Refrigerator Screw
25	Gasket, Disp (2)
26	Support, Window
27	WPW10175973-includeCORE Whirlpool WPW10175973 Refrigerator Electronic Control Board + Core
