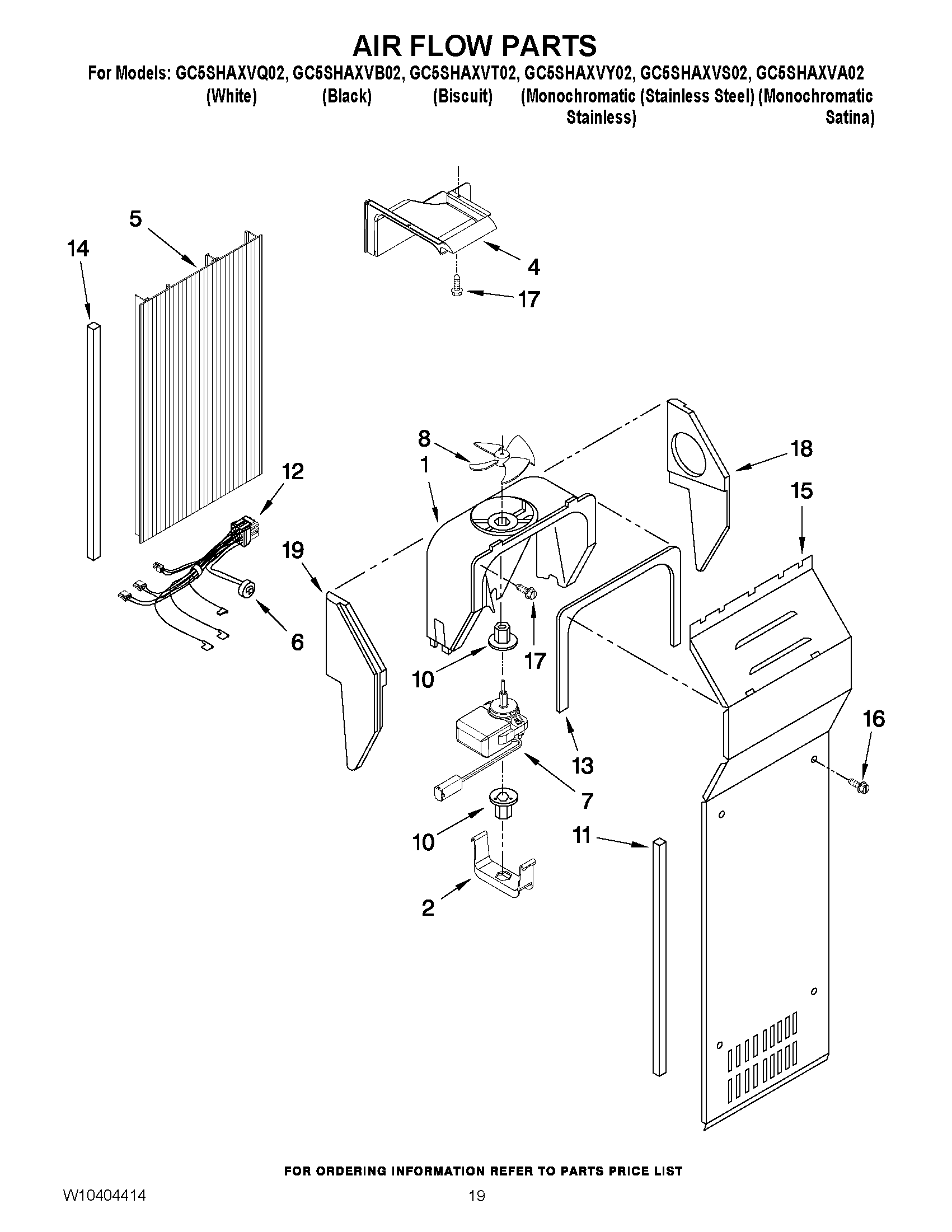

GC5SHAXVT02 11 – AIR FLOW PARTS

GC5SHAXVT02 11 – AIR FLOW PARTS

Written by

in

GC5SHAXVT02 11 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
28201663 Whirlpool Refrigerator Primary Fan Blade
4AIR DUCT, UPPER
5Air Duct Freezer
6WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7Motor, Fan
8WP2169142 Whirlpool Fan Blade
10W11669856 Whirlpool Grommet
11WP2304241 Whirlpool Refrigerator Gasket
12HARNESS, FAN EVAPORATOR (INCLUDES No.6)
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
152223413 Whirlpool Refrigerator Evaporator Cover
164389654 Whirlpool Screw
17WP489478 Whirlpool Refrigerator Screw
18Support, R.S
194388358 Whirlpool Refrigerator Support Bracket
