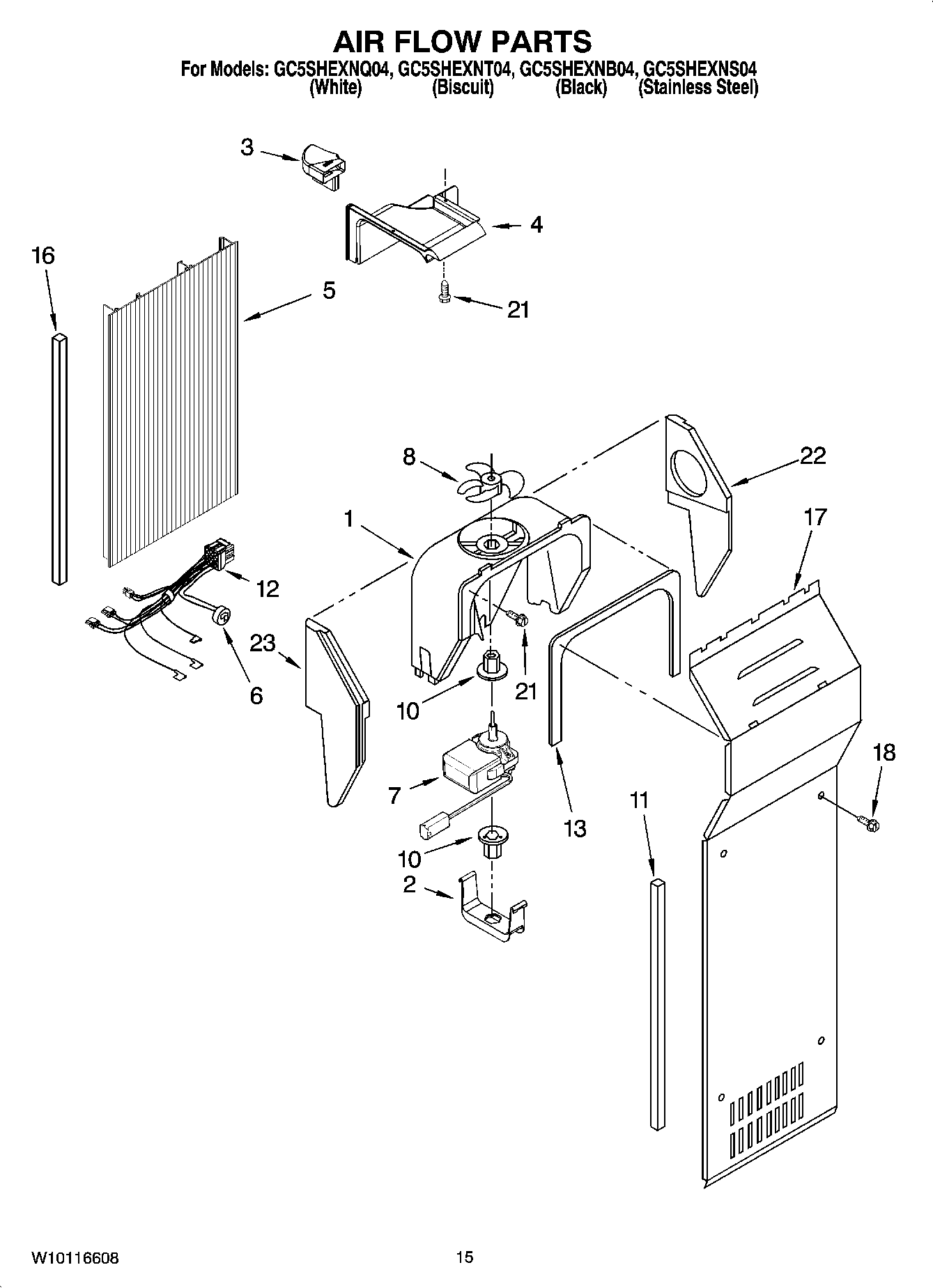

GC5SHEXNS04 09 – AIR FLOW PARTS

GC5SHEXNS04 09 – AIR FLOW PARTS

Written by

in

GC5SHEXNS04 09 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
28201663 Whirlpool Refrigerator Primary Fan Blade
3Air Scoop
4Air Duct, Upper
5Air Duct Freezer
6WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7Motor, Fan
8WP2169142 Whirlpool Fan Blade
10W11669856 Whirlpool Grommet
11WP2304241 Whirlpool Refrigerator Gasket
12Harness, Fan Evaporator (Includes 6)
13WP2155789 Whirlpool Refrigerator Gasket
164388500 Whirlpool Refrigerator Gasket
172223413 Whirlpool Refrigerator Evaporator Cover
184389654 Whirlpool Screw
21WP489478 Whirlpool Refrigerator Screw
22Support, R.S
234388358 Whirlpool Refrigerator Support Bracket
