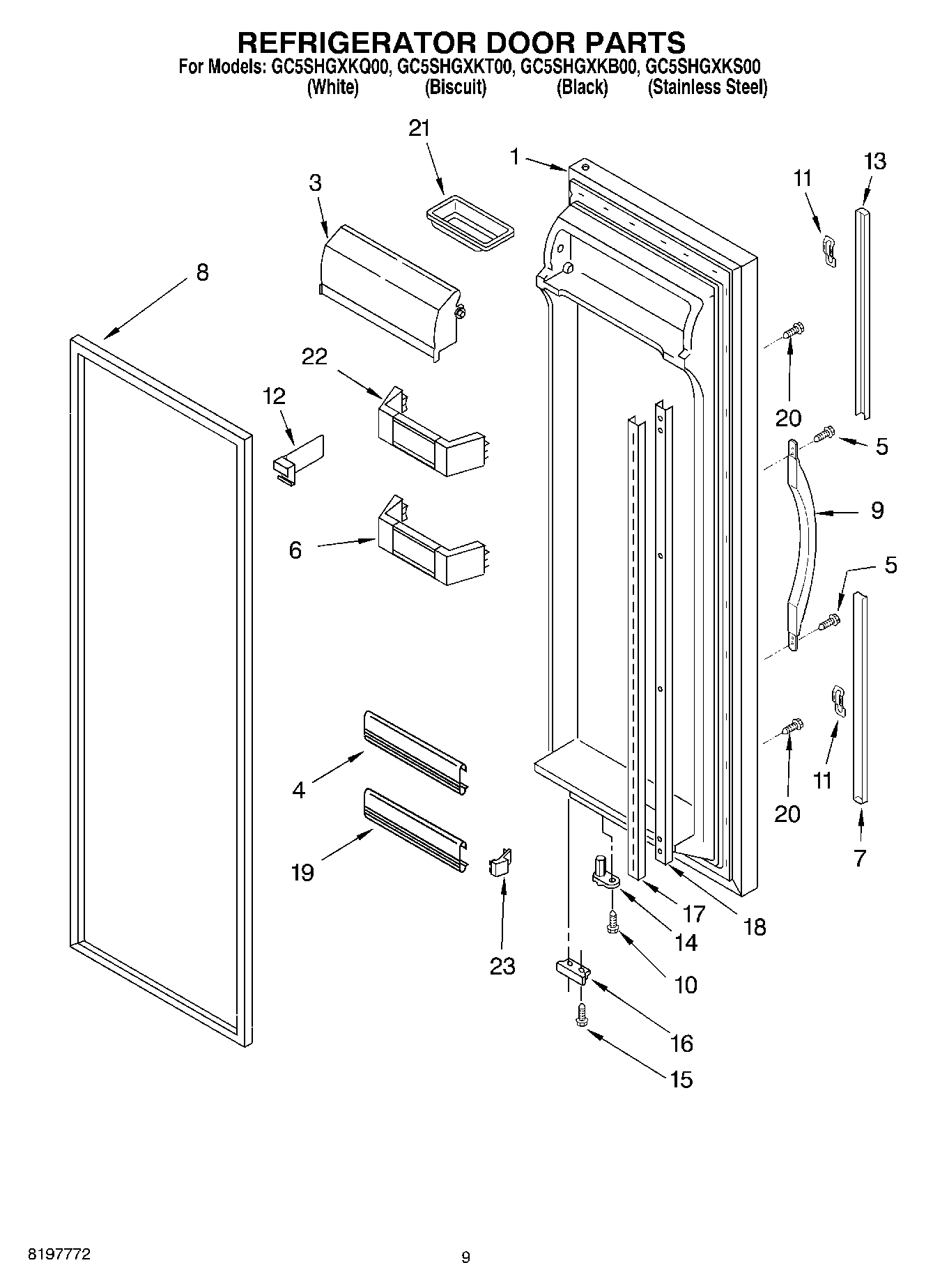

GC5SHGXKQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Stainless Steel)
1	Refrigerator Door (Includes Item 8) (Biscuit)
1	Refrigerator Door (Includes Item 8) (Black)
3	WP2256101 Whirlpool Dairy Door
4	WP2256010 Whirlpool Door Shelf Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WP2257017 Whirlpool Refrigerator Cantilever Bin
7	Extension, Bottom (White)
7	Extension, Bottom (Biscuit)
7	Extension, Bottom (Black)
8	Door Gasket, Magnetic (Service) (Mist Beige)
8	Door Gasket, Magnetic (Service) (Black)
9	Handle, Center (White)
9	Handle, Center (Biscuit)
9	WP2186649B Whirlpool Refrigerator Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2195327 Whirlpool Refrigerator Clip
12	Divider, Bin
13	Extension, Top (Black)
13	Extension, Top (Biscuit)
13	Extension, Top (White)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (Chrome)
17	Retainer, Shelf Ladder (2)
18	Ladder, Shelf (2)
19	Trim, Door Shelf
20	WP3400852 Whirlpool Refrigerator Screw
21	Butter Tray
22	Bin, Door (3)
23	ENDCAP
