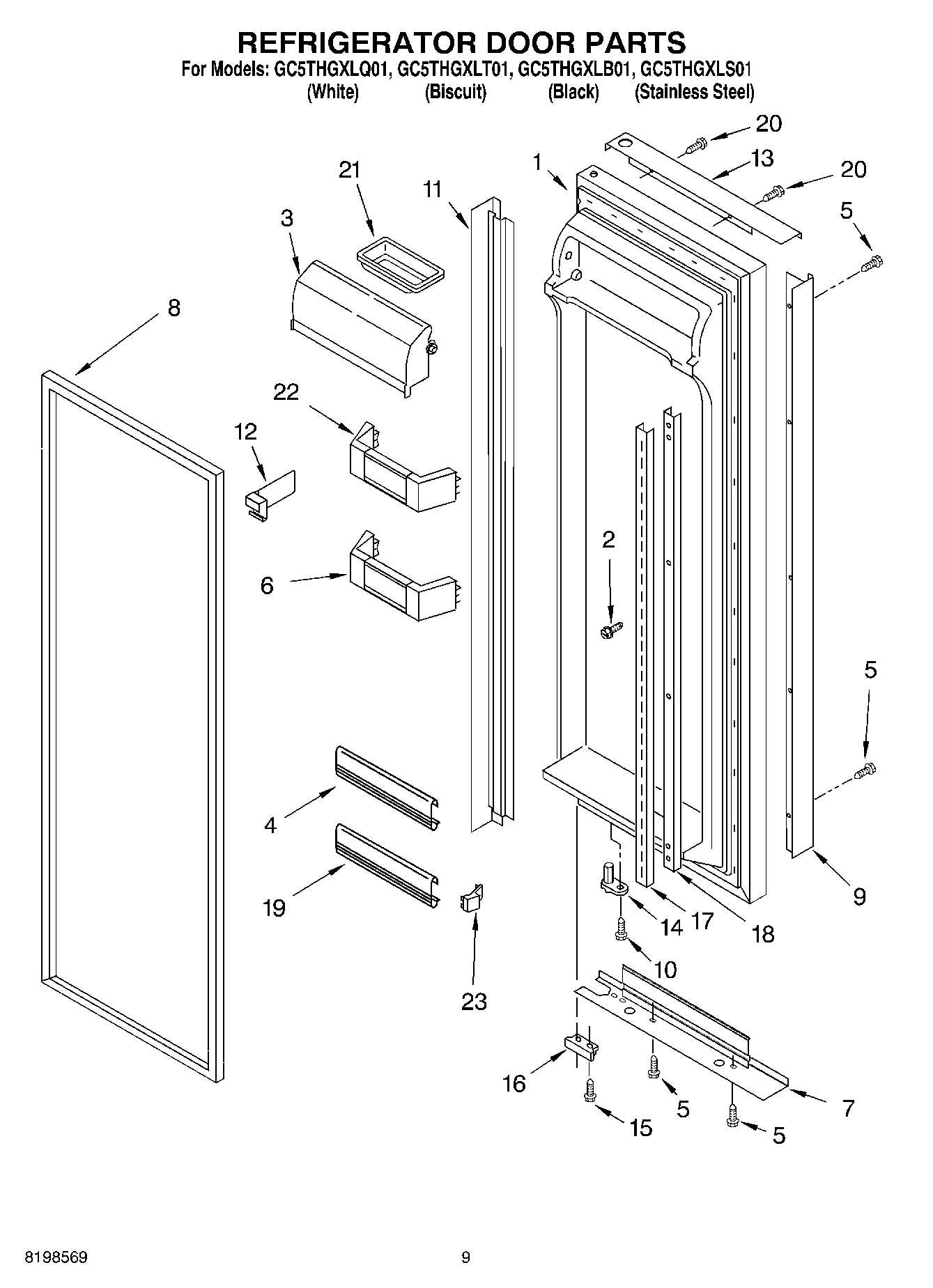

GC5THGXLQ01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Black)
1	Refrigerator Door (Includes Item 8) (Biscuit)
3	WP2256101 Whirlpool Dairy Door
4	WP2256010 Whirlpool Door Shelf Trim
5	WP3196557 Whirlpool Screw
6	WP2257017 Whirlpool Refrigerator Cantilever Bin
7	Trim, Door-Bottom (Stainless Steel)
7	Trim, Door (Bottom) (Biscuit)
7	Trim, Door (Bottom) (Black)
7	Trim, Door (Bottom) (White)
8	Door Gasket, Magnetic (Mist Beige)
8	Door Gasket, Magnetic (Black)
9	Handle (Black)
9	Handle (White)
9	Handle (Biscuit)
9	Handle (Stainless Steel)
10	WP3400012 Whirlpool Refrigerator Screw
11	Trim, Hinge-Side (Stainless Steel)
11	Trim, Hinge-Side (White)
11	Trim, Hinge-Side (Biscuit)
11	Trim, Hinge-Side (Black)
12	Divider, Bin
13	Trim, Door (Top) (Black)
13	Trim, Door-Top (Stainless Steel)
13	Trim, Door (Top) (Biscuit)
13	Trim, Door (Top) (White)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
16	Bracket, Door Stop (Chrome)
17	Retainer, Shelf Ladder (2)
18	Ladder, Shelf (2)
19	Trim, Door Shelf
20	Screw
21	Butter Tray
22	Bin, Door (3)
23	ENDCAP
