GC5THGXLT00 03 – REFRIGERATOR SHELF

GC5THGXLT00 03 – REFRIGERATOR SHELF

Written by

in

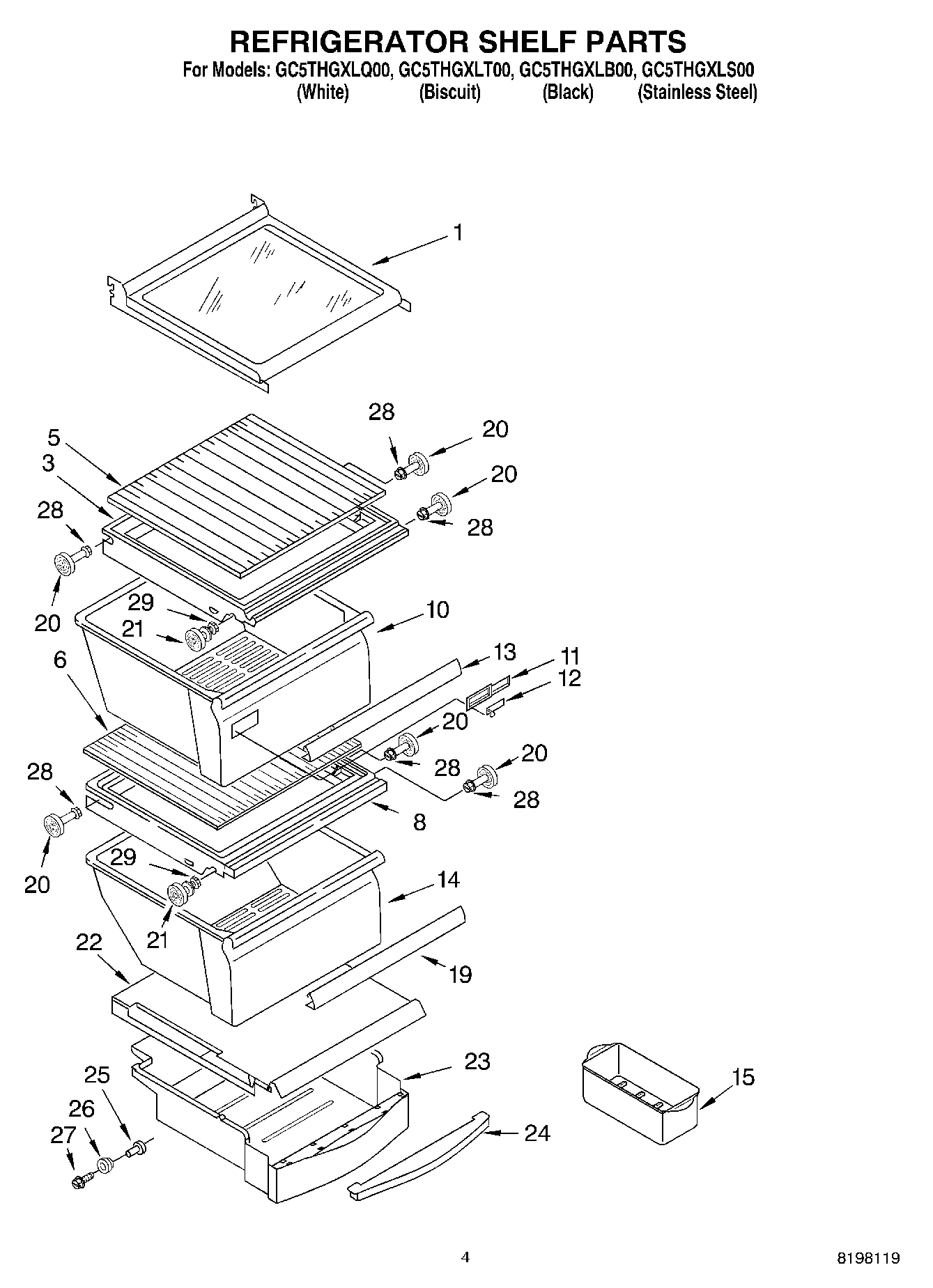

GC5THGXLT00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly
5W10864399 Whirlpool Glass Shelf
8W10508993 Whirlpool Refrigerator Cover Pan
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188661 Whirlpool Crisper Pan
15W10136387A Whirlpool Refrigerator Egg Container
19WP2179234 Whirlpool Refrigerator Pan Trim
20WP2196483 Whirlpool Refrigerator Shelf Stud
21W11223328 Whirlpool Refrigerator Shelf Stud
22WPW10270150 Whirlpool Crisper Drawer Cover
23Beverage Pan
24Handle, Beverage
25Roller
26Eyelet, Roller
27WP489261 Whirlpool Refrigerator Screw
28WP3400806 Whirlpool Screw
29WP3-24004-109 Whirlpool Refrigerator Screw
