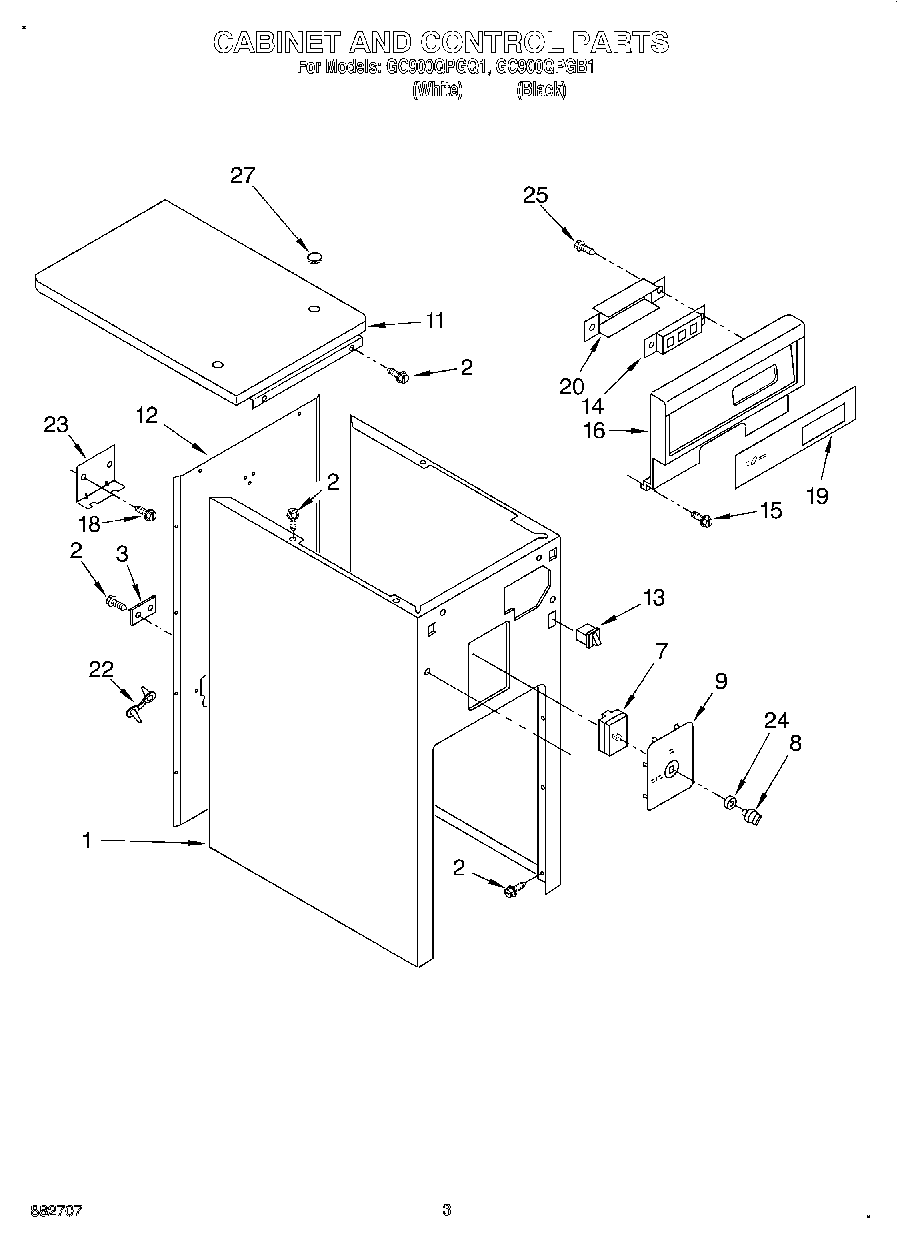

GC900QPGQ1 03 – CABINET AND CONTROL

GC900QPGQ1 03 – CABINET AND CONTROL

Written by

in

GC900QPGQ1 03 – CABINET AND CONTROL

Products

PositionProduct
1WP9870913 Whirlpool Cabinet
1Cabinet
2WP489478 Whirlpool Refrigerator Screw
3Plate, Power Cord
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99871161 Whirlpool Compactor Switch Plate
99870356 Whirlpool Compactor Switch Plate
11Top, Cabinet
11WP9870865 Whirlpool Compactor Top
12Panel, Back
13WP4387911 Whirlpool Refrigerator Switch
14Assembly, Switch (Black)
14WP9871567 Whirlpool Compactor Off Switch
15Screw
16Escutcheon, Control (White)
16Escutcheon, Control (Black)
18WP489069 Whirlpool Compactor Screw
19Insert, Decorative (White)
19Insert, Decorative (Black)
20Shield, Switch
22Bushing, Cord
23Bracket, Protector
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
27Plug, Hole
274151479 Whirlpool Compactor Button Plug
