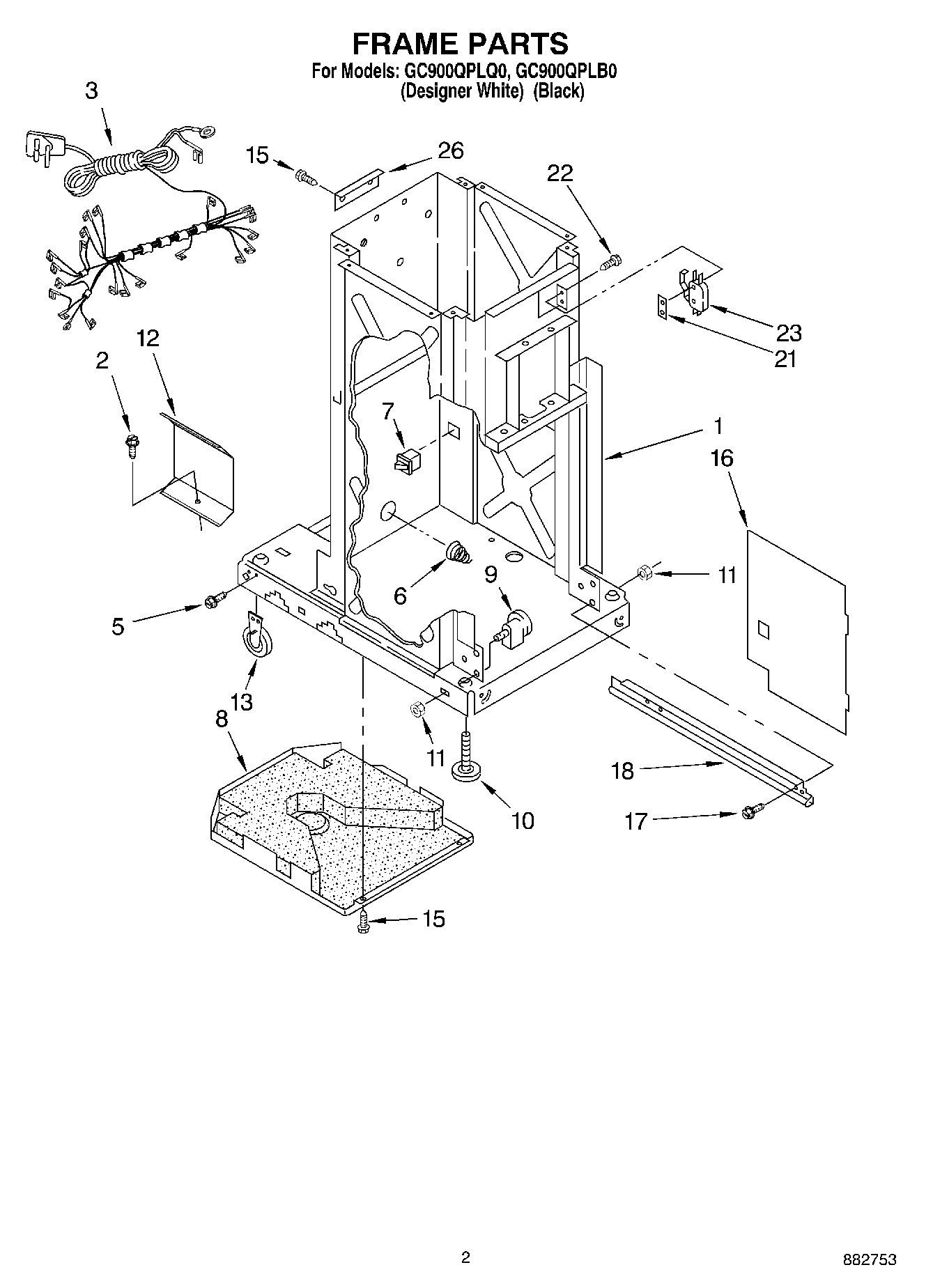

GC900QPLQ0 02 – FRAME

GC900QPLQ0 02 – FRAME

Written by

in

GC900QPLQ0 02 – FRAME

Products

PositionProduct
1Frame (Not a Serviceable Part)
2WPW10139210 Whirlpool Screw
3Cord, Power
5WP3351614 Whirlpool Screw
6WP777180 Whirlpool Compactor Spring
7WP4387911 Whirlpool Refrigerator Switch
8WP780437 Whirlpool Compactor Bottom Pan
9882688 Whirlpool Compactor Bearing
10WPW10001130 Whirlpool Leveling Leg
11WP776356 Whirlpool Compactor Nut
129870867 Whirlpool Shield
13W11023674 Whirlpool Compactor Leveling Wheel
15WP489478 Whirlpool Refrigerator Screw
16WP9870444 Whirlpool Compactor Inner Panel
17WP486754 Whirlpool Compactor Screw
18WP9870975 Whirlpool Compactor Slide
18SLIDE
21Plate, Nut
22777849 Whirlpool Compactor Screw
23WP777811 Whirlpool Compactor Directional Switch
26Angle, Top Bracket
