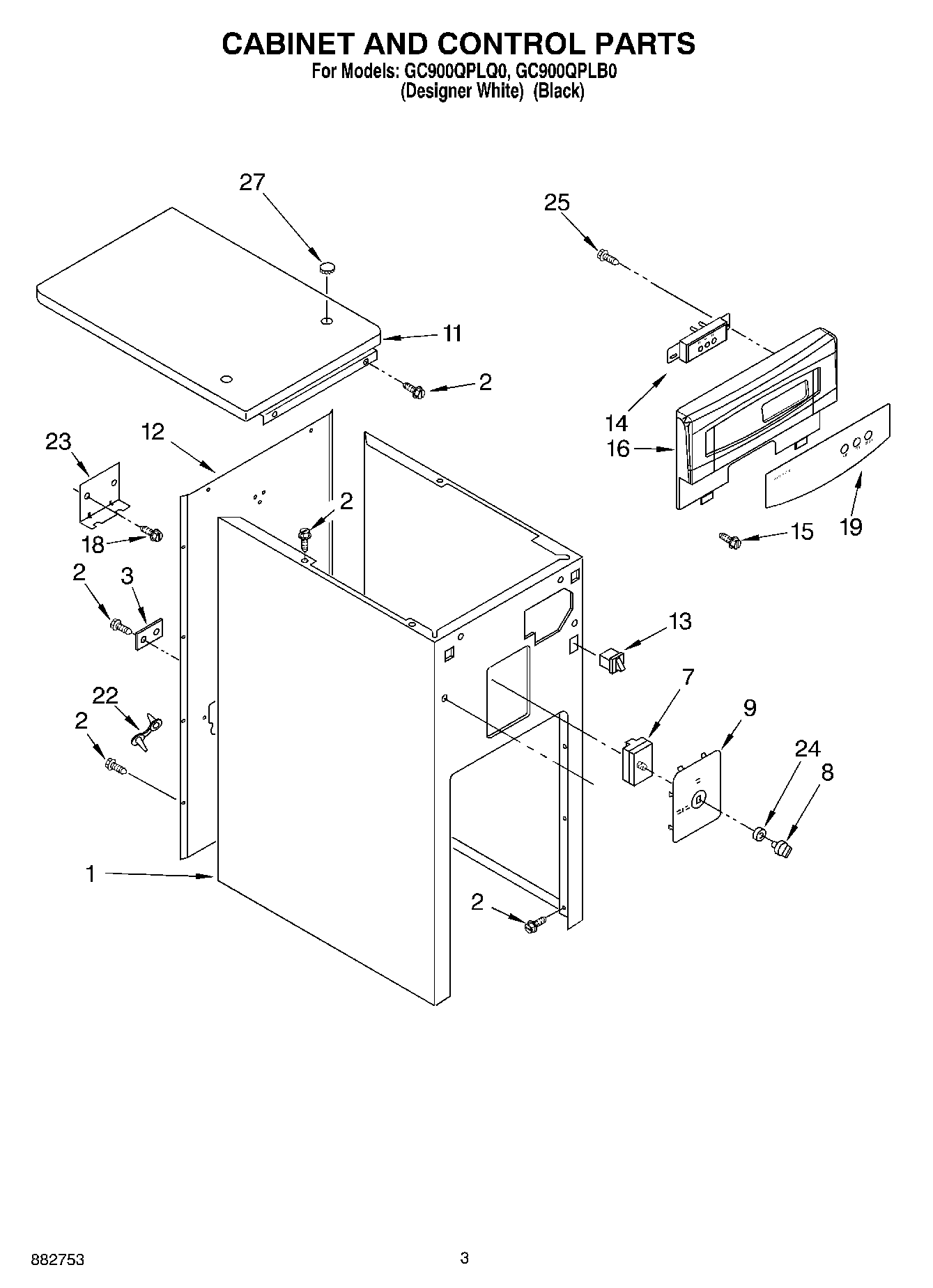

GC900QPLQ0 03 – CABINET AND CONTROL
Written by
in
GC900QPLQ0 03 – CABINET AND CONTROL
Products
Position
Product
1
Cabinet
1
WP9870913 Whirlpool Cabinet
2
WP489478 Whirlpool Refrigerator Screw
3
Plate, Power Cord
7
777380 Whirlpool Compactor Switch
8
WP4155141 Whirlpool Compactor Switch Knob
9
9871161 Whirlpool Compactor Switch Plate
9
9870356 Whirlpool Compactor Switch Plate
11
Top, Cabinet
11
WP9870865 Whirlpool Compactor Top
12
Panel, Back
13
WP4387911 Whirlpool Refrigerator Switch
13
9871829 Whirlpool Trash Compactor Door Switch
14
W10813586 Whirlpool Off Switch
15
Screw
16
Escutcheon, Control (White)
16
Escutcheon, Control (Black)
18
WP488234 Whirlpool Air Conditioner Screw
19
Insert, Decorative (Black)
19
Insert, Decorative (White)
22
Bushing, Cord
23
Bracket, Protector
24
WP777383 Whirlpool Compactor Nut
25
WP3400888 Whirlpool Compactor Screw
27
4151479 Whirlpool Compactor Button Plug
27
Plug, Hole
←
