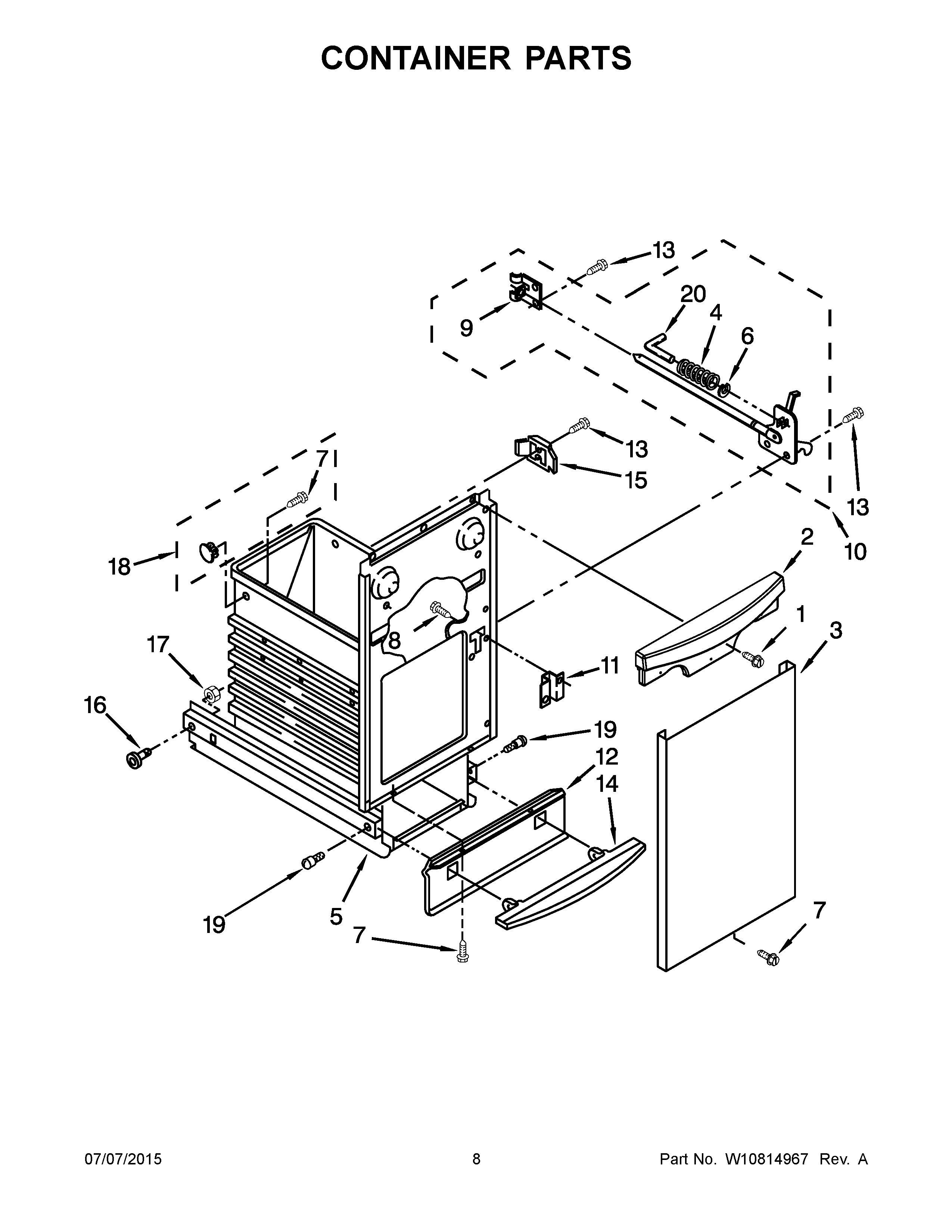

GC900QPPB5 05 – CONTAINER PARTS

Products

Position	Product
1	SCREW
2A	WP9872040B Whirlpool Compactor Handle
2	9872040W Whirlpool Compactor Handle
3A	WP9871309 Whirlpool Compactor Panel
3	WP9871311 Whirlpool Compactor Panel
4	775736 Whirlpool Compactor Spring
5	WPW10451276 Whirlpool Compactor Container
6	Ring, ``E``
7	WP3196175 Whirlpool Screw
8	WPW10139210 Whirlpool Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	775665 Whirlpool Compactor Plate Latch
12A	W10917704 Whirlpool Compactor Guard
12	WP777328 Whirlpool Compactor Guard
13	WP489478 Whirlpool Refrigerator Screw
14	W11679165 Whirlpool Foot Pedal
14A	WP9871031 Whirlpool Compactor Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	RETAINER, BAG
19	WP780263 Whirlpool Compactor Screw
20	Pin
