GC900QPPB6 03 – FRAME PARTS
Written by
in

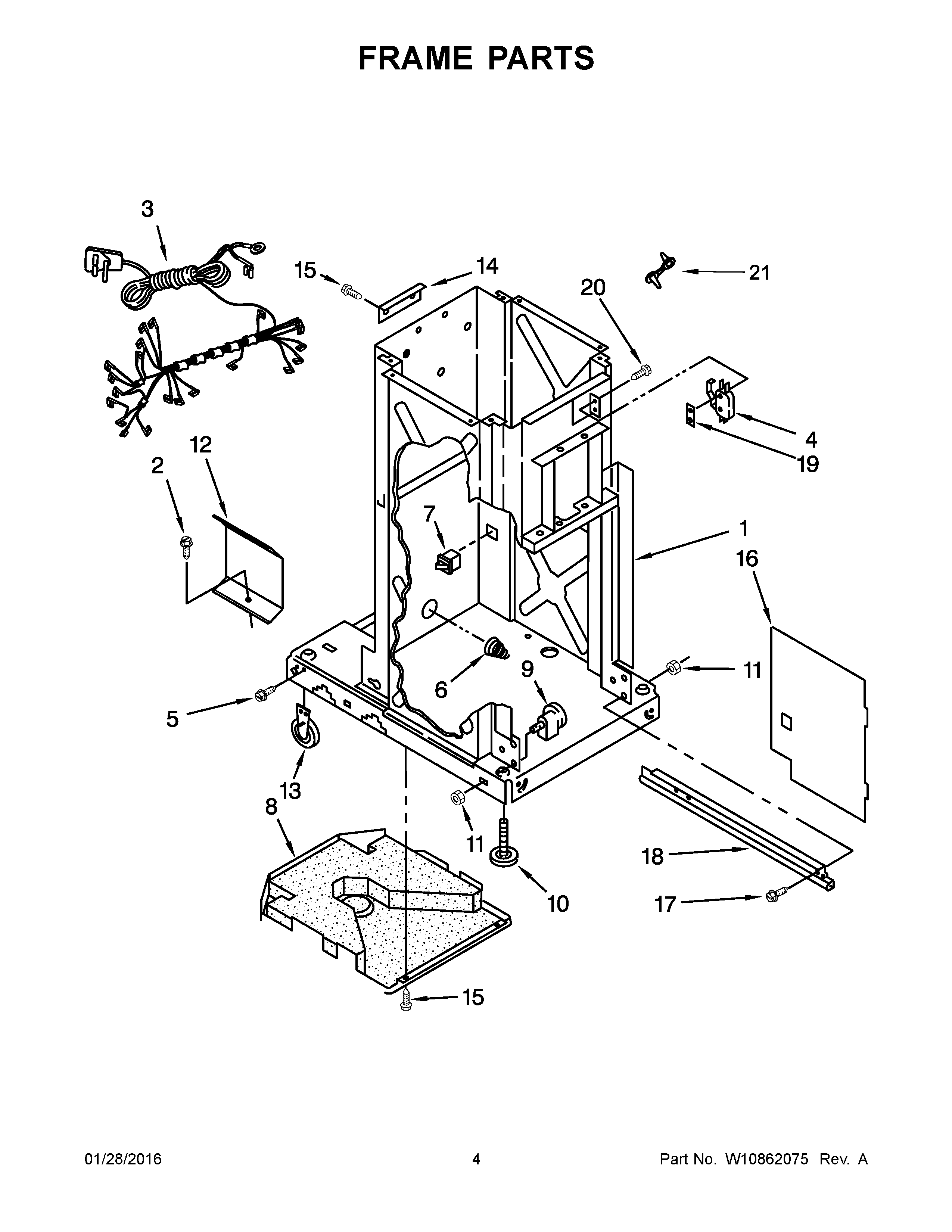

GC900QPPB6 03 – FRAME PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
WPW10139210 Whirlpool Screw
3
W10830512 Whirlpool Compactor Wire Harness
4
WP777811 Whirlpool Compactor Directional Switch
5
WP3351614 Whirlpool Screw
6
WP777180 Whirlpool Compactor Spring
7
W11243179 Whirlpool Compactor Safety Switch
8
WP780437 Whirlpool Compactor Bottom Pan
9
882688 Whirlpool Compactor Bearing
10
WPW10001130 Whirlpool Leveling Leg
11
WP776356 Whirlpool Compactor Nut
12
9870867 Whirlpool Shield
13
W11023674 Whirlpool Compactor Leveling Wheel
14
Angle, Top Bracket
15
WP489478 Whirlpool Refrigerator Screw
16
WP9870444 Whirlpool Compactor Inner Panel
17
WP486754 Whirlpool Compactor Screw
18A
WP9870975 Whirlpool Compactor Slide
18
SLIDE
19
Plate, Nut
20
777849 Whirlpool Compactor Screw
21
Clamp, Wire
←
