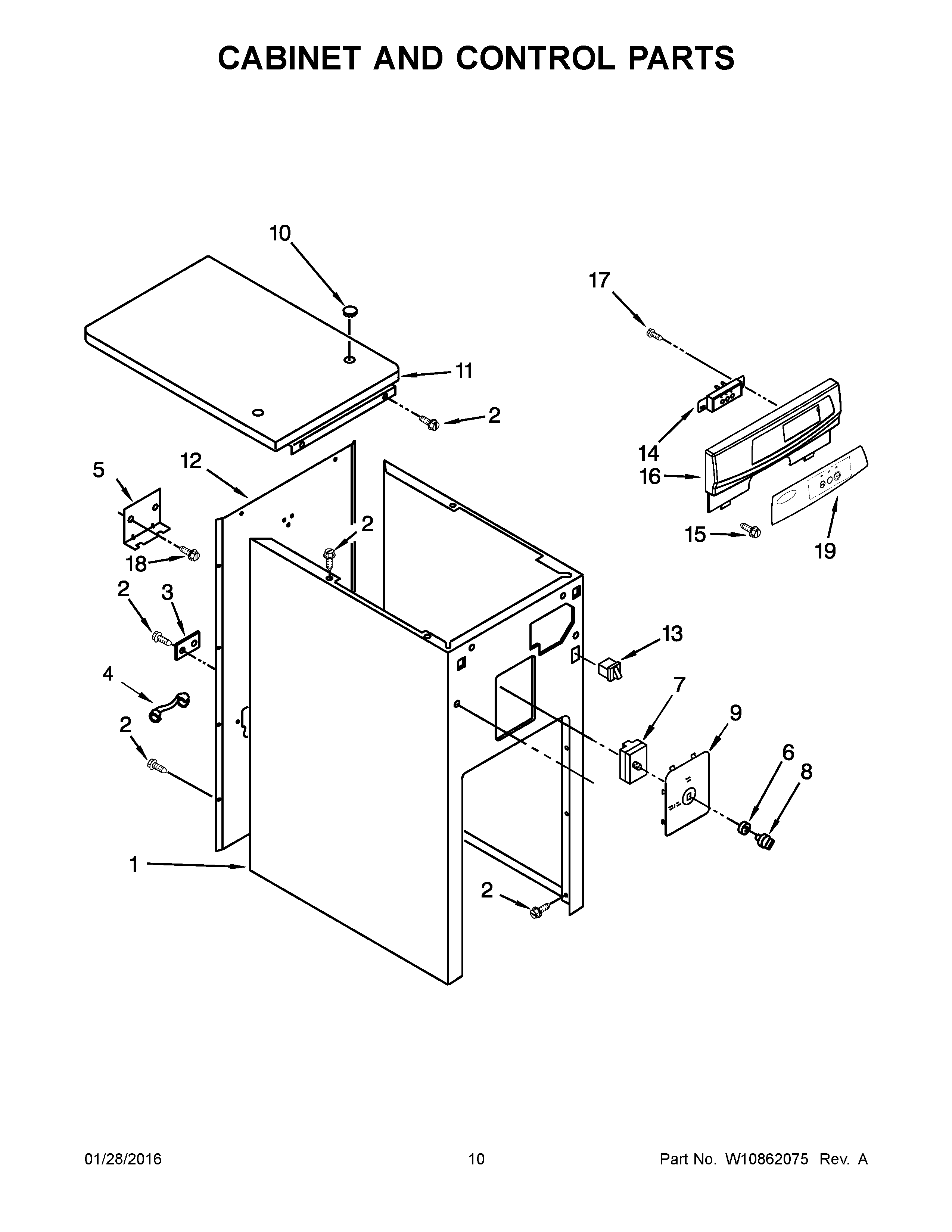

GC900QPPB6 06 – CABINET AND CONTROL PARTS

Products

Position	Product
1A	WP9870913 Whirlpool Cabinet
1	Cabinet
2	WP489478 Whirlpool Refrigerator Screw
3	Plate, Power Cord
4	Bushing, Cord
5	Bracket, Protector
6	WP777383 Whirlpool Compactor Nut
7	777380 Whirlpool Compactor Switch
8	WP4155141 Whirlpool Compactor Switch Knob
9A	9870356 Whirlpool Compactor Switch Plate
9	9871161 Whirlpool Compactor Switch Plate
10	SCREW
11	Top, Cabinet
11A	WP9870865 Whirlpool Compactor Top
12	Panel, Back
13A	WP4387911 Whirlpool Refrigerator Switch
13	9871829 Whirlpool Trash Compactor Door Switch
14	W10813586 Whirlpool Off Switch
15	Screw
16	ESCUTCHEON
16A	9872039W Whirlpool Compactor Escutcheon
17A	4151479 Whirlpool Compactor Button Plug
17	Plug, Hole
18	WPW10139210 Whirlpool Screw
19	W11050447 Whirlpool Compactor Insert
19A	W11690155 Whirlpool Trash Compactor Insert
