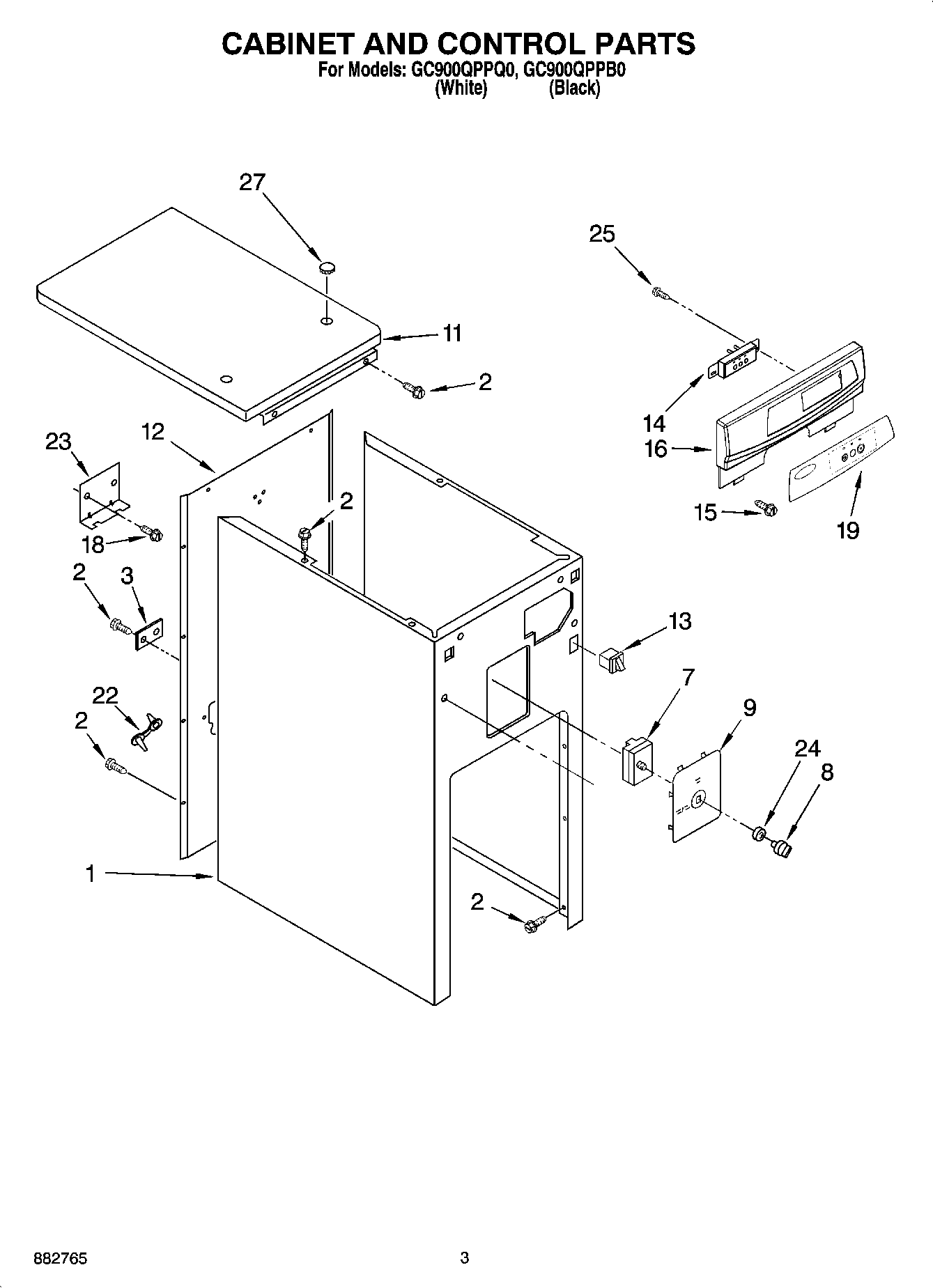

GC900QPPQ0 03 – CABINET AND CONTROL PARTS

GC900QPPQ0 03 – CABINET AND CONTROL PARTS

Written by

in

GC900QPPQ0 03 – CABINET AND CONTROL PARTS

Products

PositionProduct
1Cabinet
1WP9870913 Whirlpool Cabinet
2WP489478 Whirlpool Refrigerator Screw
3Plate, Power Cord
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99871161 Whirlpool Compactor Switch Plate
99870356 Whirlpool Compactor Switch Plate
11Top, Cabinet
11WP9870865 Whirlpool Compactor Top
12Panel, Back
13WP4387911 Whirlpool Refrigerator Switch
139871829 Whirlpool Trash Compactor Door Switch
14W10813586 Whirlpool Off Switch
15Screw
16ESCUTCHEON
169872039W Whirlpool Compactor Escutcheon
18WP488234 Whirlpool Air Conditioner Screw
19W11050447 Whirlpool Compactor Insert
19W11690155 Whirlpool Trash Compactor Insert
22Bushing, Cord
23Bracket, Protector
24WP777383 Whirlpool Compactor Nut
25WP3400888 Whirlpool Compactor Screw
274151479 Whirlpool Compactor Button Plug
27Plug, Hole
