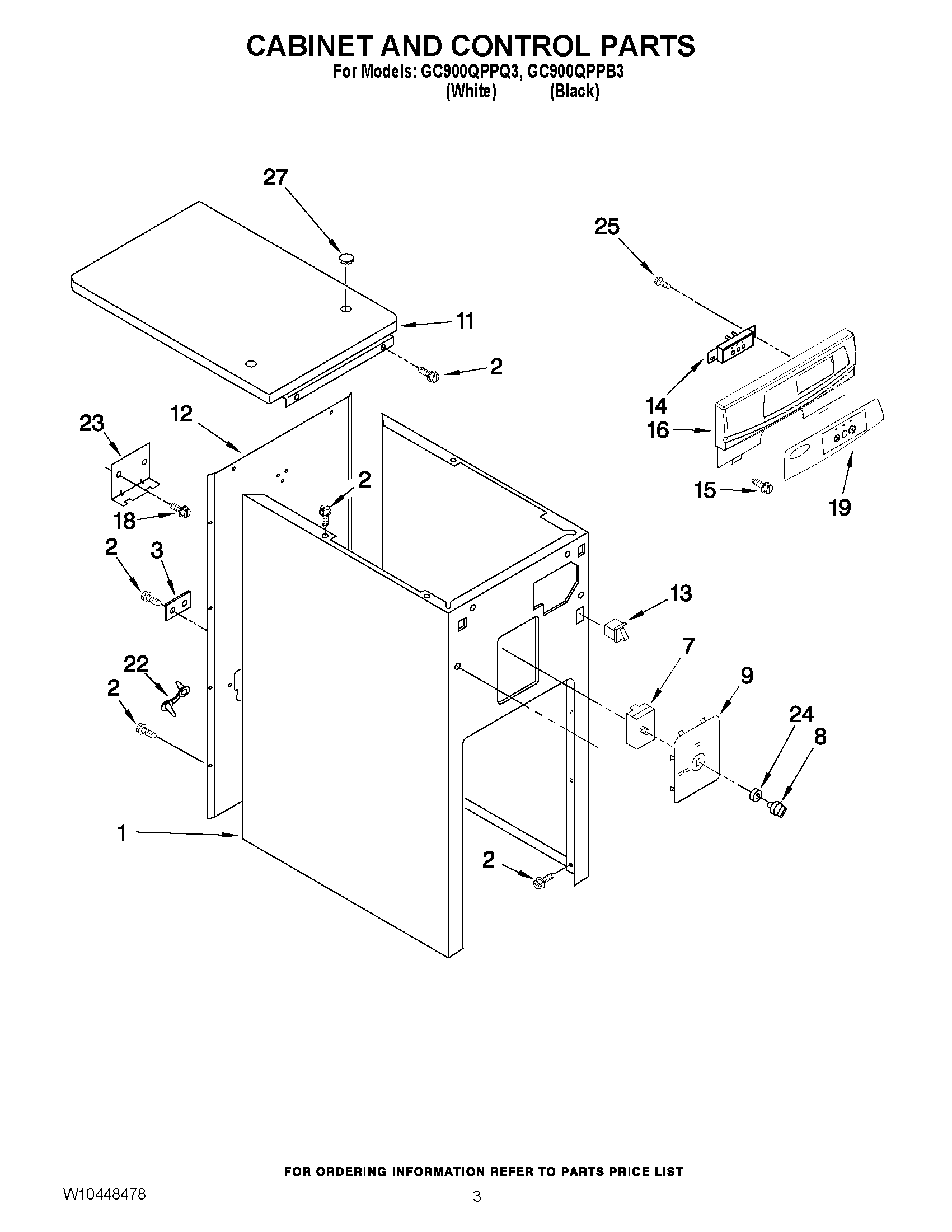

GC900QPPQ3 03 – CABINET AND CONTROL PARTS

Products

Position	Product
1	Cabinet
1	WP9870913 Whirlpool Cabinet
2	WP489478 Whirlpool Refrigerator Screw
3	Plate, Power Cord
7	777380 Whirlpool Compactor Switch
8	WP4155141 Whirlpool Compactor Switch Knob
9	9871161 Whirlpool Compactor Switch Plate
9	9870356 Whirlpool Compactor Switch Plate
11	Top, Cabinet
11	WP9870865 Whirlpool Compactor Top
12	Panel, Back
13	WP4387911 Whirlpool Refrigerator Switch
13	9871829 Whirlpool Trash Compactor Door Switch
14	W10813586 Whirlpool Off Switch
15	Screw
16	ESCUTCHEON
16	9872039W Whirlpool Compactor Escutcheon
18	WP488234 Whirlpool Air Conditioner Screw
19	W11050447 Whirlpool Compactor Insert
19	W11690155 Whirlpool Trash Compactor Insert
22	Bushing, Cord
23	Bracket, Protector
24	WP777383 Whirlpool Compactor Nut
25	SCREW
27	4151479 Whirlpool Compactor Button Plug
27	Plug, Hole
