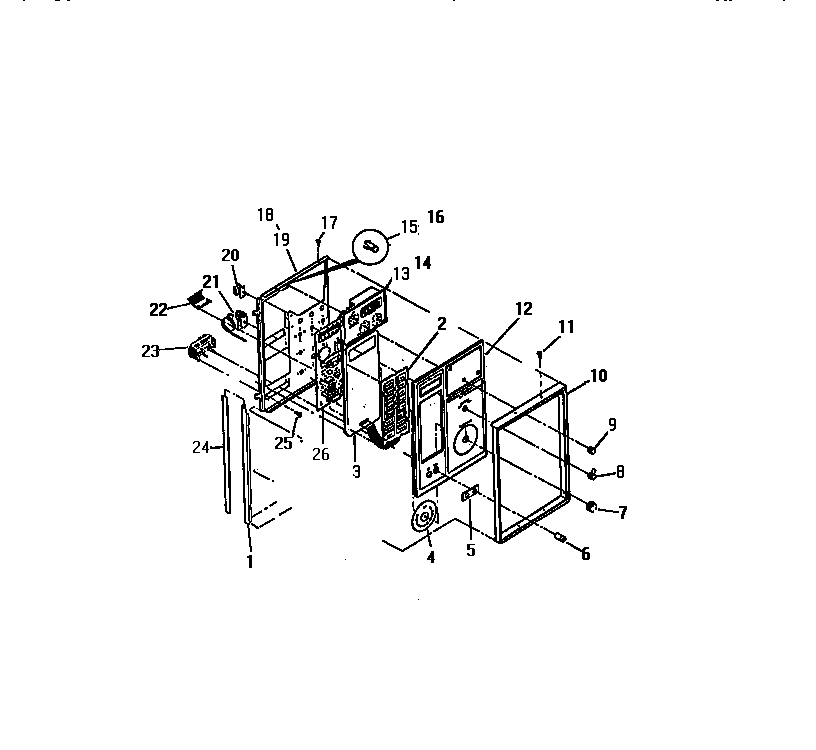

GC932EXD0 02 – CONTROL PANEL

Products

Position	Product
*38040	WCI 636T069P05
*38042	5303288565 Frigidaire Screw
*38041	SCREW BOARD (4)
1	WCI 174T172P03
2	WCI 696T146P06
3	PANEL SWITCH
4	WCI 196T035P04
5	WCI 045T066P01
6	WCI 106T024P01
7	WCI 358T145P01
8	WCI 358T147P01
9	KNOB-CLOCK
10	TRIM CONTROL PNL
12	WCI 277T204S06
13	WCI 148T176P01
15	FSTNR-CLOCK
17	SCREW SW PNL. (7)
18	WCI 521T085W03
20	WCI 697T032P08
21	WCI 722T038P11
22	PLUG DISCON 9 PIN
23	SWITCH ON-OFF
24	SEAL
25	SCREW SELECT. SW. (NON-ILLUSTRATED)
26	WCI 139T026P02
