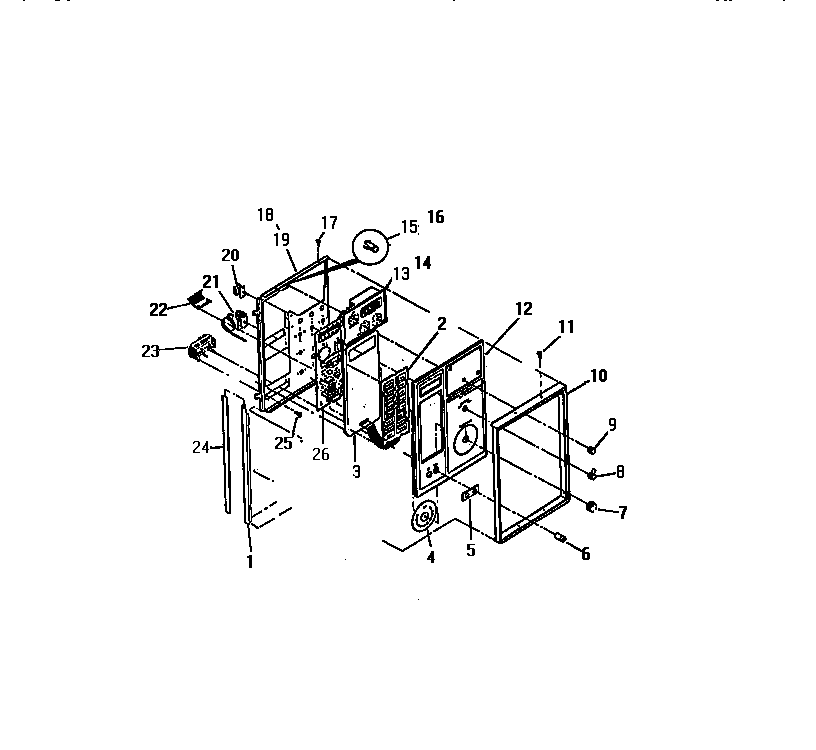

GC932EXD3 02 – CONTROL PANEL

Products

Position	Product
*38042	5303288565 Frigidaire Screw
*38040	WCI 636T069P05
*38044	WCI 665T151P03
*38041	SCREW BOARD (4)
*38043	SPACER - CONTROL PNL (2)
1	WCI 174T264P03
2	WCI 696T146P06
3	PANEL SWITCH
4	WCI 196T035P04
5	WCI 045T066P01
6	WCI 106T024P01
7	WCI 358T145P01
8	WCI 358T147P01
9	KNOB-CLOCK
10	TRIM CONTROL PNL
12	WCI 277T204S06
14	WCI 148T181P02
16	WCI Q280061
17	SCREW SW PNL. (7)
19	WCI Q279962
20	WCI 697T032P08
21	WCI 722T038P11
22	PLUG DISCON 9 PIN
23	SWITCH ON-OFF
24	SEAL
25	SCREW SELECT. SW. (NON-ILLUSTRATED)
26	WCI 139T026P02
