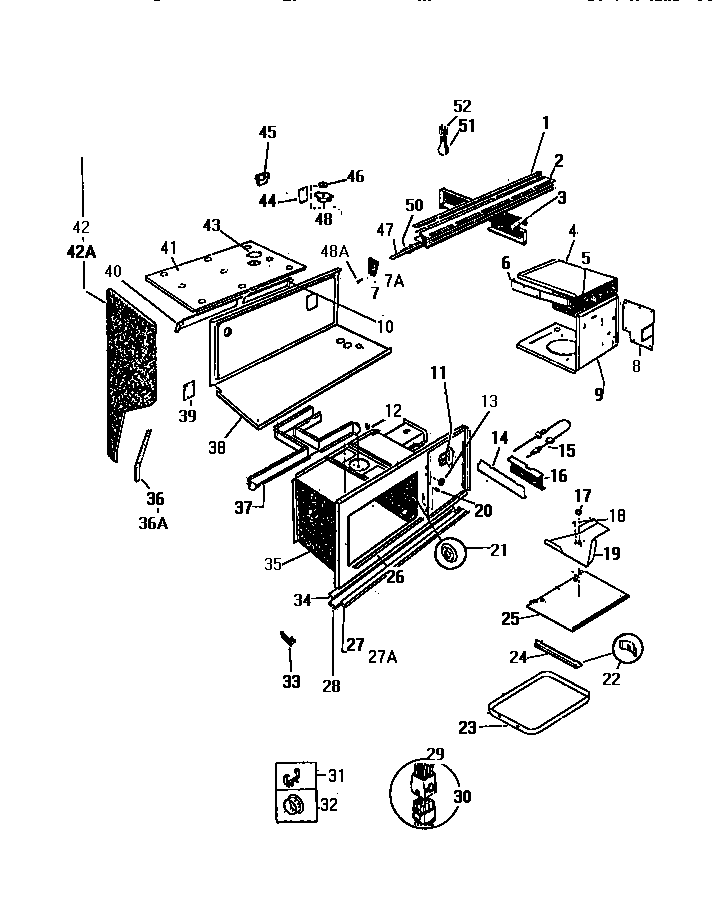

GC932EXD4 05 – UPPER BODY

Products

Position	Product
*38048	WCI 331T117P01
*38055	WCI 636T090P38
*38058	WCI 636T090P46
*38054	WCI 615T030P01
*38053	WCI 615T038P01
*38051	WCI 789T053P30
*38045	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
*38050	WCI Q279922
*38049	WCI 241T039P01
*38046	SCREW DUCT (2) (NON-ILLUSTRATED)
*38057	SCREW (2)
*38056	WCI 636T091P02
*38060	WCI Q280062
*38052	WCI 508T020P02
*38085	WCI Q279635
*38059	PLUG BUTTN. RACK GLIDES (8)
*38047	5303288566 Frigidaire Screw
1	WCI 612T101F01
2	WCI 740T454P01
3	WCI Q279975
4	BRACKET
5	BUSING
6	COVER DUCT
7A	CAP END RH
7	CAP END LH
8	COVER DUCT EXT.
9	WCI 211T044F04
10	WCI 655T307F02
11	RECEPTACLE
13	MEDALLION DR STRIKE
14	WCI 008T480P01
15	WCI 115T563P03
16	WCI 008T378F11
17	NUT STIRRER SHAFT TO FAN
18	WCI 636T095P31
19	WCI 239T043S02
20	GROMMET DOOR
21	WCI 479T084P01
22	WCI Q279955
23	WCI 763T006P01
24	GLIDE, TRAY (2)
25	WCI 174T242P01
26	TRIM FRONT
27	WCI 740T408F03
29	PLUG DISCONN. KIT OVN. ELMNT. WHITE
30	PLUG KIT
31	WCI Q279717
32	WCI 107T028P01
33	WCI 123T062P01
35	SEE PAGE 5 FOR PARTS
36A	WCI 740T309F02
36	WCI 740T309F01
37	WCI 211T046P01
38	WCI Q318045
39	WCI 694T065F01
40	WCI Q213163
41	WCI Q279652
42A	WCI Q279824
42	WCI Q279639
43	WCI 174T204F01
44	WCI 174T169F01
45	RECEPT HOOD ASSY.
46	WASHER
47	SEAL
48	WCI 115T463P01
48A	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
50	COVER, SEAL
51	BULB
52	WCI 662T027P02
