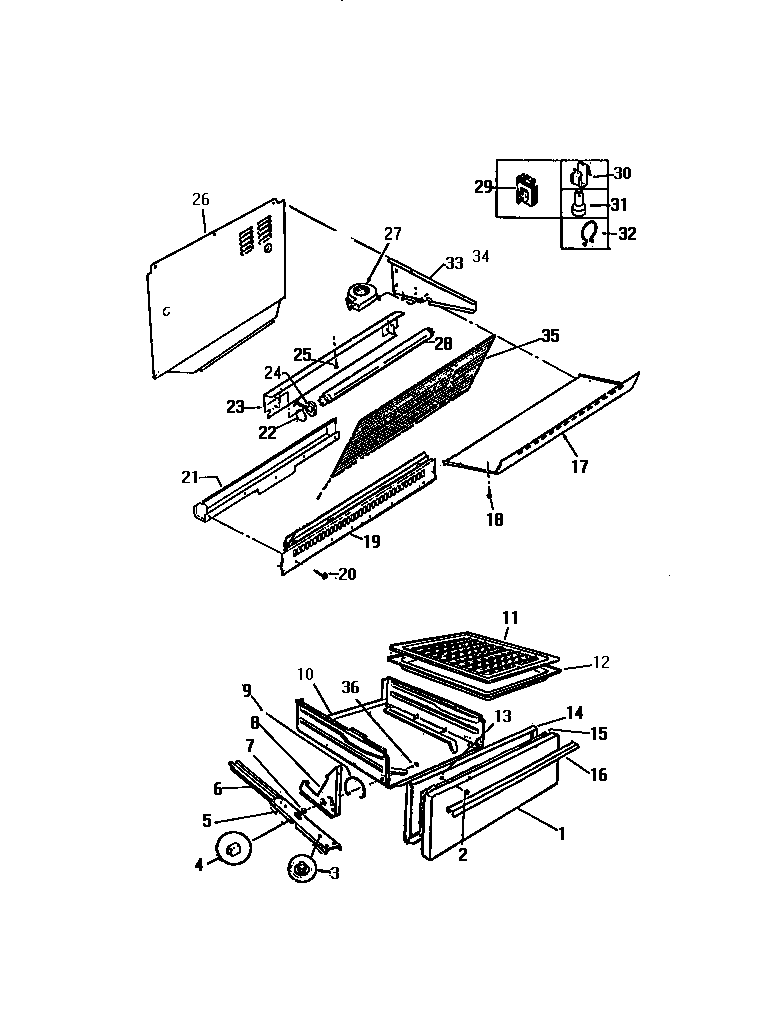

GC932EXD6 06 – SPLASHER, DRAWER

GC932EXD6 06 – SPLASHER, DRAWER

Written by

in

GC932EXD6 06 – SPLASHER, DRAWER

Products

PositionProduct
*70631SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
1WCI Q318040
2WASHER-HNDL SCREW
3BUTTON-GLIDE 27/64“ D.
4BUTTON-GUIDE
5CHANL-GLIDE UPPER LOT 1-9
6CHANNEL-GLIDE-LOWER LOT 1
7WCI Q279611
8WCI Q318037
8AWCI Q318038
9ASPRING-BROILR RH C-TYPE
9SPRING-BROILR LH C-TYPE
10WCI Q318036
11WCI Q318003
12WCI Q318002
135303292012 Frigidaire Oven Screw
14WCI Q318044
15INSULATION
16HANDLE-DOOR
17WCI 513T073F18
19WCI 740T448W01
205303300265 Frigidaire Oven Screw
21WCI Q213195
22WCI 331T052P01
23WCI Q213185
24RECEPT-FLUOR LT (2)
25WCI 636T128P01
26WCI Q213194
27WCI 046T003P03
28WCI Q64633
29WCI 030T012P01
30FSTNR CABLE CLAMP
31711T047P93 Frigidaire Oven Terminal
32WCI Q279635
33WCI 289T069F01
34WCI Q213186
35GLASS SPLASHER O/U
36PIN, HINGE (2)
