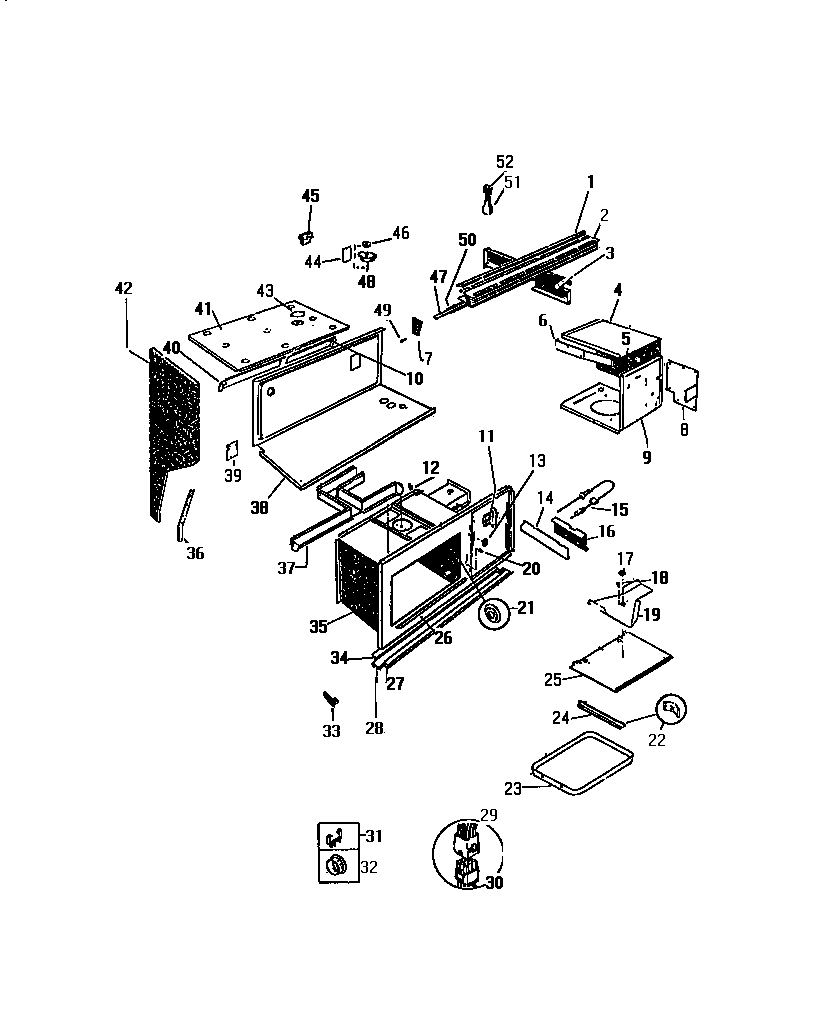

GC932EXD7 05 – UPPER BODY

Products

Position	Product
*70620	WCI 331T117P01
*70603	WCI Q279835
*70625	WCI 636T091P02
*70600	WCI 789T053P30
*70601	WCI 615T030P01
*70629	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
*70623	WCI 636T090P46
*70624	SCREW (2)
*70628	WCI 636T090P38
*70604	WCI 241T039P01
*70622	WCI Q280062
*70621	WCI 508T020P02
*70626	5303288566 Frigidaire Screw
*70627	SCREW DUCT (2) (NON-ILLUSTRATED)
*70602	WCI Q279922
*70630	WCI 615T036P01
*70605	PLUG BUTTN. RACK GLIDES (8)
2	WCI 740T454P01
3	WCI Q279975
4	BRACKET
6	COVER DUCT
7A	CAP END RH
7	CAP END LH
8	COVER DUCT EXT.
9	WCI 211T044F04
10	WCI 655T307F02
11	RECEPTACLE
13	MEDALLION DR STRIKE
14	WCI 008T480P01
15	WCI 115T563P03
16	WCI 008T378F11
17	NUT STIRRER SHAFT TO FAN
18	WCI 636T095P31
19	WCI 239T043S02
20	GROMMET DOOR
21	WCI 479T084P01
22	WCI Q279955
23	WCI 763T005P01
24	GLIDE, TRAY (2)
25	WCI 174T242P01
26	TRIM FRONT
27	TRIM – BOTTOM
29	PLUG DISCONN. KIT OVN. ELMNT. WHITE
30A	WCI 612T101F01
30	PLUG KIT
31	WCI Q279717
32	BUSING
33	WCI 123T082P01
36	WCI 740T309F01
36A	WCI 740T309F02
37	WCI 211T046P01
38	WCI Q318045
39	WCI 694T065F01
40	WCI Q213163
41	WCI Q279652
42	WCI Q279839
42A	WCI Q279824
43	WCI 174T204F01
44	WCI 174T169F01
45	RECEPT HOOD ASSY.
46	WASHER
47	SEAL
48	WCI 115T463P01
49	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
50	COVER, SEAL
51	BULB
52	WCI 662T027P02
