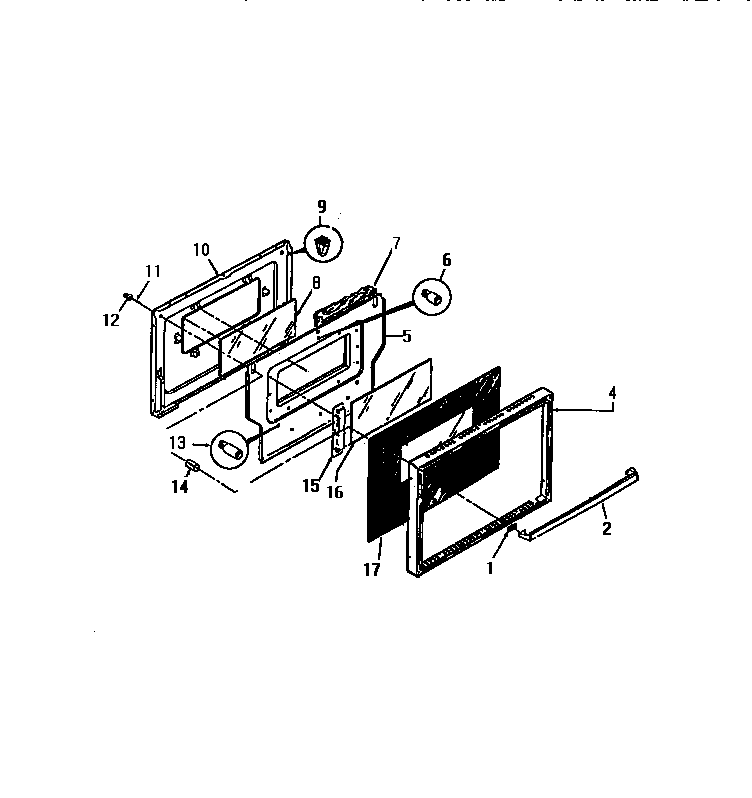

GC932EXD8 08 – LOWER DOOR

Products

Position	Product
*70636	5303300265 Frigidaire Oven Screw
*70634	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
*70635	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
1	WCI 665T125P01
2	HANDLE-LATCH MECH.
4	TRIM, DOOR
5	SHIELD, WOOL
6	WCI Q213197
7	INSUL-WOOL 2 X 16 1/4 X 28“
9	WCI Q280063
10	WCI Q318035
11	WCI 636T138P06
12	WASHR-HNDL SCRW (2) (NON-ILLUSTRATED)
13	WCI Q213196
14	SPACER, HANDLE MOUNTING
15	WCI 072T684F01
16	GLASS, MIDDLE
17	GLASS, OUTER
