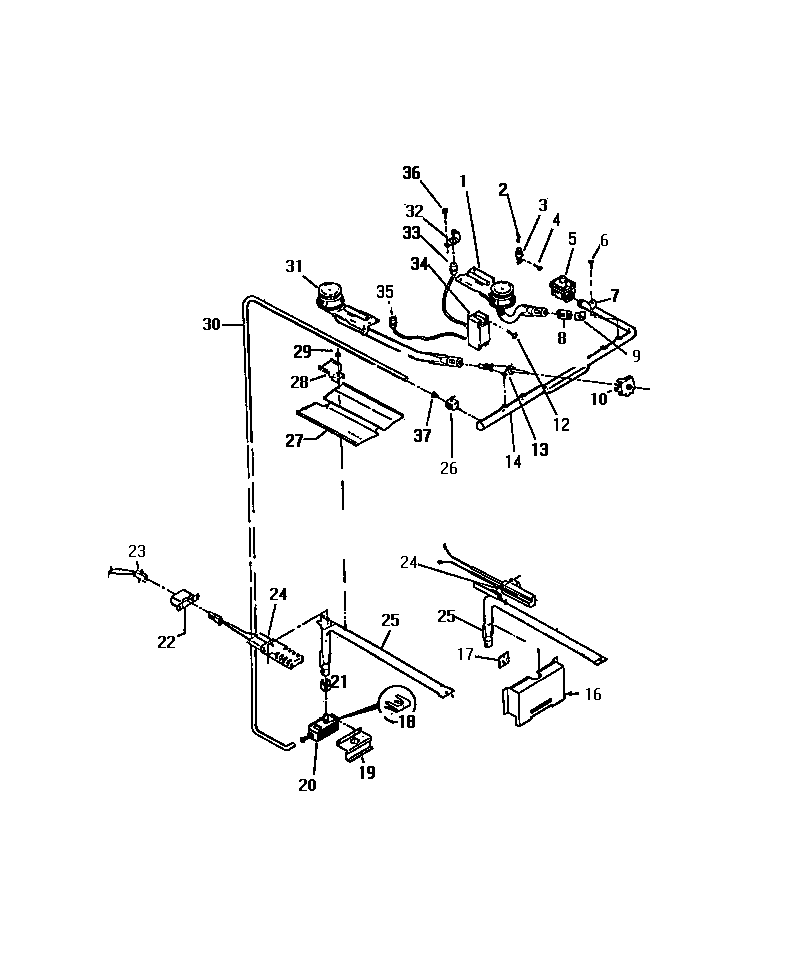

GC932EXD9 09 – BURNER ASSY.

Products

Position	Product
*70637	SEAL ``O``RING
*70638	WCI Q318034
*70606	HEX NUT FUSE
1	WCI 080T015O01
2	WCI 260T007P02
3	RECEPTACLE, FUSE HOLDER
4	SCREW (4) (NON-ILLUSTRATED)
5	CONTRL-PRESSURE REGULATOR
6	SCREW TRIM MTG (5) (NON-ILLUSTRATED)
7	WCI 008T276F04
9	MIXER-AIR-TP BURNER LOT 7-11 (4)
10	316035200 Frigidaire Ignition Switch
12	5303017863 Frigidaire Screw
13	VALVE, TOP BURNERS (4)
14	WCI 439T046P07
16	COVER, SAFETY VALVE
17	WCI 709T041P01
18	WCI Q213192
19	WCI 072T655F01
20	WCI 774T117S05
21	MIXER-AIR-OVN BURNR
23	HARNESS-IGNITER
24	5303935066 Frigidaire Oven Flat Igniter 17" Leads
25	WCI 079T025P13
26	WCI 774T121P01
27	WCI 024T160F01
29	5303013272 Frigidaire Oven Nut
30	TUBE, OVEN SUPPLY
31	BURNERS-TOP-REAR (2)
32	3016993 Frigidaire Oven Retainer
33	WCI 036T049S10
34	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
35	WCI 036T049S11
36	SCREW-RETAINER MTG 8-18 X 3/8`` PH TR TP (2)
37	WCI 247T079P01
