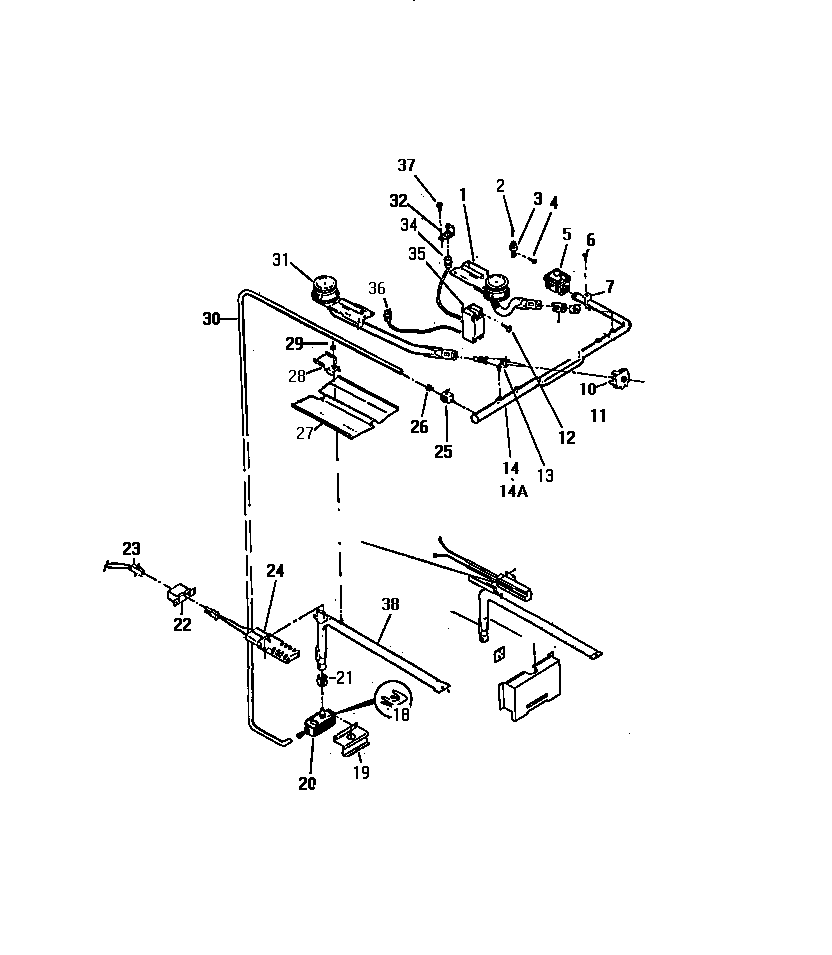

GC932EXF0 09 – BURNERS, MANIFOLD & CONTROLS

Products

Position	Product
1	WCI 080T013P01
2	WCI 260T007P02
3	RECEPTACLE, FUSE HOLDER
4	WCI 636T089P06
5	CONTRL-PRESSURE REGULATOR
6	SCREW TRIM MTG (5) (NON-ILLUSTRATED)
7	WCI 008T276F04
8	MIXER-AIR-TP BURNR
10	316035200 Frigidaire Ignition Switch
11	WCI Q318034
12	5303017863 Frigidaire Screw
13	VALVE, TOP BURNERS (4)
14	WCI 439T046P13
18	WCI Q213192
19	WCI 072T655F01
20	WCI 774T117S05
21	WCI 457T005R01
22	TUBE-IGNITER MTG
23	HARNESS-IGNITER
24	IGNITER-UPPER OVEN
25	WCI 774T121P01
26	WCI 247T079P01
27	WCI 024T160F01
28	WCI 655T369F01
29	5303013272 Frigidaire Oven Nut
30	TUBE, OVEN SUPPLY
31	WCI 080T013P02
32	3016993 Frigidaire Oven Retainer
34	WCI 036T049S10
35	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
36	WCI 036T049S11
37	SCREW-RETAINER MTG 8-18 X 3/8`` PH TR TP (2)
38	WCI 079T025P09
