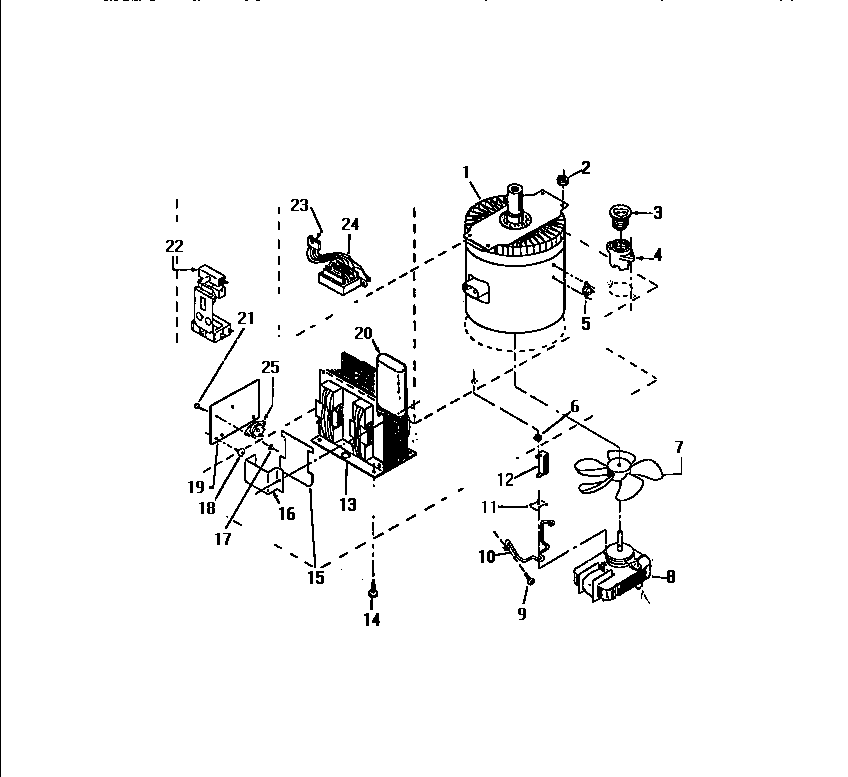

GC932EXF4 03 – POWER CONTROL

Products

Position	Product
*38083	WCI 636T069P15
*38082	WCI 636T090P18
*38081	WCI 636T090P46
*38079	WCI Q213193
*38084	WCI 636T074P10
*38078	WCI Q213187
*38080	WCI 636T095P16
1	WCI 423T015P02
2	NUT (NON-ILLUSTRATED)
3	FUSE
4	SOCKET
5	SWITCH
6	NUT STIRRER SHAFT TO FAN
7	WCI 239T134P01
8	MOTOR FAN
10	ROD MOTOR (2)
11	CHANNEL
12	WCI 115T198P01
13	WCI 115T737P01
14	SCREW, TRANS (4)
15	SHIELD CAPACITOR
16	RETAINER
17	NUT (2)
18	SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
19	WCI 554T338F02
20	WCI 157T029P03
21	SCREW (2)
22	SWITCH KIT (+)
23	WCI 558T028P01
24	TRANSFORMER LV
25	WCI 355T515S02
