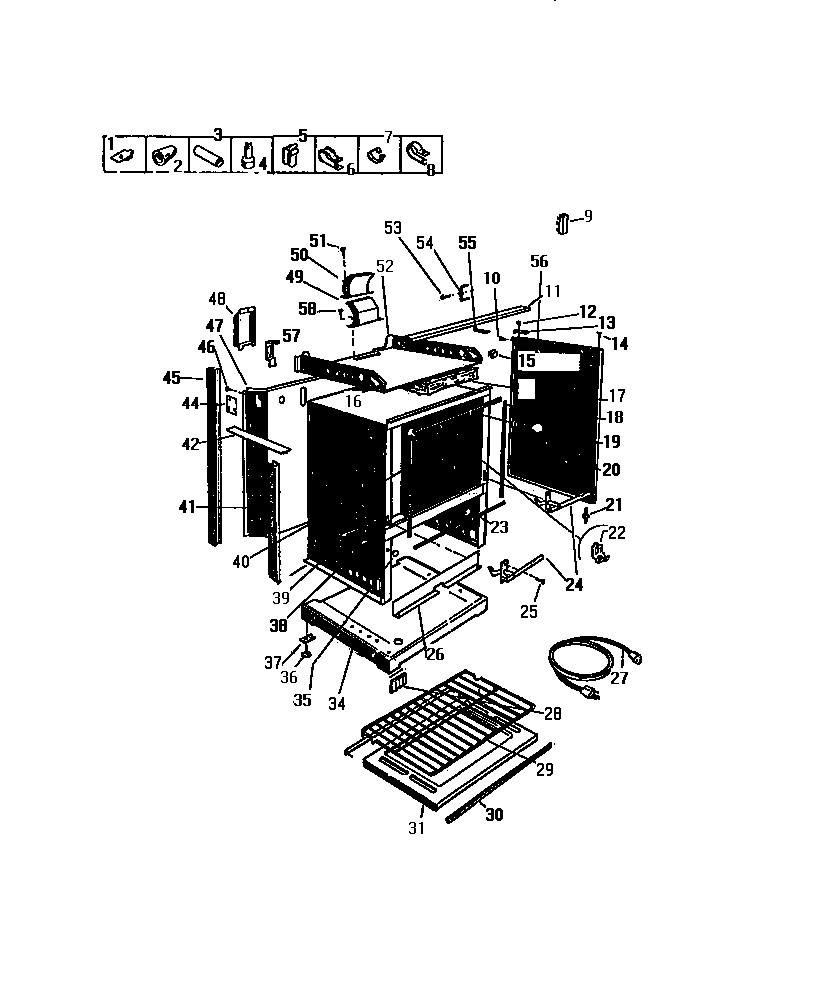

GC932EXF5 10 – BODY, SIDE PANELS

Products

Position	Product
*70608	WCI 597T040P01
*70607	PLATE-RECEPTACLE
*70640	TOUCH-UP PAINT, 1 OUNCE, COFFEE
1	FASTENER-HINGE
2	WCI 174T133P02
3	SLEEVE, INSULATOR
4	711T047P93 Frigidaire Oven Terminal
5	WCI Q213191
6	WCI 145T055P01
7	WCI Q279917
8	WCI Q279836
9A	HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUSTRATED)
9	WCI 709T033P02
9C	WCI 636T095P36
9B	WCI 636T095P13
11	WCI Q318031
12	WCI 636T091P12
13	GLIDE, MAIN TOP (2)
14	SCREW-UPR OVN ASSY 6A X 3/8“ PH PAN W/ L NIBS (5)
15	FSTNR CABLE CLAMP
16	WCI 655T301F01
17	WCI Q134234
18	SEAL, DOOR SIDES (2)
19	WCI Q63749
20	SOCKET, OVEN LIGHT
21	PIN-BODY PNL-GUIDE (2)
22	5303284616 Frigidaire Range Bulb Clip Thermostat
23	WCI 647T061P02
24B	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
24	CAM, OVN DR, LH
24A	CAM, OVN DR, RH
26	SHIELD-WOOL-LWR FRONT
27	WCI 171T030P01
28	WCI 136T283F01
29	RACK-DOOR
30	SEAL-DR TOP & BTM
31	WCI Q318025
31A	SCREW-OVN BTM 8-18 X 1“ BPT KNRLD HD (2) (NON-ILLUSTRATED)
34	WCI Q318033
35	BUTTON-GLIDE 27/64“ D.
36	WCI 636M004P01
37	FASTNR-LEVEL LEG (4)
38	SCREW-SHOULDER 8A X 3/8“ (4)
39	SPRING-OVN DR CAM (2)
40	RETAINER-OVN BURNR LOT 3
41	TRIM-PNL-VERTICAL (2)
42	WCI 740T365P02
42A	WCI 740T365P01
44	WCI 694T088F01
45	WCI 136T148W05
47	WCI 021T043F04
48	COVER-IGNITER
49	WCI 250T013W01
50	WCI Q213188
51	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
52	WCI Q318032
54	HINGE-MAIN TOP (2)
55	5303289684 Frigidaire FASTENER
56	WCI Q318028
57	WCI 072T612F02
58	SCRW-REFLECTR MTG 8-18 X 1/2“ PH TR TP (NON-ILLUSTRATED)
