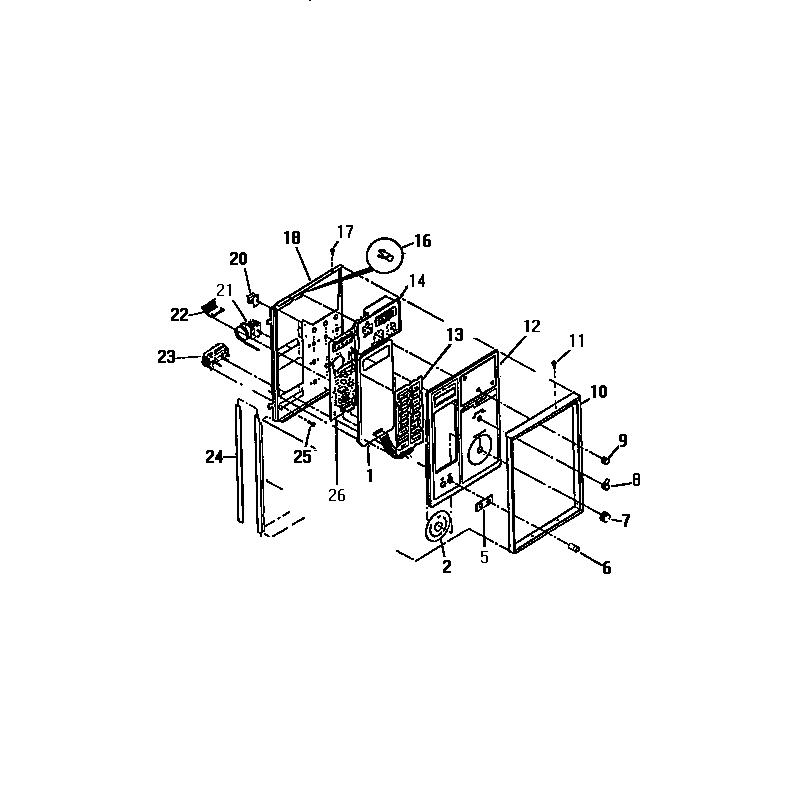

GC932EXF6 02 – CONTROL PANEL

Products

Position	Product
*70610	5303288565 Frigidaire Screw
*70611	SCREW BOARD (4)
*70612	WCI 636T069P06
1	WCI 511T048P02
2	WCI 196T035P04
5	WCI 045T066P01
6	WCI 106T024P01
8	WCI 358T147P01
9	KNOB-CLOCK
10	TRIM CONTROL PNL
12	WCI 277T204S06
13	WCI 695T146P06
14	WCI 148T181P02
16	WCI Q280061
17	SCREW SW PNL. (7)
18	WCI Q279962
20	WCI 697T032P08
21	WCI 722T038P11
22	PLUG DISCON 9 PIN
23	SWITCH ON-OFF
24	SEAL
25	SCREW SELECT. SW. (NON-ILLUSTRATED)
26	WCI 139T026P02
