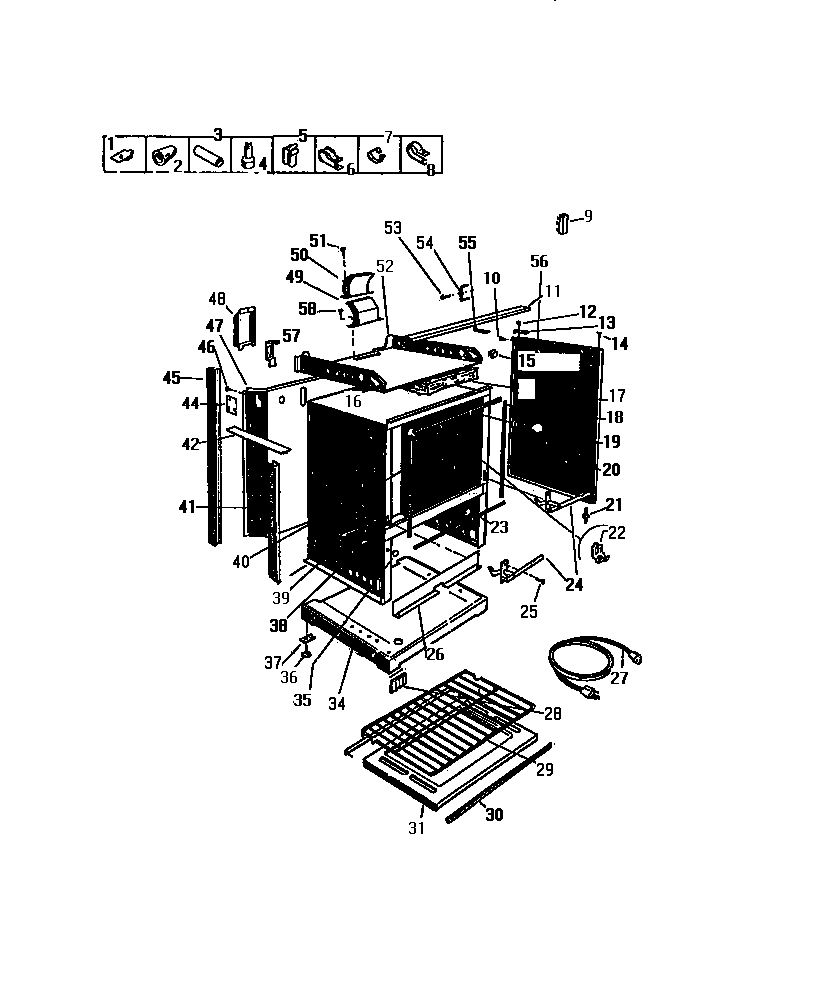

GC932EXF6 10 – BODY, SIDE PANELSadmin2025-04-26T09:30:14+00:00GC932EXF6 10 – BODY, SIDE PANELS
Products
| Position | Product |
|---|
| *70608 | WCI 597T040P01 |
| *70607 | PLATE-RECEPTACLE |
| *70640 | TOUCH-UP PAINT, 1 OUNCE, COFFEE |
| 1 | FASTENER-HINGE |
| 2 | WCI 174T133P02 |
| 3 | SLEEVE, INSULATOR |
| 4 | 711T047P93 Frigidaire Oven Terminal |
| 5 | WCI Q213191 |
| 6 | WCI 145T055P01 |
| 7 | WCI Q279917 |
| 8 | WCI Q279836 |
| 9A | HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUSTRATED) |
| 9 | WCI 709T033P02 |
| 9C | WCI 636T095P36 |
| 9B | WCI 636T095P13 |
| 11 | WCI Q318031 |
| 12 | WCI 636T091P12 |
| 13 | GLIDE, MAIN TOP (2) |
| 14 | SCREW-UPR OVN ASSY 6A X 3/8`` PH PAN W/ L NIBS (5) |
| 15 | FSTNR CABLE CLAMP |
| 16 | WCI 655T301F01 |
| 17 | WCI Q134234 |
| 18 | SEAL, DOOR SIDES (2) |
| 19 | WCI Q63749 |
| 20 | SOCKET, OVEN LIGHT |
| 21 | PIN-BODY PNL-GUIDE (2) |
| 22 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 23 | WCI 647T061P02 |
| 24B | KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED) |
| 24 | CAM, OVN DR, LH |
| 24A | CAM, OVN DR, RH |
| 26 | SHIELD-WOOL-LWR FRONT |
| 27 | WCI 171T030P01 |
| 28 | WCI 136T283F01 |
| 29 | RACK-DOOR |
| 30 | SEAL-DR TOP & BTM |
| 31 | WCI Q318025 |
| 31A | SCREW-OVN BTM 8-18 X 1`` BPT KNRLD HD (2) (NON-ILLUSTRATED) |
| 34 | WCI Q318033 |
| 35 | BUTTON-GLIDE 27/64`` D. |
| 36 | WCI 636M004P01 |
| 37 | FASTNR-LEVEL LEG (4) |
| 38 | SCREW-SHOULDER 8A X 3/8`` (4) |
| 39 | SPRING-OVN DR CAM (2) |
| 40 | RETAINER-OVN BURNR LOT 3 |
| 41 | TRIM-PNL-VERTICAL (2) |
| 42 | WCI 740T365P02 |
| 42A | WCI 740T365P01 |
| 44 | WCI 694T088F01 |
| 45 | WCI 136T148W05 |
| 47 | WCI 021T043F04 |
| 48 | COVER-IGNITER |
| 49 | WCI 250T013W01 |
| 50 | WCI Q213188 |
| 51 | SCREW-DR ASSY 8A X 3/8`` PH TR HD (10) |
| 52 | WCI Q318032 |
| 54 | HINGE-MAIN TOP (2) |
| 55 | 5303289684 Frigidaire FASTENER |
| 56 | WCI Q318028 |
| 57 | WCI 072T612F02 |
| 58 | SCRW-REFLECTR MTG 8-18 X 1/2`` PH TR TP (NON-ILLUSTRATED) |
