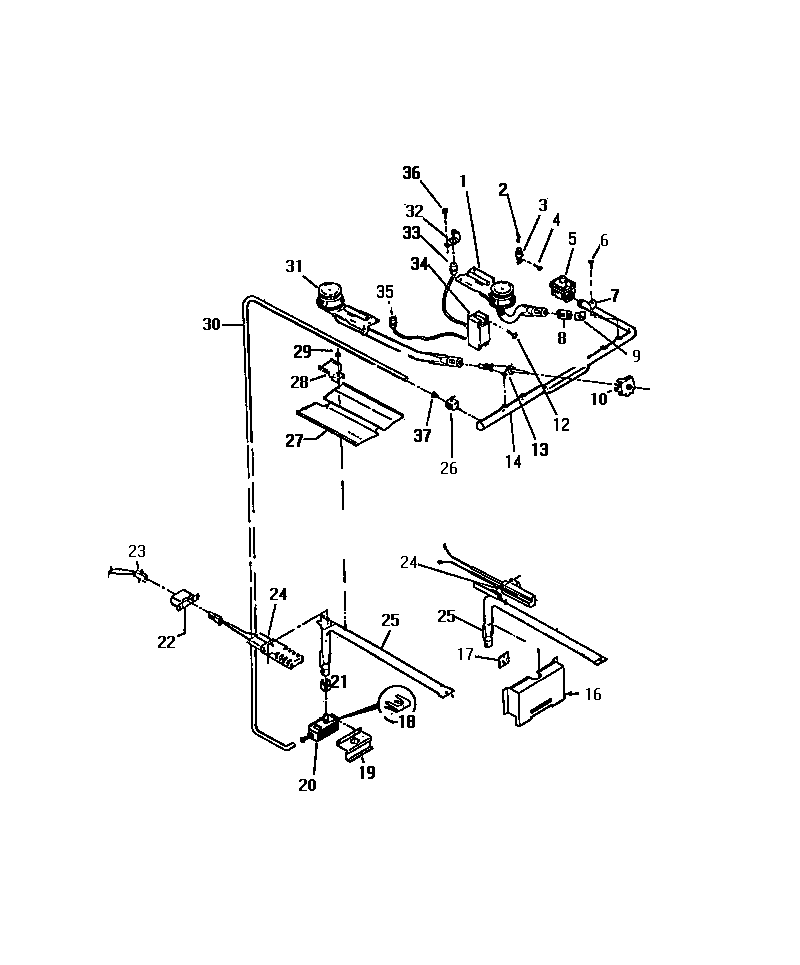

GC932EXF7 09 – BURNER ASSY.

Products

Position	Product
*70637	SEAL ``O``RING
*70606	HEX NUT FUSE
*70638	WCI Q318034
1	WCI 080T013P01
2	WCI 260T007P02
3	RECEPTACLE, FUSE HOLDER
4	SCREW (4) (NON-ILLUSTRATED)
5	CONTRL-PRESSURE REGULATOR
6	SCREW TRIM MTG (5) (NON-ILLUSTRATED)
7	WCI 008T276F04
8	MIXER-AIR-TP BURNR
10	316035200 Frigidaire Ignition Switch
12	5303017863 Frigidaire Screw
13	VALVE, TOP BURNERS (4)
14	WCI 439T046P07
18	WCI Q213192
19	WCI 072T655F01
20	WCI 774T117S05
21	MIXER-AIR-OVN BURNR
22	TUBE-IGNITER MTG
23	HARNESS-IGNITER
24	IGNITER-OVN BURNER LOT 3
25	WCI 079T025P09
26	WCI 774T121P01
27	WCI 024T160F01
28	SHIELD-OVEN BOTTOM
29	5303013272 Frigidaire Oven Nut
30	TUBE, OVEN SUPPLY
31	WCI 080T013P02
32	3016993 Frigidaire Oven Retainer
33	WCI 036T049S10
34	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
35	WCI 036T049S11
36	SCREW-RETAINER MTG 8-18 X 3/8`` PH TR TP (2)
37	WCI 247T079P01
