GC932EXH0 04 – UPPER DOOR – Aparts

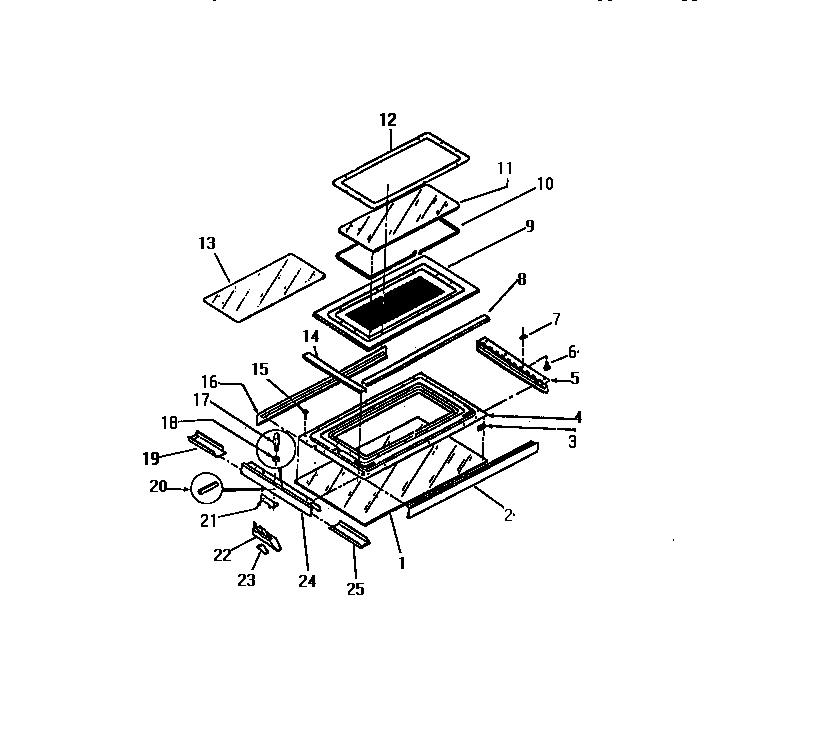

GC932EXH0 04 – UPPER DOOR

Products

Position	Product
1	WCI 276T086P42
2	WCI 233T027P02
3	WCI 655T165P01
4	WCI Q279981
5	EXTRUSION HINGE
7	WCI Q279659
8	SEAL
9	WCI Q279982
10	WCI 707R001P01
11	WCI 276T081P02
12	WCI Q279983
13	LINER
14	SEAL
15	SCREW SW PNL. (7)
16	EXTRUSION
17	SCREW
18	NUT (2)
19	WCI 322T010P02
20	ROLL PIN
21	WCI 676T072P02
22	HANDLE (BLACK)
23	WCI 321T021P09
24	EXTRUSION
25	INSERT DR. BOTTOM
