GC932EXH3 06 – SPLASHER & LOWER DRAWER – Aparts

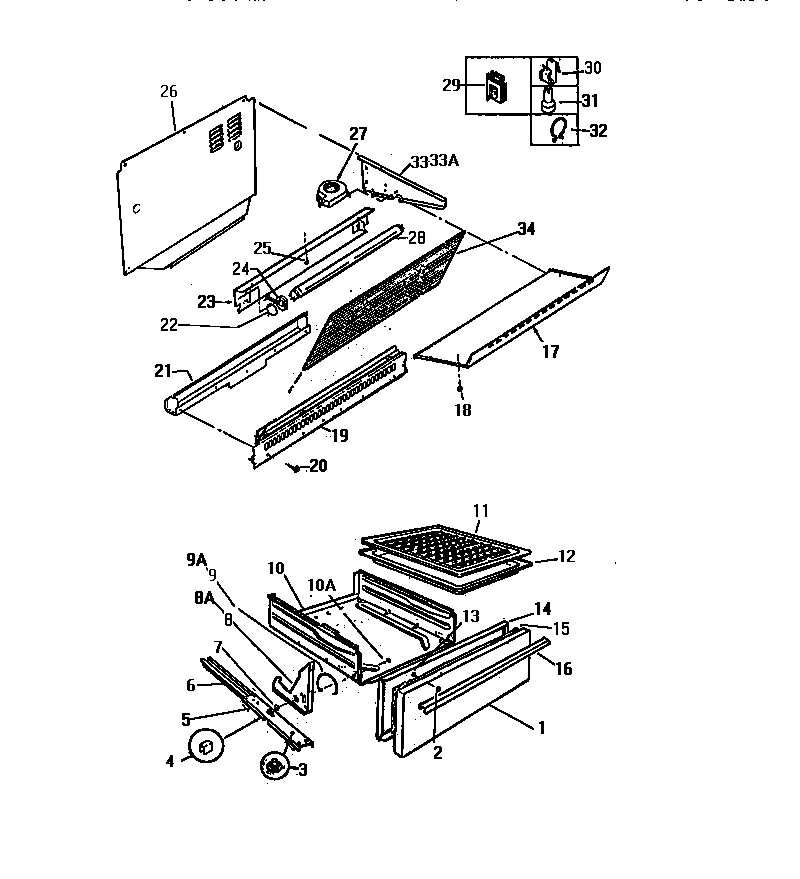

GC932EXH3 06 – SPLASHER & LOWER DRAWER

Products

Position	Product
*38062	WCI 636T1399P01
1	WCI Q318043
2	WCI 709T053P12
3	BUTTON-GLIDE 27/64`` D.
4	BUTTON-GUIDE
5	WCI 135T282F02
6	CHANNEL-GLIDE-LOWER LOT 1
7	WCI Q279611
8	WCI Q318037
8A	WCI Q318038
9	WCI 676T079P01
9A	WCI 676T079P02
10	WCI Q318036
10A	PIN, HINGE (2)
11	WCI Q318003
12	WCI Q318002
13	5303292012 Frigidaire Oven Screw
14	WCI Q318044
15	INSULATION
16	HANDLE-DOOR
17	WCI 513T073F18
19	WCI 740T448W01
20	5303300265 Frigidaire Oven Screw
21	WCI Q213195
22	WCI 331T052P01
23	WCI Q213185
24	RECEPT-FLUOR LT (2)
25	WCI 636T128P01
26	WCI Q213194
27	WCI 046T003P03
28	WCI Q64633
29	WCI 030T012P01
30	FSTNR CABLE CLAMP
31	711T047P93 Frigidaire Oven Terminal
32	WCI Q279635
33	WCI 289T069F01
33A	WCI Q213186
34	GLASS SPLASHER O/U
