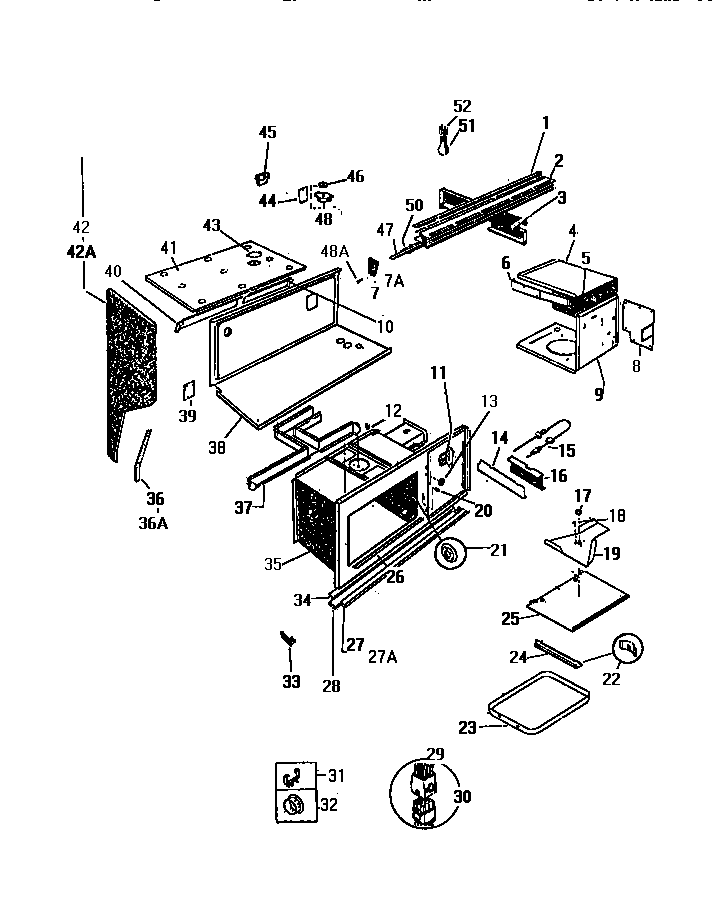

GC932EXW3 05 – UPPER BODY
Products
| Position | Product |
|---|---|
| *38052 | WCI 508T020P02 |
| *38045 | SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED) |
| *38046 | SCREW DUCT (2) (NON-ILLUSTRATED) |
| *38050 | WCI Q279922 |
| *38051 | WCI 789T053P30 |
| *38053 | WCI 615T038P01 |
| *38054 | WCI 615T030P01 |
| *38058 | WCI 636T090P46 |
| *38057 | SCREW (2) |
| *38055 | WCI 636T090P38 |
| *38056 | WCI 636T091P02 |
| *38060 | WCI Q280062 |
| *38085 | WCI Q279635 |
| *38048 | WCI 331T117P01 |
| *38059 | PLUG BUTTN. RACK GLIDES (8) |
| *38047 | 5303288566 Frigidaire Screw |
| *38049 | WCI 241T039P01 |
| 42 | WCI Q279838 |
| 42A | WCI Q279823 |
| 43 | WCI 174T204F01 |
| 44 | WCI 174T169F01 |
| 45 | RECEPT HOOD ASSY. |
| 46 | WASHER |
| 47 | SEAL |
| 48 | WCI 115T463P01 |
| 48A | SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED) |
| 50 | COVER, SEAL |
| 51 | BULB |
| 52 | WCI 662T027P02 |
