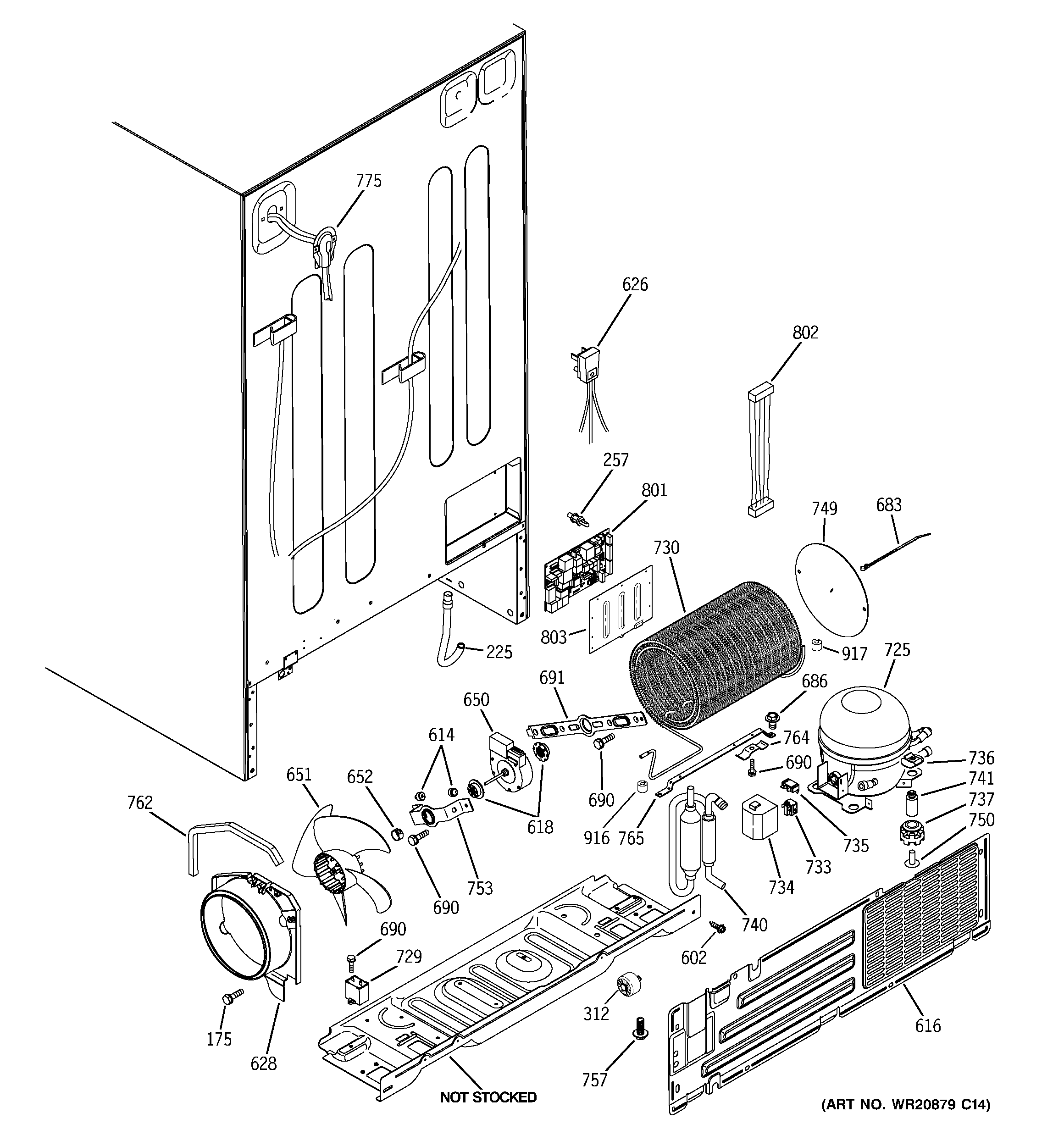

GCA23LBYAFSS SEALED SYSTEM & MOTHER BOARD

GCA23LBYAFSS SEALED SYSTEM & MOTHER BOARD

Written by

in

GCA23LBYAFSS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
312WR02X10695 GE Refrigerator Wheel
614BUMPER
616GEN WR82X10100
618WR02X11331 GE Refrigerator Grommet
626GEN WR23X10684
628WR17X12668 GE Refrigerator Condenser Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10103 GE Refrigerator Compressor Replacement Kit R134A
729WR62X10013 GE Refrigerator Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733GEN WR07X10114
734GEN WR02X13160
735GEN WR08X10110
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X10796 GE Refrigerator Water Line Cover
801WR55X26733 GE Refrigerator Control Board
802WR23X10504 GE Refrigerator Harness Board INDIV
803WR02X12025 GE Main Board Enclosure
916WR02X13569 GE Refrigerator Sound Damper
917WR02X13573 GE Refrigerator Sound Damper
