GCA24KBBAFSS FRESH FOOD SECTION

GCA24KBBAFSS FRESH FOOD SECTION

Written by

in

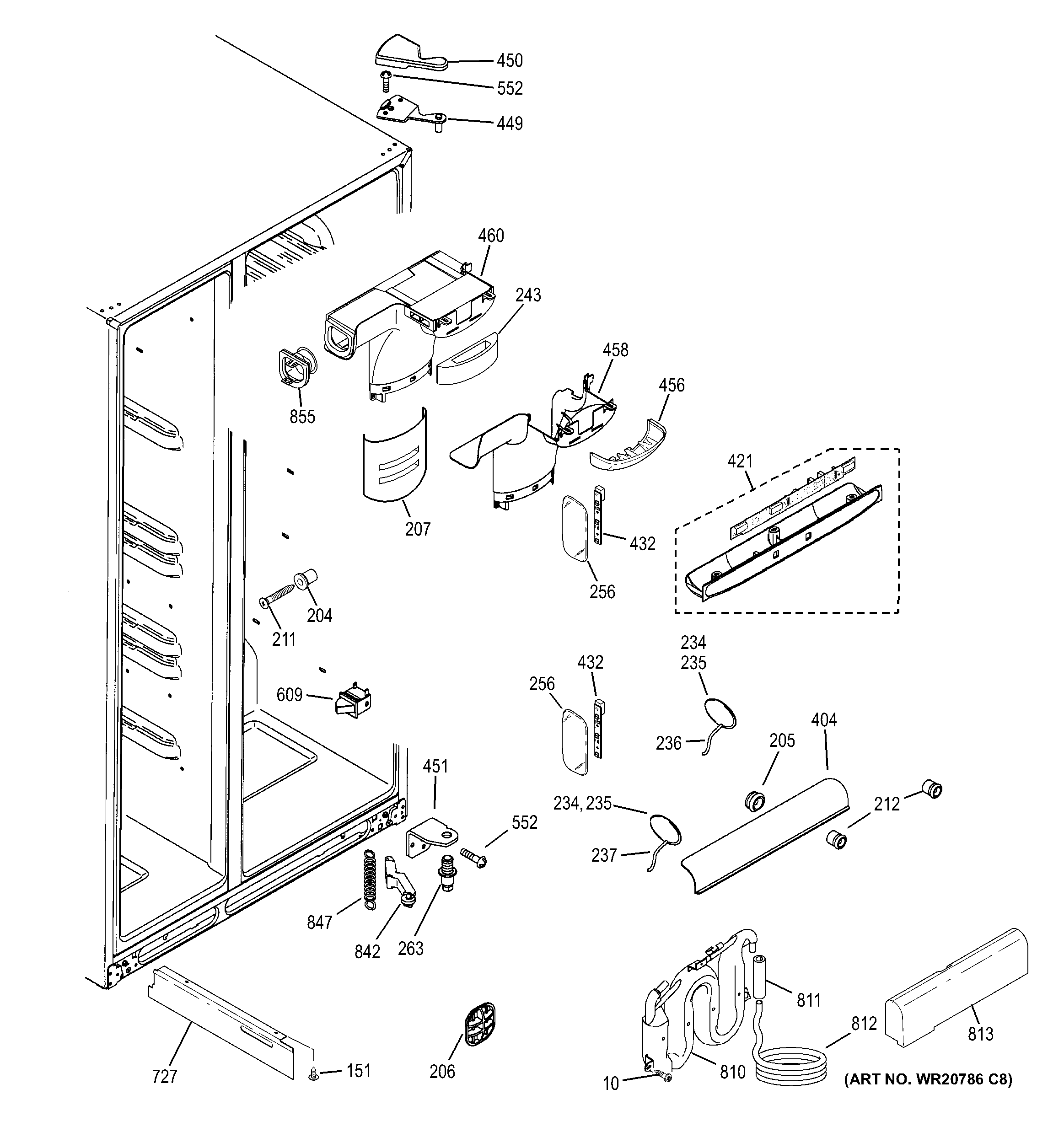

GCA24KBBAFSS FRESH FOOD SECTION

Products

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212GROMMET BASE GRILLE
212WR02X10689 GE Refrigerator Base Grille Grommet
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
256WR17X12871 GE Refrigerator LED Cover
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
421GEN WR55X11167
432WR55X11032 GE Refrigerator Board LED Light Assembly
449WR13X10215 GE Refrigerator Top Hinge & Pin
450WR02X13052 GE Hinge Cover
451WR13X10167 GE Refrigerator Bottom Hinge Black
456WR17X12977 GE Door Gasket Cover Assembly
458WR17X12881 GE Refrigerator Inlet Cover
460WR49X10252 GE Refrigerator Cover Assembly Inlet
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12382 GE Air Separator Hinge Side
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
