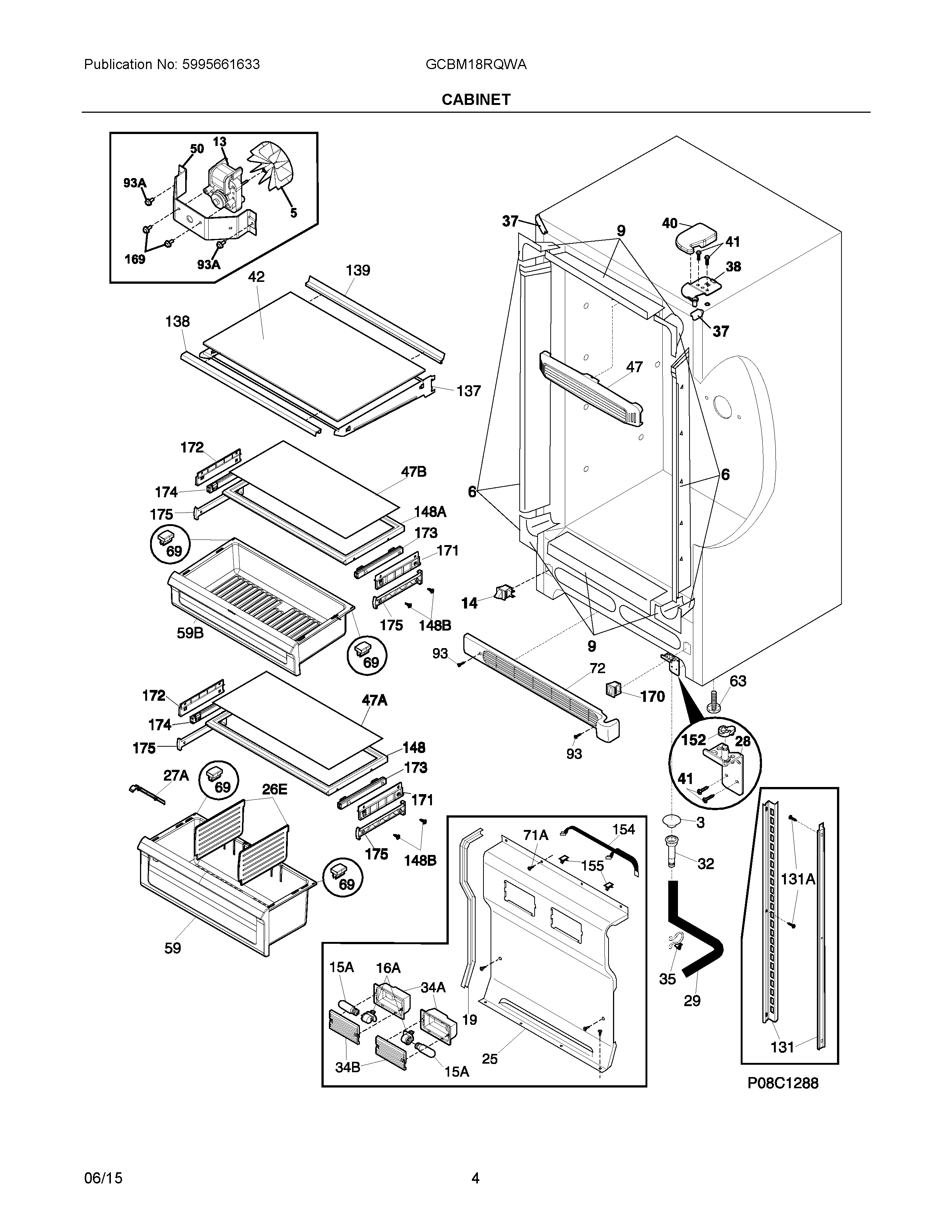

GCBM18RQWA 03 – CABINET

GCBM18RQWA 03 – CABINET

Written by

in

GCBM18RQWA 03 – CABINET

Products

PositionProduct
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NIWCI 5303313703
NIA240494003 Frigidaire Refrigerator Plug-Button
NIAAWCI 297242900
NI241853202 Frigidaire Refrigerator Screw
NIWCI 5303311565
NI216858001 Frigidaire Refrigerator Screw
NIWCI 297001708
NIA301036 Frigidaire Refrigerator Insert Nut
NI216337701 Frigidaire Refrigerator Screw
1297222500 Frigidaire Refrigerator Lock-Catch
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14297243800 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139500 Frigidaire Refrigerator Socket
18216591506 Frigidaire Refrigerator Temperature Control Knob
20297121900 Frigidaire Shelf Support
21297216042 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297421403
28WCI 216335600
29WCI 216361901
31297165800 Frigidaire Refrigerator Drain Pan
33WCI 297421501
35216273000 Frigidaire Refrigerator Strap
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38A297215900 Frigidaire Top Door Hinge
425304494905 Frigidaire Refrigerator Shelf
435304494906 Frigidaire Refrigerator Shelf
49297471401 Frigidaire Refrigerator Trivet
50WCI 08013207
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AWCI 216395801
72WCI 216330500
86216036601 Frigidaire Refrigerator Screw
92241710601 Frigidaire Refrigerator Screw
101WCI 216335700
105WCI 297439601
109WCI 297014200
110216377000 Frigidaire Refrigerator Drain Trough
111WCI 297141400
112WCI 216381300
113WCI 216383602
114WCI 297014400
115WCI 297439602
116WCI 216383800
120WCI 297206600
121WCI 297206500
122WCI 216429601
124WCI 216658501
126WCI 216658601
129WCI 216393301
130297244700 Frigidaire Refrigerator Support
131WCI 297122000
133WCI 216658401
134240578902 Frigidaire Screw Mounting Hinge
1595304506337 Frigidaire Refrigerator Dial
160WCI 297096100
169216912401 Frigidaire Refrigerator Screw
208WCI 216504500
