GCCE3049AS 02 – CONTROL PANEL

GCCE3049AS 02 – CONTROL PANEL

Written by

in

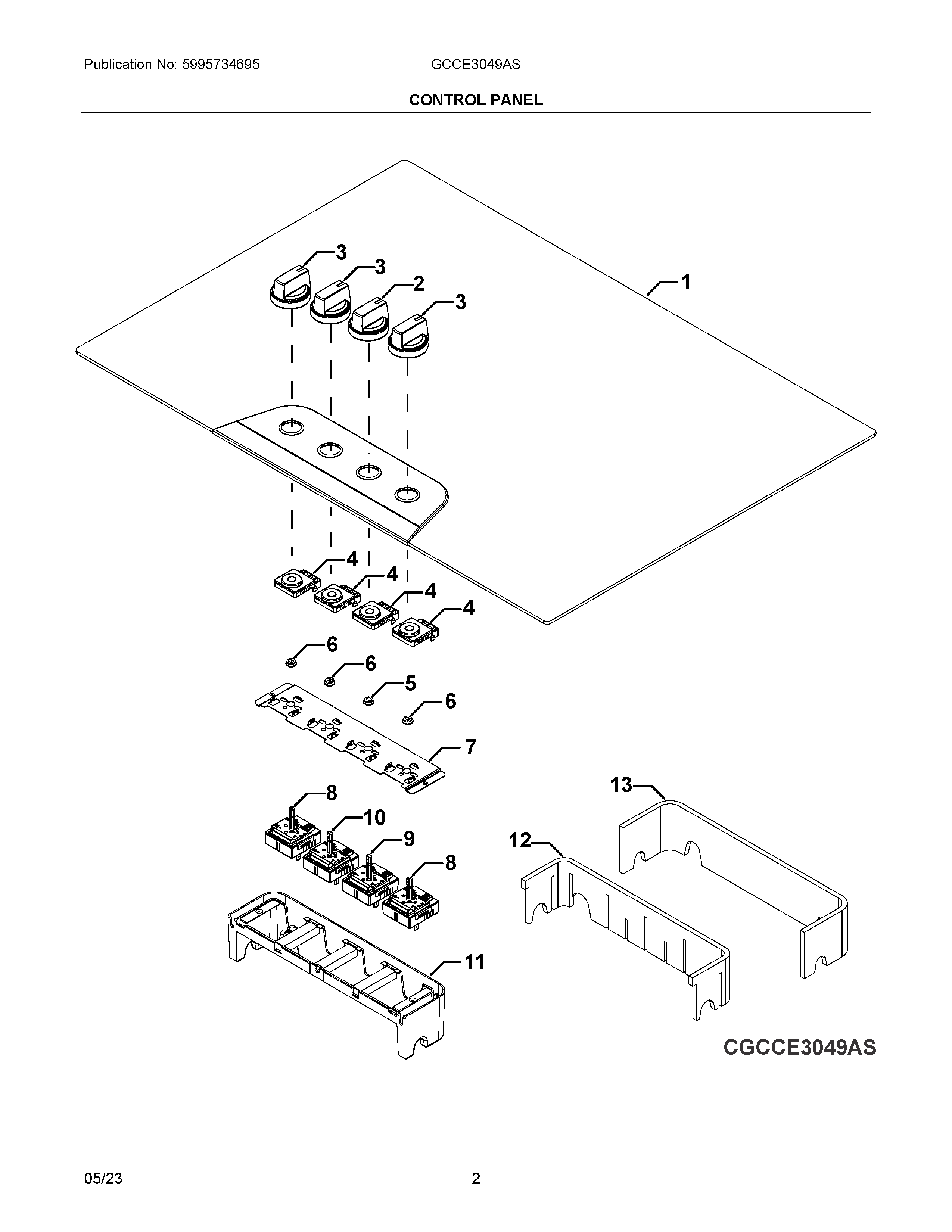

GCCE3049AS 02 – CONTROL PANEL

Products

PositionProduct
NI330447900 Frigidaire Oven Screw
NI319224001 Frigidaire Screw
NIASCREW, M4 X 8
1MAIN TOP, ASSEMBLY, BLACK, W/STNLSS TRIM
2KNOB, D SHAFT, STAINLESS
3KNOB
45304534155 Frigidaire Lamp
5SEALING SOCKET, D SHAFT
6SEALING SOCKET, H SHAFT
7SUPPORT, SURFACE SWITCH
8SWITCH
95304527965 Frigidaire Switch
105304534153 Frigidaire Switch
11HOUSING, SURFACE SWITCH
12INSULATION, THERMAL, 4 ZONE INNER
13INSULATION, CONTROL BOX
