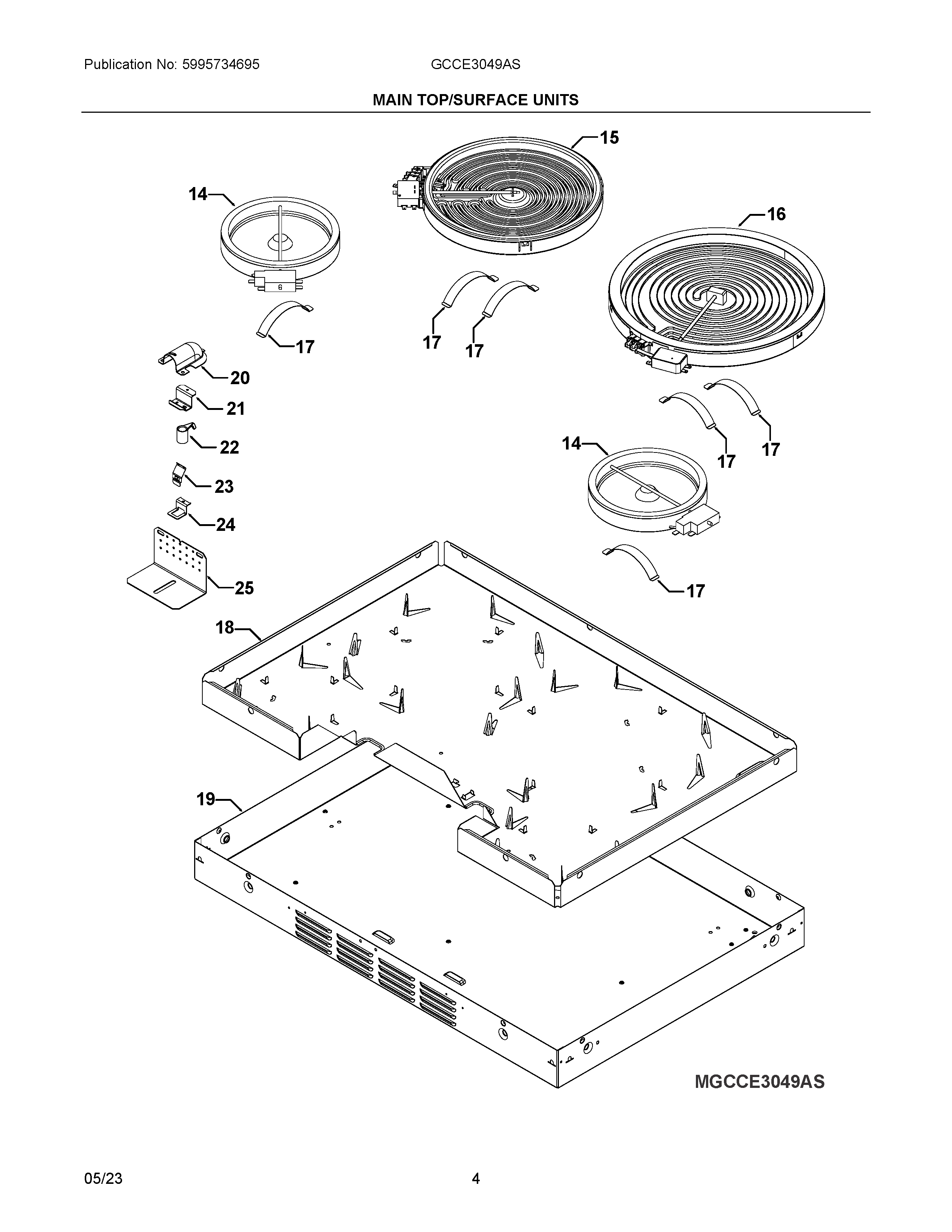

GCCE3049AS 03 – MAIN TOP/SURFACE UNITS

GCCE3049AS 03 – MAIN TOP/SURFACE UNITS

Written by

in

GCCE3049AS 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NIA5308014215 Frigidaire Oven Screw
NIHARNESS, BOX & CABLE, POWER CONNECT
NI202855101 Frigidaire Holder
NIHARNESS, WIRING, MAIN
NIA330447900 Frigidaire Oven Screw
NIASCREW, M4
NIA305338602 Frigidaire Screw
NI305452800 Frigidaire Screw
14A02843501 Frigidaire Element
15316530001 Frigidaire Oven Element
16316282101 Frigidaire Oven Element
17387372900 Frigidaire SPRING
18BOX, SUPPORT, INNER, ELEMENT
19BOX, BURNER, OUTER, 30"
20COVER, ELBOW, BOX & CABLE
215304518258 Frigidaire Bracket
22BRACKET, SUPPORT, PLASTIC
23387174602 Frigidaire Oven Bracket
24387683300 Frigidaire Bracket
25BRACKET
