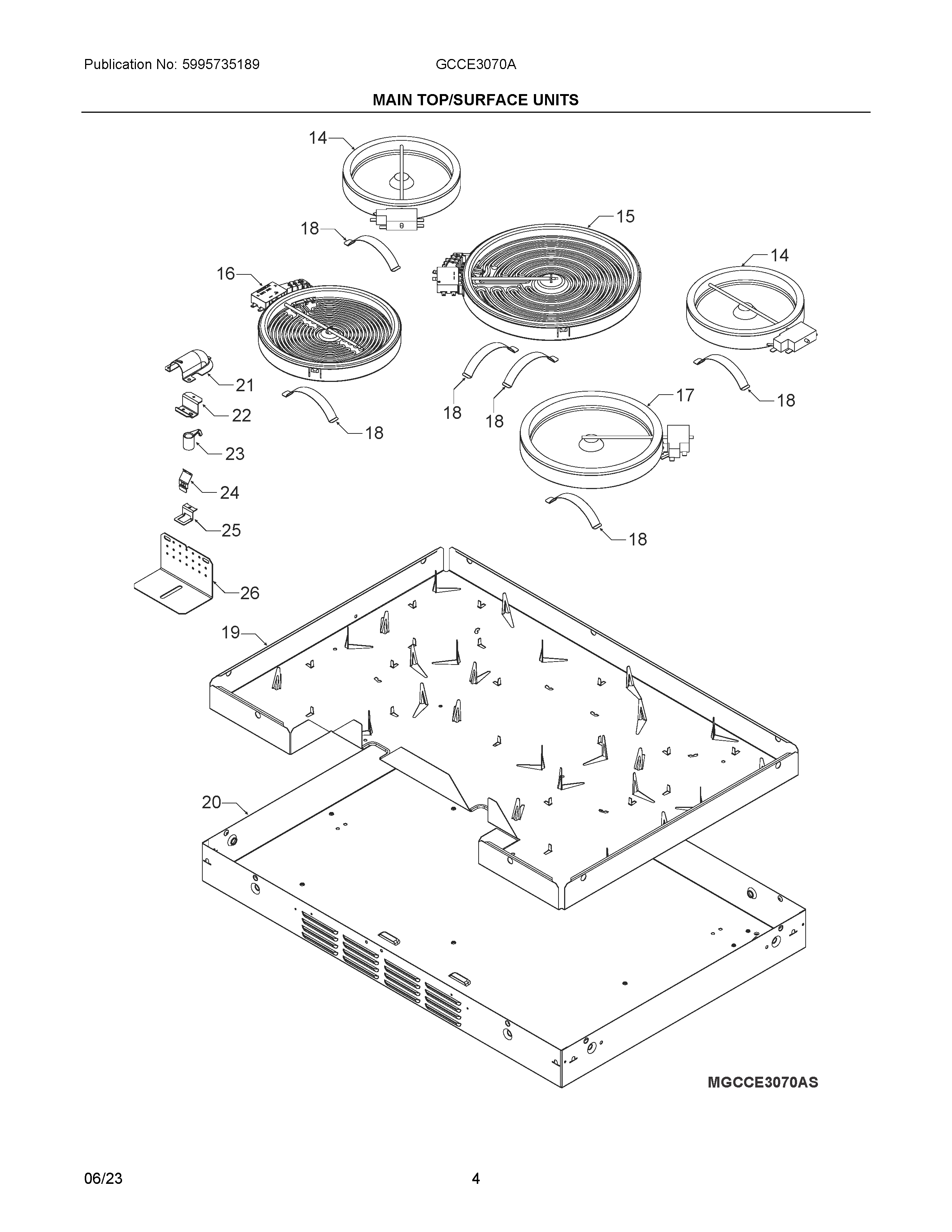

GCCE3070AD 03 – MAIN TOP/SURFACE UNITSadmin2025-04-26T09:28:34+00:00GCCE3070AD 03 – MAIN TOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NIA | 5308014215 Frigidaire Oven Screw |
| NI | HARNESS, BOX & CABLE, POWER CONNECT |
| NI | 202855101 Frigidaire Holder |
| NI | HARNESS, WIRING, MAIN |
| NIA | 330447900 Frigidaire Oven Screw |
| NIA | SCREW, M4 |
| NIA | 305338602 Frigidaire Screw |
| NI | 305452800 Frigidaire Screw |
| 14 | A02843501 Frigidaire Element |
| 15 | 316530001 Frigidaire Oven Element |
| 16 | 318198952 Frigidaire Oven Element |
| 17 | 374063622 Frigidaire Oven Element |
| 18 | 387372900 Frigidaire SPRING |
| 19 | BOX, SUPPORT, INNER, ELEMENT |
| 20 | BOX, BURNER, OUTER, 30" |
| 21 | COVER, ELBOW, BOX & CABLE |
| 22 | 5304518258 Frigidaire Bracket |
| 23 | BRACKET, SUPPORT, PLASTIC |
| 24 | 387174602 Frigidaire Oven Bracket |
| 25 | 387683300 Frigidaire Bracket |
| 26 | BRACKET |
