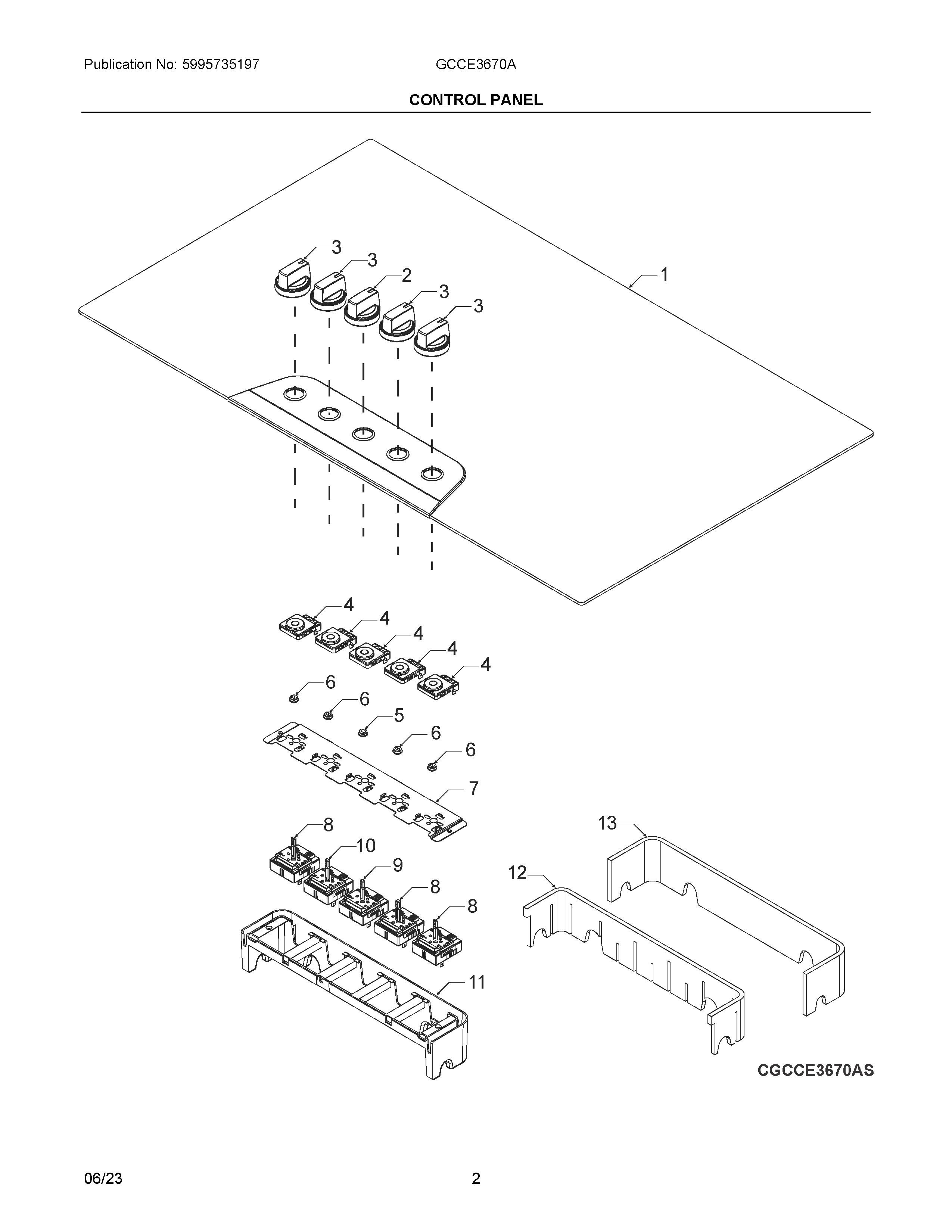

GCCE3670AD 02 – CONTROL PANEL

GCCE3670AD 02 – CONTROL PANEL

Written by

in

GCCE3670AD 02 – CONTROL PANEL

Products

PositionProduct
NI330447900 Frigidaire Oven Screw
NIASCREW, M4 X 8
NI319224001 Frigidaire Screw
15304536525 Frigidaire Main Top,Assembly,Black Sst
2KNOB, D SHAFT, BLACK STAINLESS
3KNOB, H SHAFT, BLACK STAINLESS
45304534155 Frigidaire Lamp
5SEALING SOCKET, D SHAFT
6SEALING SOCKET, H SHAFT
7SUPPORT, SURFACE SWITCH
8SWITCH
95304527965 Frigidaire Switch
105304534153 Frigidaire Switch
11HOUSING, SURFACE SWITCH
12INSULATION, THERMAL, 5 ZONE INNER
13INSULATION, CONTROL BOX
