GCCG3048AS 02 – COOK TOP

GCCG3048AS 02 – COOK TOP

Written by

in

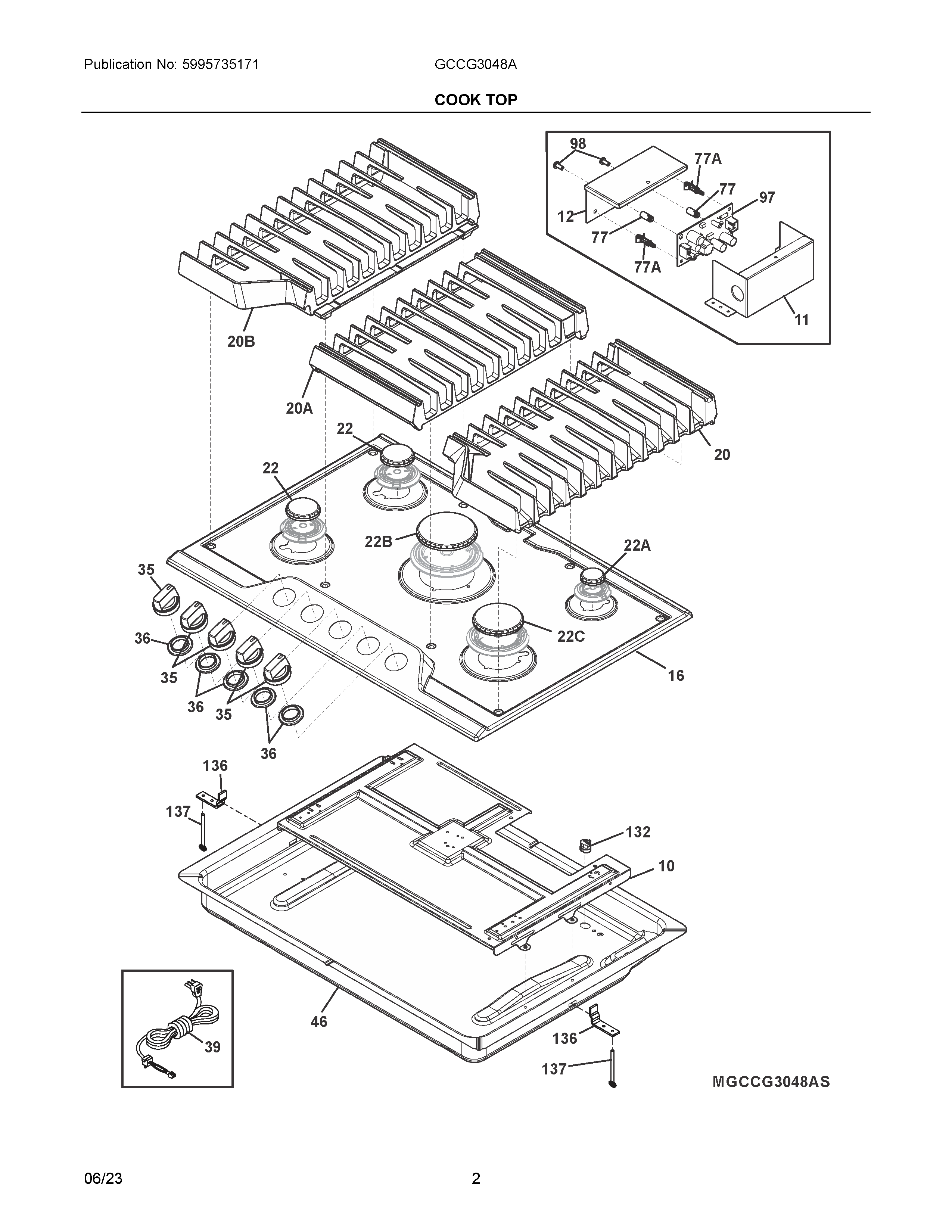

GCCG3048AS 02 – COOK TOP

Products

PositionProduct
NI305338604 Frigidaire Screw
NI305338602 Frigidaire Screw
NIA305452800 Frigidaire Screw
10SHIELD, MAIN HEAT
11SHIELD, HEAT, SMPS BOARD
12COVER, SMPS BOARD
16MAINTOP, ASSEMBLY, STAINLESS
20GRATE
20BGRATE, BURNER, LEFT SIDE
20A5304533637 Frigidaire Grate
22C5304533619 Frigidaire Range Cap
225304533596 Frigidaire Range Cap
22A5304533595 Frigidaire Range Cap Assembly
22B5304533597 Frigidaire Range Cap Assembly
35KNOB
36COVER, LED
39305574902 Frigidaire Power Cord
46BOX, BURNER
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
975304527657 Frigidaire PC Board
98SCREW, M4
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
