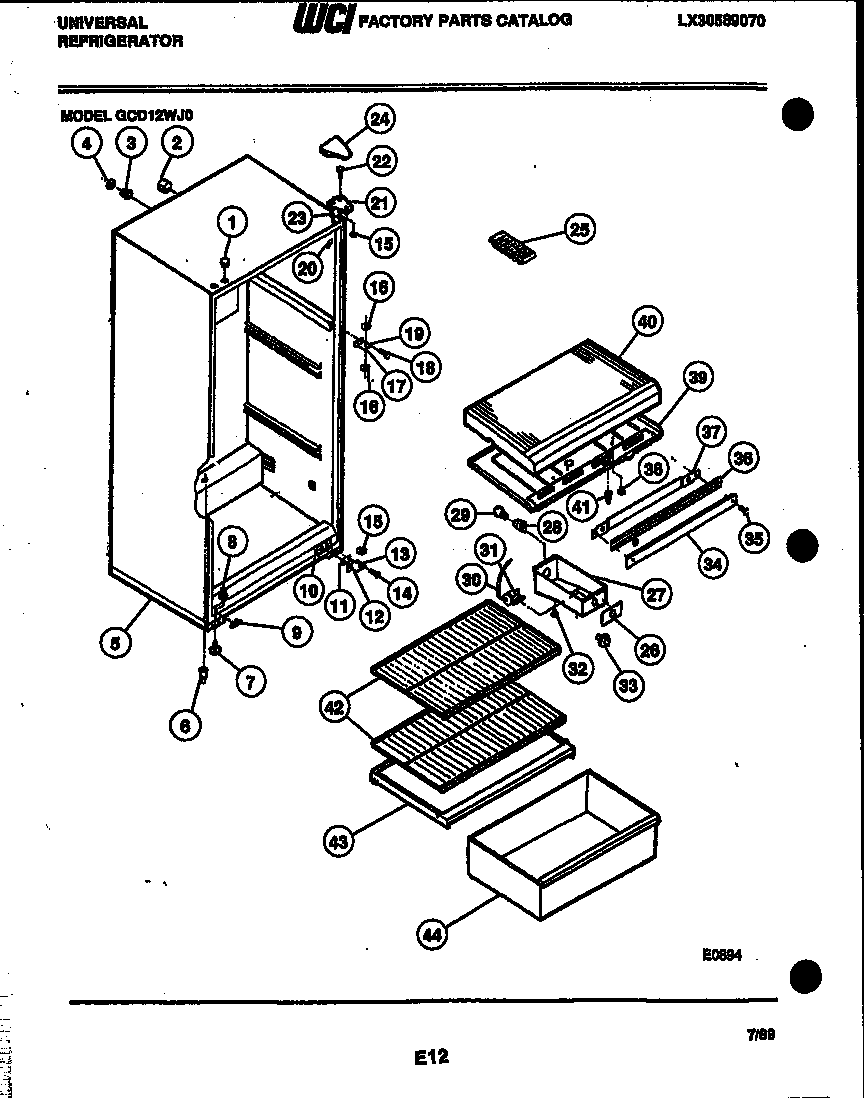

GCD12WJD0 03 – CABINET PARTS

Products

Position	Product
1	WCI G174747-10
1	WCI G174747-08
1	WCI G174747–01
1	WCI G174747-09
1	WCI G174747-11
2	TUBE, INSULATION (2)
3	WCI G174733
4	WCI G174734
5	BASE-CABINET
6	CLIP (4)
7	LEG-LEVELING (2)
8	NUT, ANCHOR (2)
9	WCI G166912
10	TAPPING, PLATE (2)
11	SHIM, HINGE
12	BRACKET, HINGE, LOWER
13	5303001321 Frigidaire Refrigerator Lower Hinge Pin
15	WCI G103903
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
19	BRACKET, HINGE CENTER
20	TRIM, COFFEE
20	TRIM (4)
20	TRIM-CAB CORNER-AVOC
20	TRIM CORNER-ALMOND
20	TRIM, WHEAT
21	TAPPING PLATE (2)
21	BRACKET, TOP HINGE
22	241710601 Frigidaire Refrigerator Screw
23	WCI G183861
24	COVER HINGE, COFFEE
24	WCI G18358-01
24	COVER HINGE, WHEAT
24	COVER, TOP HINGE, AVOCADO
24	COVER, TOP HINGE, ALMOND
25	215667501 Frigidaire Refrigerator Ice Tray Primary
26	WCI 3001339
27	5304455650 Frigidaire Refrigerator Screw
27	WCI G174655-19
28	SOCKET LIGHT
29	316538904 Frigidaire Oven Lamp Light
30	TUBE
31	WCI G107080
31	WCI G162205-09
32	WCI G176554-01
33	WCI 3001335
33	SWITCH SLIDE
34	WCI 3916135
34	WCI 3200465
34	WCI 3916133
34	WCI 3916132
34	WCI 3916134
35	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
35	SCREW, BRACKET MOUNTING (4)
35	WASHER (2)
36	WCI G187921
37	CLAMP, MULLION MOUNTING
38	SCREW (5)
39	WCI 3016980
40	WCI G163220
41	5309918806 Frigidaire Refrigerator Light Switch Door
42	WCI G172172-01
43	COVER-CRISPER
44	WCI G162973-32
